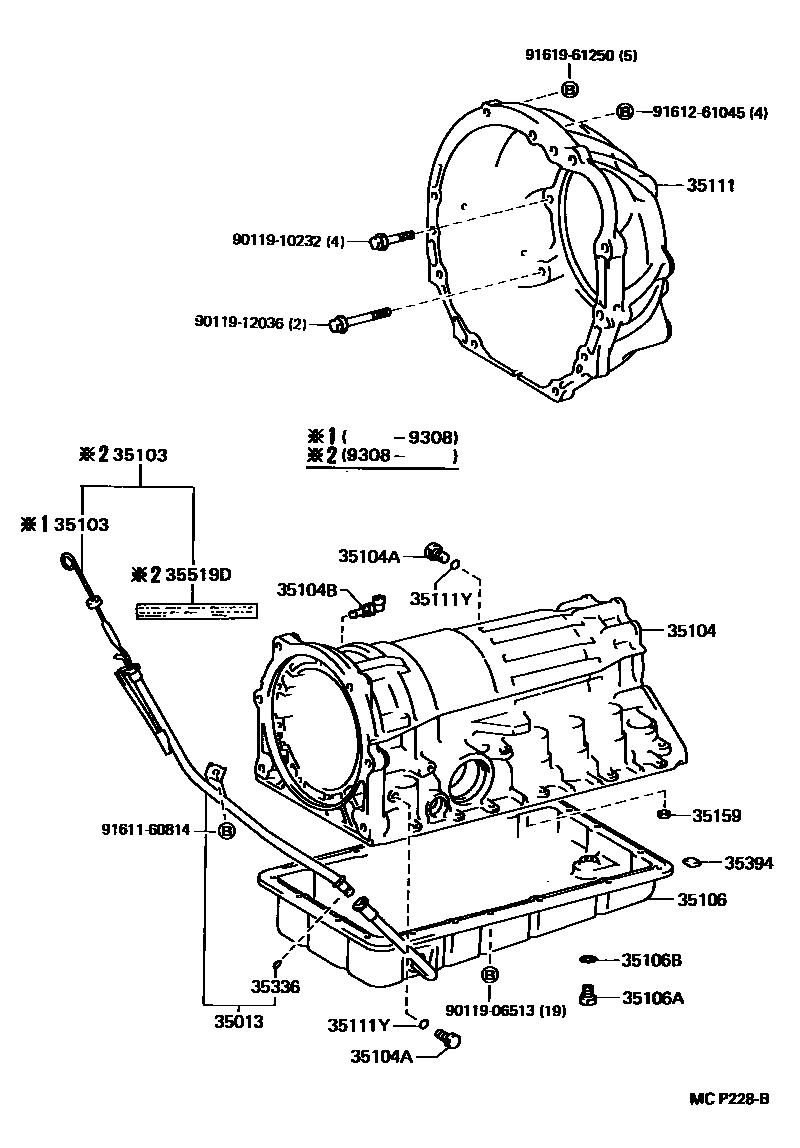

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A350E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30300iJZS147199301-199508

main35013-30380iJZS147199508-199708

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30180iJZS147199508-199708

main35103-30301iJZS147199301-199308

main35103-30302iJZS147199308-199508

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30170iJZS147199301-199508

main35104-30180iJZS147199508-199708

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iJZS147199301-199708

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iJZS147199301-199708

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-24020iJZS147199308-199508

main35106-30130iJZS147199301-199308

main35106-30140iJZS147199508-199708

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10012iJZS147199301-199708

35106BGASKET, DRAIN PLUG (ATM)

main35178-50010iJZS147199301-199708

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-30150iJZS147199301-199708

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iJZS147199301-199708

35159GASKET, BRAKE DRUM

main35159-30010iJZS147199301-199708

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iJZS147199301-199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iJZS147199301-199305

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-24020iJZS147199308-199708

9011906513

main90119-06513

9011910232

main90119-10232

9011912036

main90119-12036

9161160814

main91611-60814

9161261045

main91612-61045

9161961250

main91619-61250

20 parts on this diagram · 2 diagrams in section
