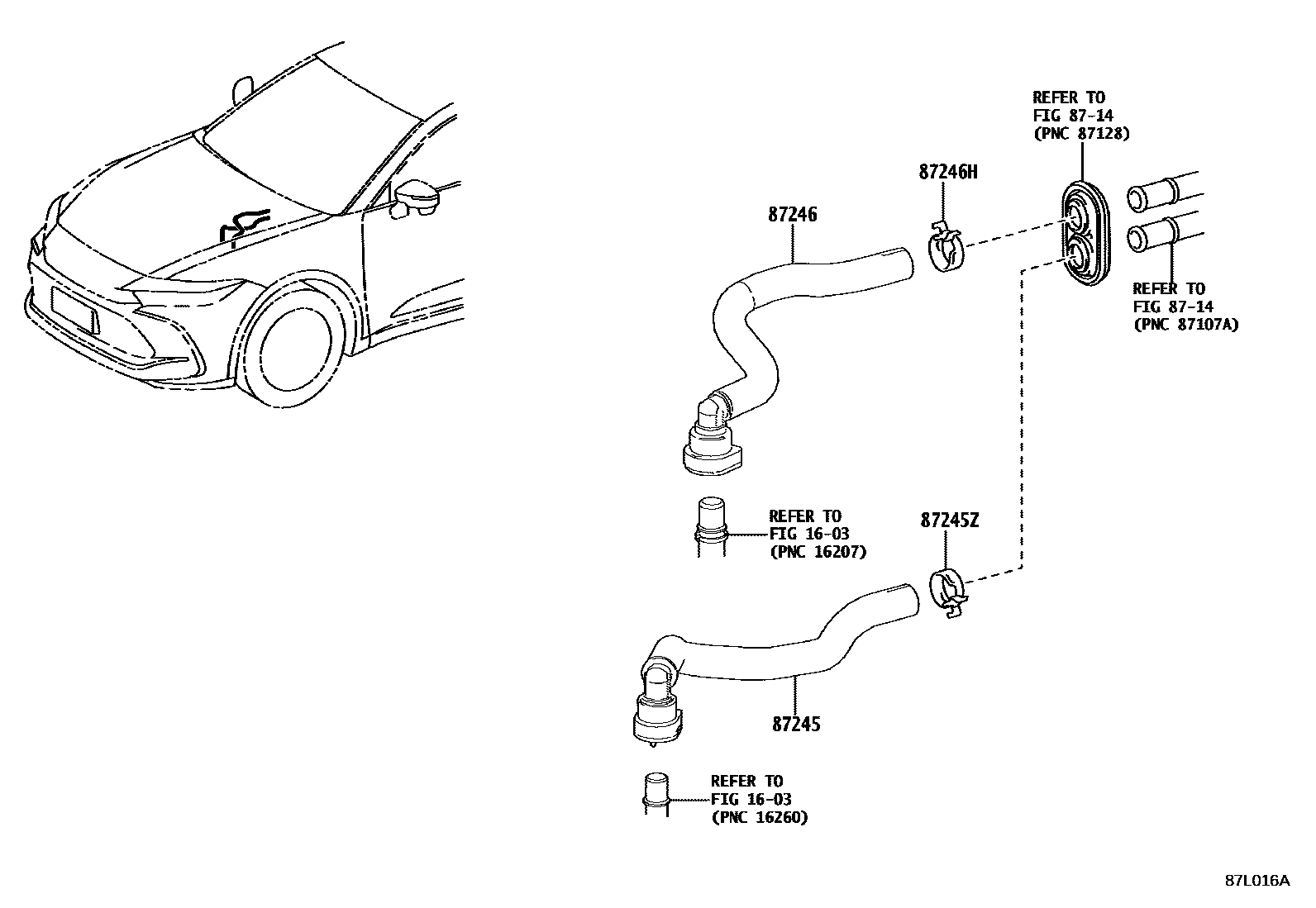

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-30800iTZSH35202301

main87209-30810iAZSH35202301

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501iAZSH35202301

87246HOSE, HEATER WATER, OUTLET

main87209-30820iAZSH35202301

main87245-30D00iTZSH35202301

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96138-42501iAZSH35202301

6 parts on this diagram · 2 diagrams in section
