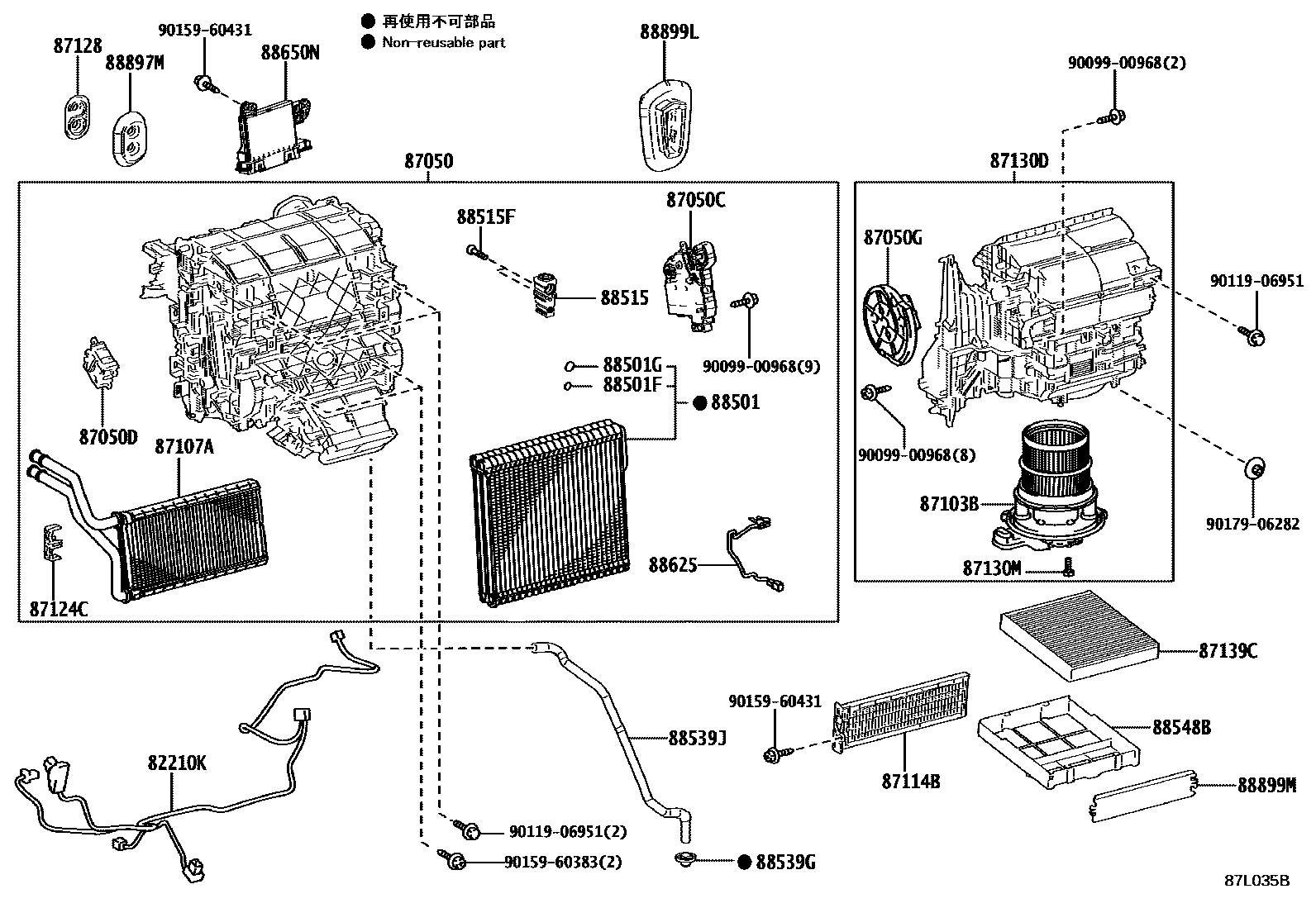

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1W(KOREA SPEC)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33120supersedes 82212-42050iAZSH35,TZSH35202301

KOREA SPEC

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33F90supersedes 87050-33F70iAZSH35,TZSH35202301

KOREA SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42240supersedes 87106-48170iAZSH35,TZSH35202301

KOREA SPEC

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48200iAZSH35,TZSH35202301

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-33320supersedes 87106-58050iAZSH35,TZSH35202301

KOREA SPEC

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33160supersedes 87103-58080iAZSH35,TZSH35202301

KOREA SPEC

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33130iAZSH35,TZSH35202301

87114BCOVER, HEATER

main87114-33050iAZSH35,TZSH35202301

87124CCLAMP, HEATER

main87124-33070iAZSH35,TZSH35202301

87128GROMMET, HEATER

main87128-28010iAZSH35,TZSH35202301

87130DBLOWER ASSY

main87130-33280supersedes 87130-47290iAZSH35,TZSH35202301

KOREA SPEC

87139CFILTER, CLEAN AIR

main87139-76020iAZSH35,TZSH35202301

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iAZSH35,TZSH35202301

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAZSH35,TZSH35202301

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAZSH35,TZSH35202301

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110supersedes 88515-33080iAZSH35,TZSH35202301

KOREA SPEC

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAZSH35,TZSH35202301

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iAZSH35,TZSH35202301

88539JHOSE, DRAIN COOLER

main88539-30A60iAZSH35,TZSH35202301

88548BCASE, AIR FILTER

main88899-76020iAZSH35,TZSH35202301

88625THERMISTOR, COOLER, NO.1

main88620-28050iAZSH35,TZSH35202301

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-3AF40supersedes 88650-3AG00iTZSH35202301-202310

USA MID LUX PACKAGE

main886H0-30010supersedes 886H0-30020iTZSH35202310

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iAZSH35,TZSH35202301

88899LPARTS, COOLING UNIT

main88899-33080iAZSH35,TZSH35202301

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAZSH35,TZSH35202301

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

30 parts on this diagram · 2 diagrams in section
