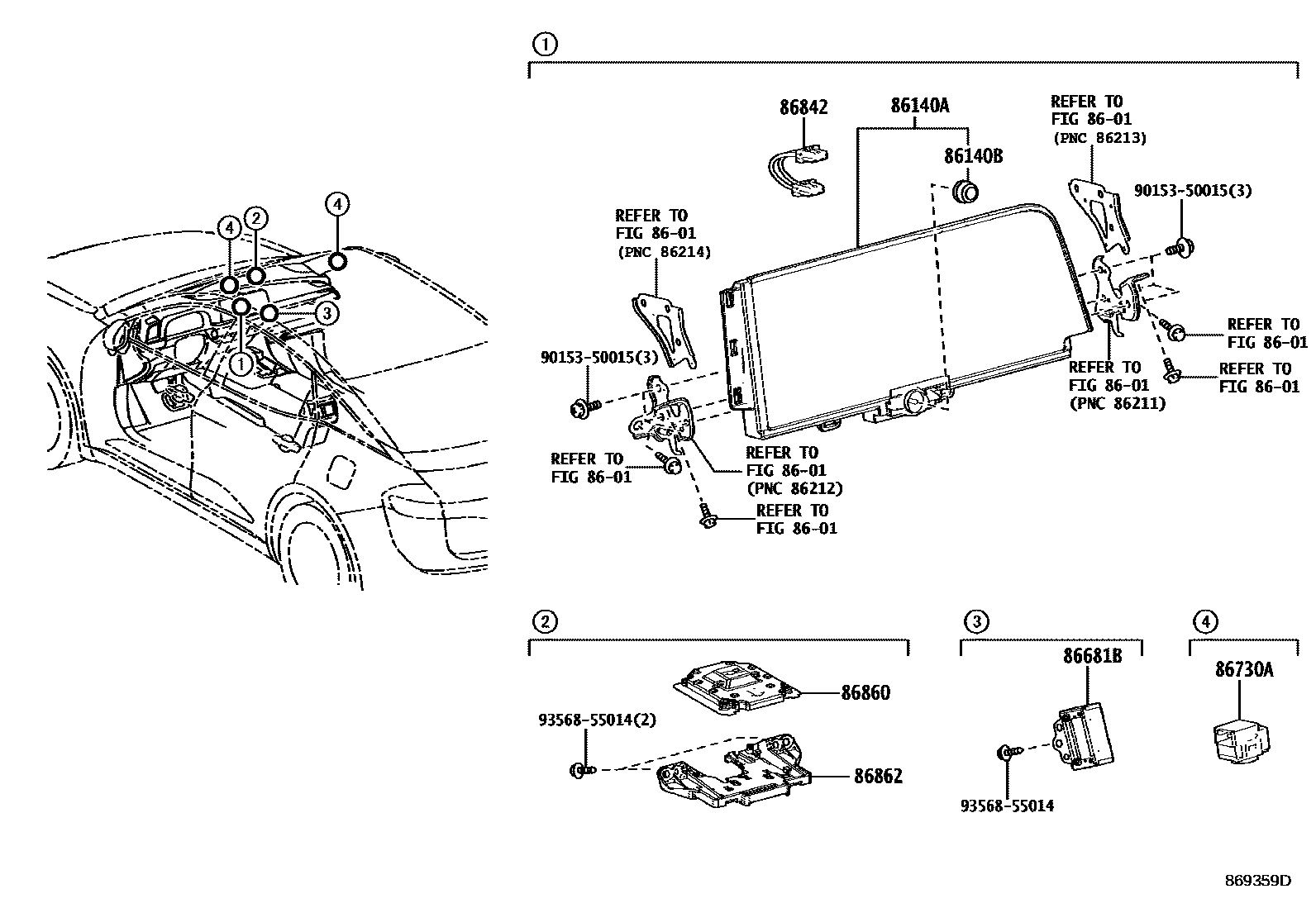

NAVIGATION & FRONT MONITOR DISPLAY

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-30330supersedes 86100-30340iAZSH35202301-202310

DENSO TEN,CANADA SPEC

main86100-30350supersedes 86100-30360iAZSH35202301-202310

DENSO TEN,CANADA SPEC&USA MID LUX PACKAGE

main86100-30400supersedes 86100-30340iAZSH35202301-202310

DENSO TEN,KOREA SPEC&USA MID LUX PACKAGE

main86100-30490supersedes 86100-30770iTZSH35202310-202404

DENSO TEN,KOREA SPEC&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & T2

main86100-30740supersedes 86100-30760iTZSH35202310-202404

DENSO TEN,CANADA SPEC&AUDIO-12.3INCH & 6SPEAKER & PREMIUM

main86100-30750supersedes 86100-30770iTZSH35202310-202404

DENSO TEN,CANADA SPEC&USA MID LUX PACKAGE

main86100-30A40supersedes 86100-30C10iAZSH35202404

DENSO TEN,KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2

main86100-30A50supersedes 86100-30C20iTZSH35202404

DENSO TEN,KOREA SPEC

main86100-30B90supersedes 86100-30C10iAZSH35202404

DENSO TEN,CANADA SPEC

main86100-30C00supersedes 86100-30C20iTZSH35202404

DENSO TEN,CANADA SPEC

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-23066iAZSH35,TZSH35202301-202310

86681BDIVIDER, ANTENNA

main86681-11010iAZSH35,TZSH35202301

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iAZSH35,TZSH35202301

86842WIRE, NAVIGATION, NO.1

main86842-78151iAZSH35,TZSH35202301-202310

KOREA SPEC

86860ANTENNA ASSY, NAVIGATION

main86880-42030iAZSH35,TZSH35202301

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAZSH35,TZSH35202301

9015350015

main90153-50015

9356855014

main93568-55014

10 parts on this diagram · 1 diagram in section
