TIRE PRESSURE WARNING SYSTEM

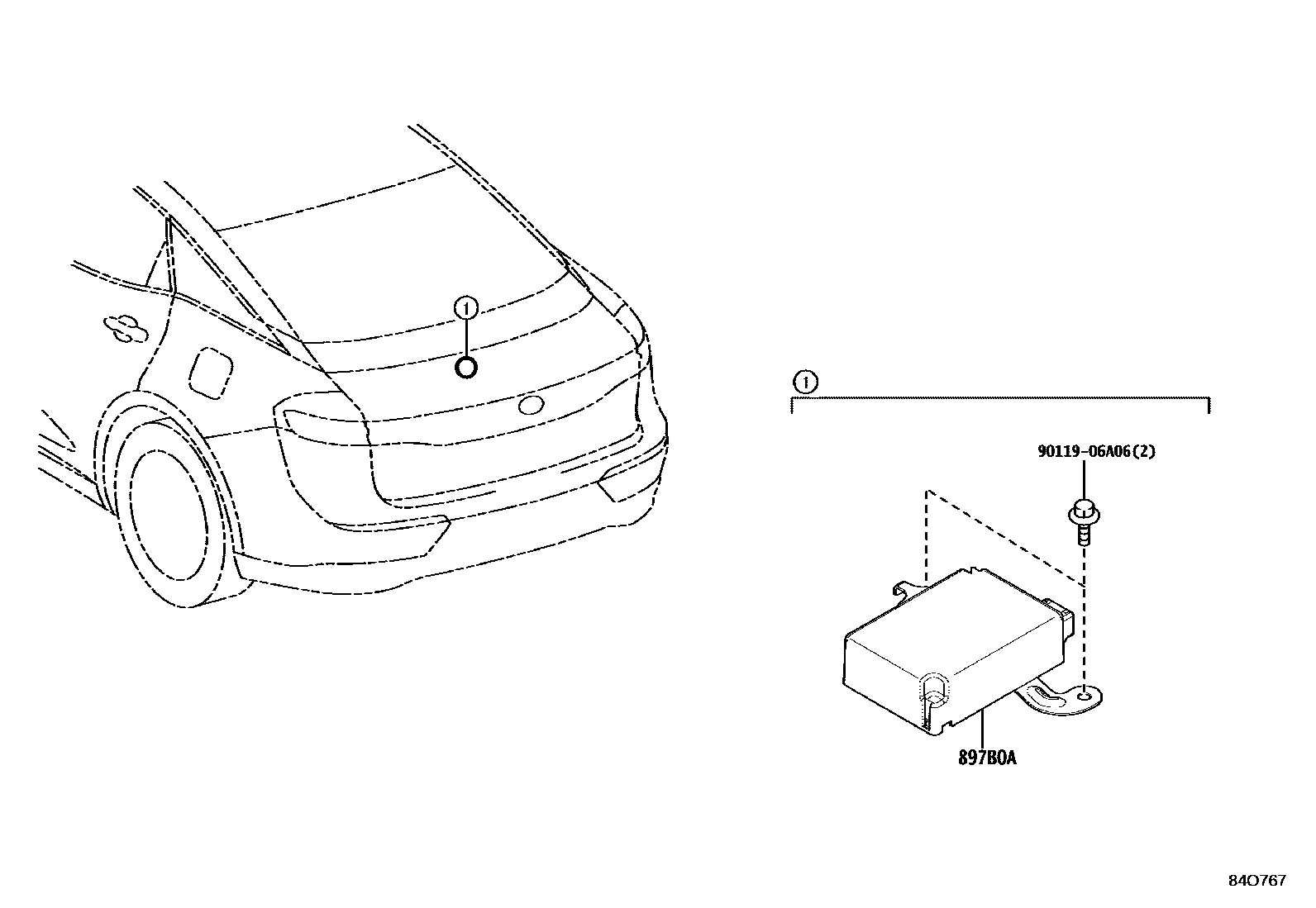

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-30240supersedes 897B0-30220i202301-202404

KOREA SPEC

main897B0-30360supersedes 897B0-30340i202404

KOREA SPEC

9011906A06

main90119-06A06

2 parts on this diagram · 1 diagram in section
