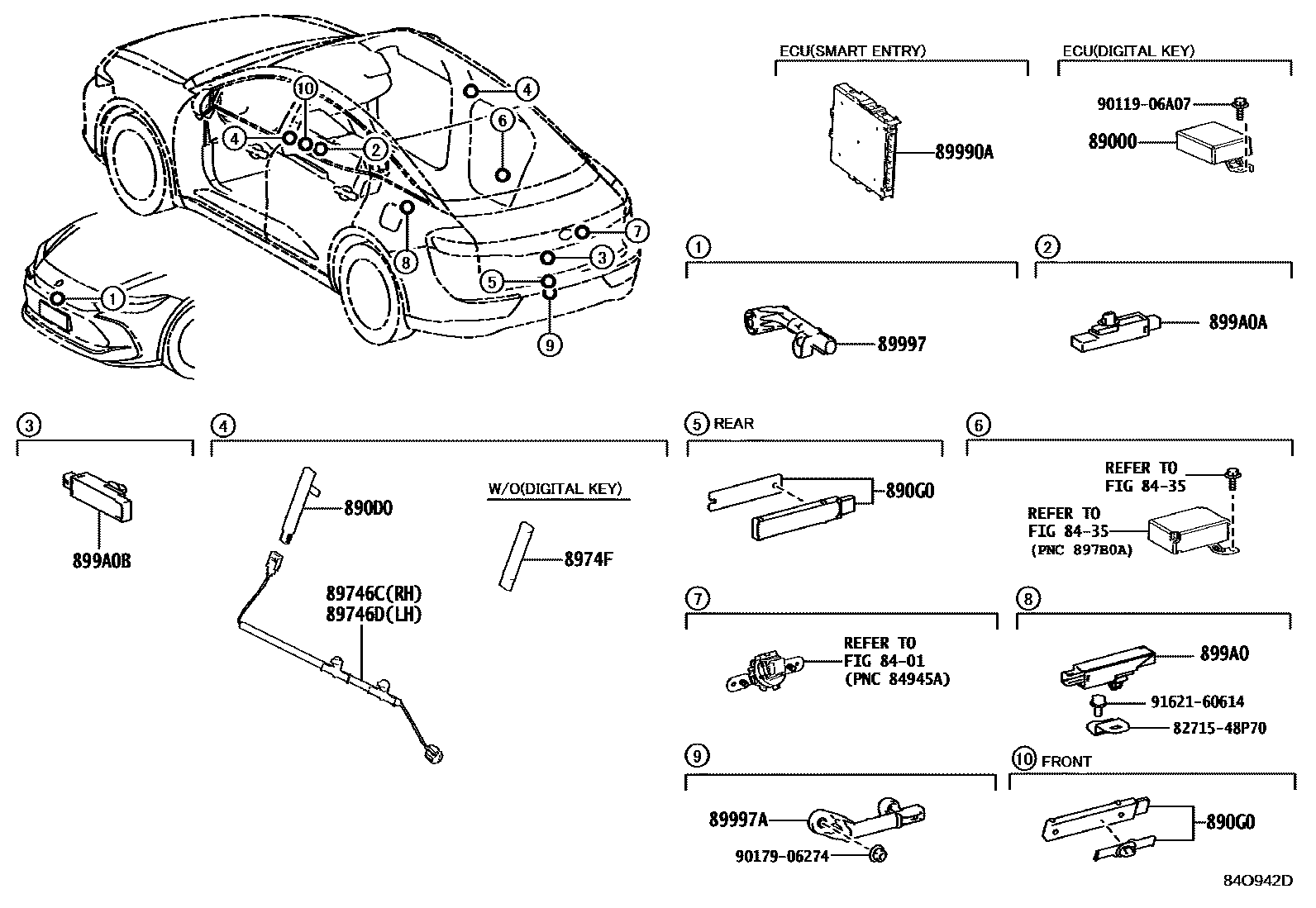

WIRELESS DOOR LOCK

8401

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-30010iTZSH35202301-202302

US DRIVER SUPPORT PACKAGE

main89000-30011iTZSH35202303-202403

US DRIVER SUPPORT PACKAGE

main89000-30140iTZSH35202404

US DRIVER SUPPORT PACKAGE

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2iTZSH35202301

US DRIVER SUPPORT PACKAGE

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010iTZSH35202301

REAR

main890G0-V1010iTZSH35202301

US DRIVER SUPPORT PACKAGE,FRONT

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30220iTZSH35202301

US DRIVER SUPPORT PACKAGE

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30160iTZSH35202301

US DRIVER SUPPORT PACKAGE

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iTZSH35202301

89990ACOMPUTER ASSY, SMART KEY

main899H0-30070supersedes 899H0-30080iTZSH35202301-202404

USA MID LUX PACKAGE

main899H0-30180iAZSH35,TZSH35202404

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAZSH35202301-202404

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iTZSH35202301

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-42030iAZSH35,TZSH35202301

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iAZSH35,TZSH35202301

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH35,TZSH35202301

8271548P70BRACKET,WIRING HARNESS CLAMP

main82715-48P70

9011906A07

main90119-06A07

9017906274

main90179-06274

9162160614

main91621-60614

18 parts on this diagram · 1 diagram in section
