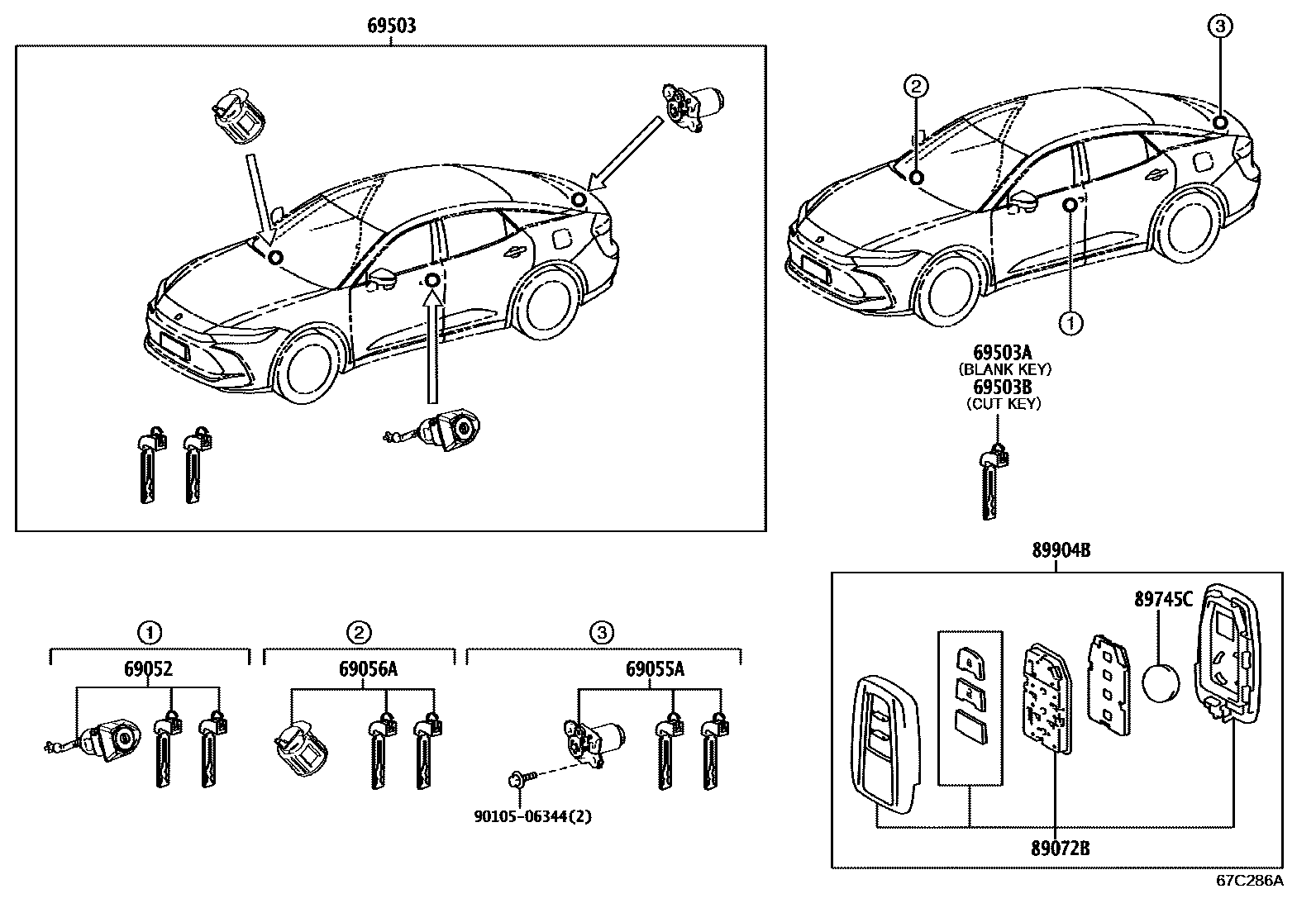

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30360iAZSH35,TZSH35202301

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30530iAZSH35,TZSH35202301

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30310iAZSH35,TZSH35202301

69503CYLINDER SET, LOCK

main69005-30J70iAZSH35,TZSH35202301

69503AKEY, BLANK

main69515-K0020iAZSH35,TZSH35202301

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iAZSH35,TZSH35202301

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-30A40iAZSH35,TZSH35202301

89745CBATTERY, TRANSMITTER

main89745-K0010iAZSH35,TZSH35202301

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-30190iAZSH35,TZSH35202301-202406

main8990H-30191iAZSH35,TZSH35202407

9010506344

main90105-06344

10 parts on this diagram · 1 diagram in section
