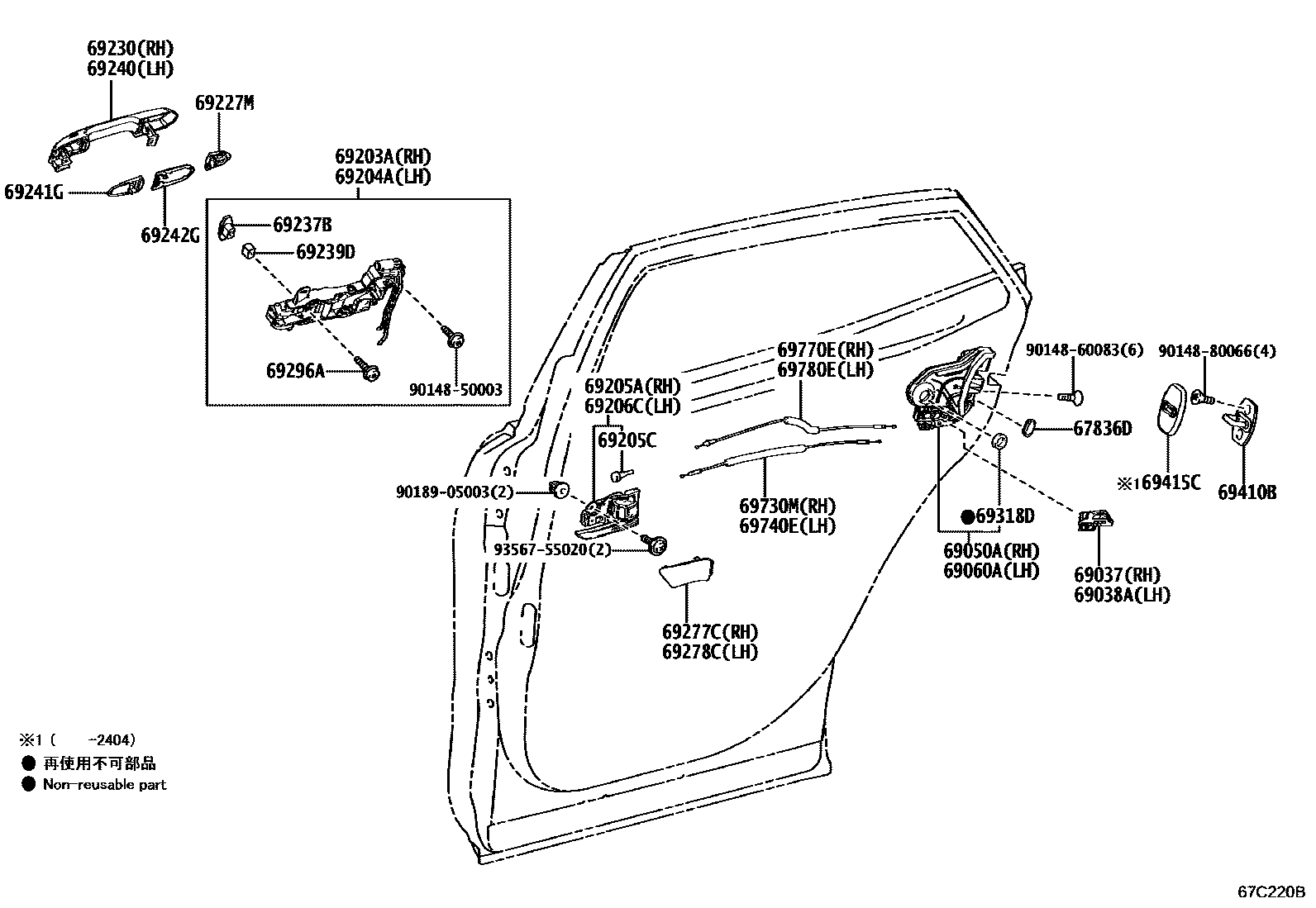

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK,202
PRECIOUS WHITE PEARL,090 ,2XW
USA MID LUX PACKAGE,GRAY ME.,1G3
PRECIOUS METAL,1L5 ,2ZA
MASSIVE GRAY,1L6 ,2XY
EMOTIONAL RED 2,2YZ ,3U5
PRECIOUS BRONZE,2XZ ,4Y6
PRECIOUS WHITE PEARL,090
PRECIOUS METAL,1L5
BLACK,202
EMOTIONAL RED 2,3U5
PRECIOUS BRONZE,4Y6
MASSIVE GRAY,1L6
BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA
BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK,202
PRECIOUS WHITE PEARL,090 ,2XW
USA MID LUX PACKAGE,GRAY ME.,1G3
PRECIOUS METAL,1L5 ,2ZA
MASSIVE GRAY,1L6 ,2XY
EMOTIONAL RED 2,2YZ ,3U5
PRECIOUS BRONZE,2XZ ,4Y6
PRECIOUS WHITE PEARL,090
PRECIOUS METAL,1L5
BLACK,202
EMOTIONAL RED 2,3U5
PRECIOUS BRONZE,4Y6
MASSIVE GRAY,1L6
BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA
BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
