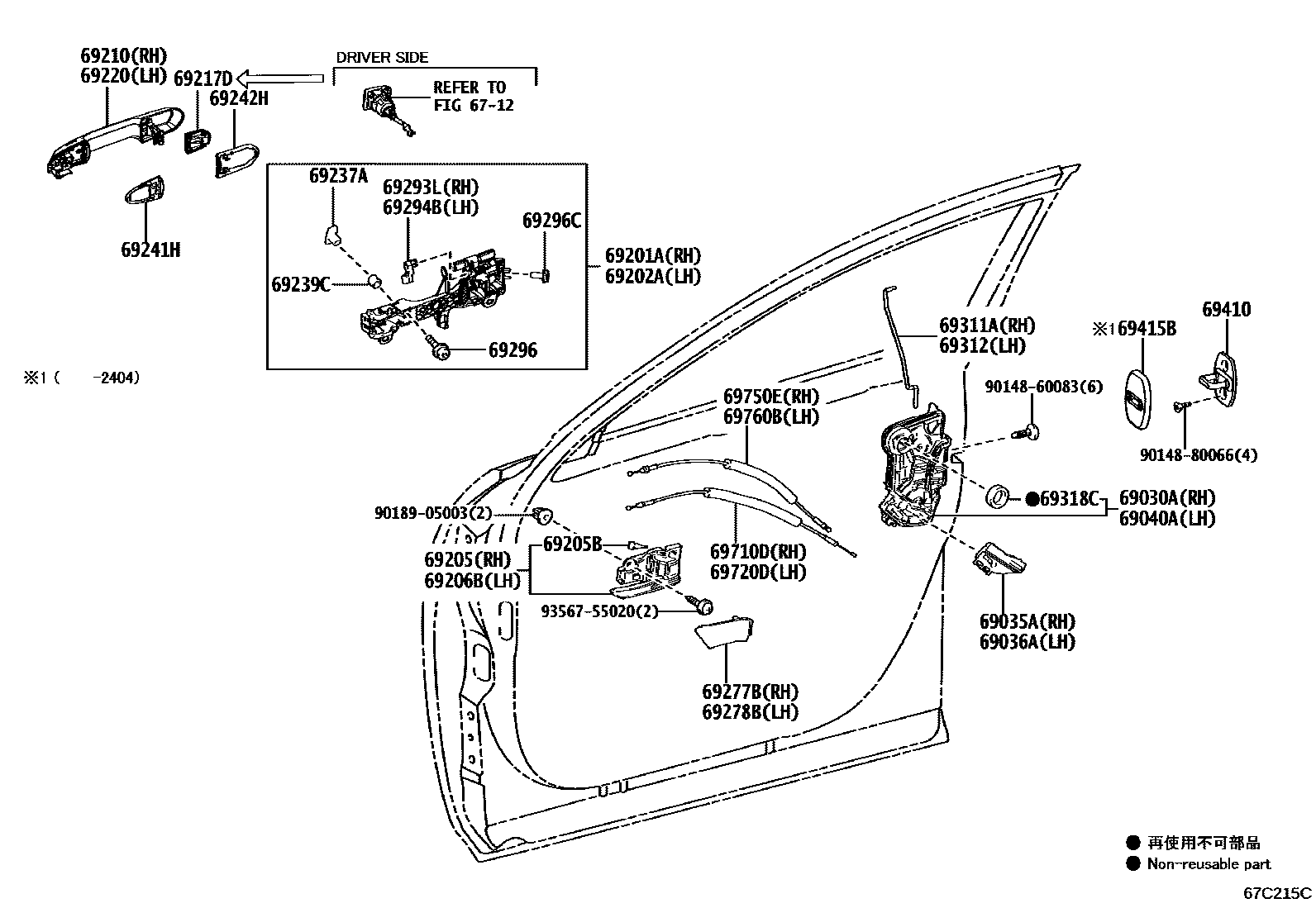

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-53120iAZSH35,TZSH35202301

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iAZSH35,TZSH35202301

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iAZSH35,TZSH35202301

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-53130iAZSH35,TZSH35202301

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100iAZSH35,TZSH35202301

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090iAZSH35,TZSH35202301

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30230-A0iAZSH35202310

FROMAGE,TRIM0#

main69205-30230-C0iAZSH35,TZSH35202310

BLACK,TRIM2#

main69205-33140-A0iAZSH35202305-202310

FROMAGE,TRIM0#

main69205-33140-C0iAZSH35,TZSH35202305-202310

BLACK,TRIM2#

main69207-30050-A0iAZSH35,TZSH35202301-202305

FROMAGE,TRIM0#

main69207-30050-C0iAZSH35,TZSH35202301-202305

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iAZSH35,TZSH35202301

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30230-A0iAZSH35202310

FROMAGE,TRIM0#

main69206-30230-C0iAZSH35,TZSH35202310

BLACK,TRIM2#

main69206-33150-A0iAZSH35202305-202310

FROMAGE,TRIM0#

main69206-33150-C0iAZSH35,TZSH35202305-202310

BLACK,TRIM2#

main69208-30030-A0iAZSH35,TZSH35202301-202305

FROMAGE,TRIM0#

main69208-30030-C0iAZSH35,TZSH35202301-202305

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-42121-20iTZSH35202301

BLACK,1L6 ,202

main69210-42121-A3iAZSH35,TZSH35202301

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42121-B1iAZSH35,TZSH35202301-202404

GRAY ME.,1G3

main69210-42121-B6iAZSH35,TZSH35202301

PRECIOUS METAL,1L5 ,2ZA

main69210-42121-B7iAZSH35,TZSH35202301

MASSIVE GRAY,1L6 ,2XY

main69210-42121-D0iAZSH35,TZSH35202301-202504

EMOTIONAL RED 2,2YZ ,3U5

main69210-42121-E1iAZSH35,TZSH35202301

PRECIOUS BRONZE,2XZ ,4Y6

main69210-30420-C0iAZSH35,TZSH35202301-202504

BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140iAZSH35,TZSH35202301

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-42171-20iTZSH35202301

BLACK,1L6 ,202

main69210-42171-A3iAZSH35,TZSH35202301

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42171-B1iAZSH35,TZSH35202301-202404

GRAY ME.,1G3

main69210-42171-B6iAZSH35,TZSH35202301

PRECIOUS METAL,1L5 ,2ZA

main69210-42171-B7iAZSH35,TZSH35202301

MASSIVE GRAY,1L6 ,2XY

main69210-42171-D0iAZSH35,TZSH35202301-202504

EMOTIONAL RED 2,2YZ ,3U5

main69210-42171-E1iAZSH35,TZSH35202301

PRECIOUS BRONZE,2XZ ,4Y6

main69210-30410-C0iAZSH35,TZSH35202301-202504

BODY COLOR-TWO-TONES,BLACK,2NB ,2TB ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iAZSH35,TZSH35202301

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iAZSH35,TZSH35202301

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2iAZSH35,TZSH35202301

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2iAZSH35,TZSH35202301

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30240-A0iAZSH35202301

FROMAGE,TRIM0#

main69277-30240-C2iAZSH35,TZSH35202301

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30240-A0iAZSH35202301

FROMAGE,TRIM0#

main69278-30240-C2iAZSH35,TZSH35202301

BLACK,TRIM2#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAZSH35,TZSH35202301

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAZSH35,TZSH35202301

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2iAZSH35,TZSH35202301

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2iAZSH35,TZSH35202301

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30190iAZSH35,TZSH35202301

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30190iAZSH35,TZSH35202301

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAZSH35,TZSH35202301

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iAZSH35,TZSH35202404

main69410-33030×2iAZSH35,TZSH35202301-202404

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2iAZSH35,TZSH35202301-202404

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-30260iAZSH35,TZSH35202301

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-30260iAZSH35,TZSH35202301

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-30230iAZSH35,TZSH35202301

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-30230iAZSH35,TZSH35202301

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

36 parts on this diagram · 1 diagram in section
