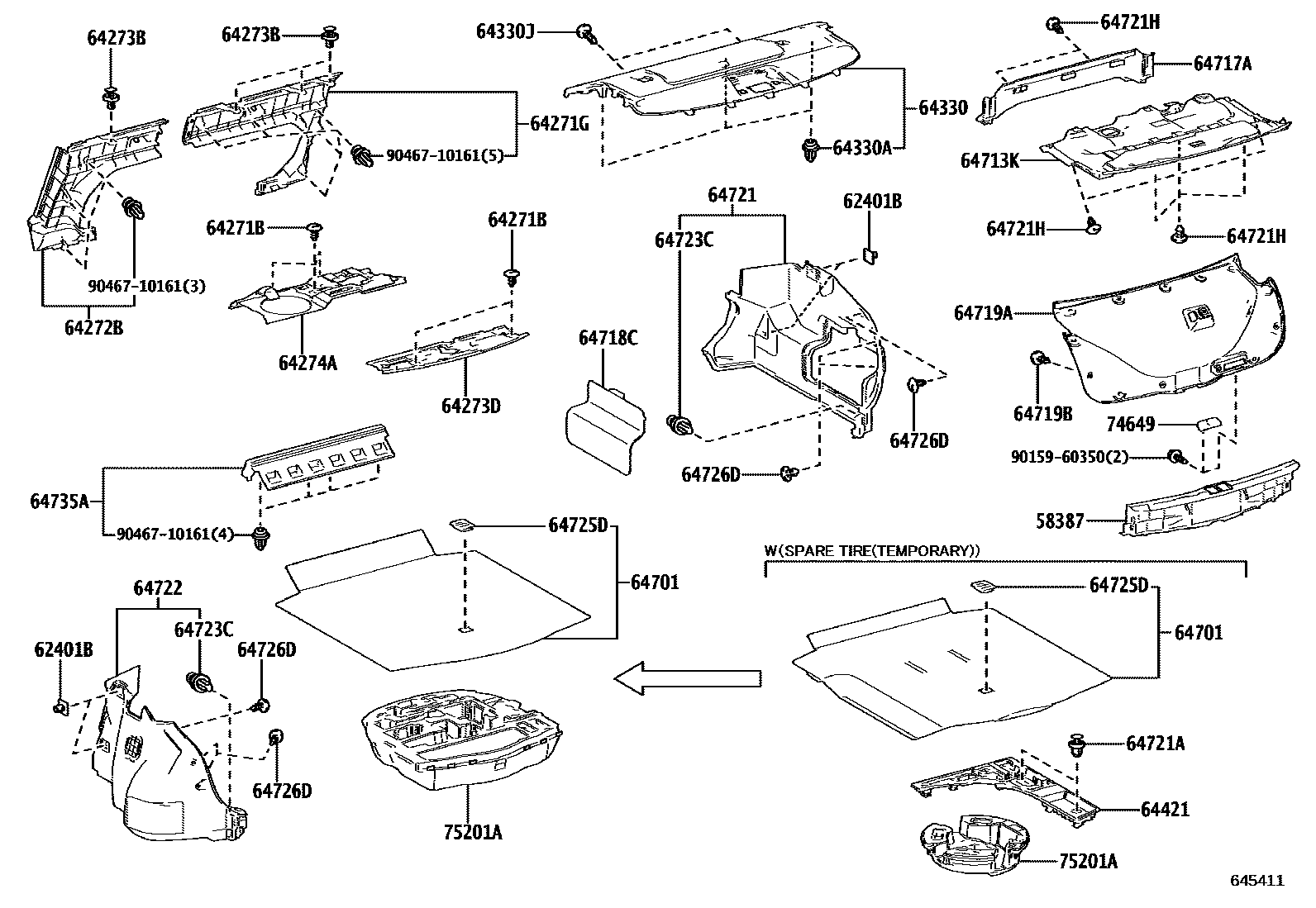

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-30240-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

62401BFASTENER, HOOK

main90530-25010×4iAZSH35,TZSH35202301

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C3×5iAZSH35,TZSH35202301

BLACK

64271GBOARD, ROOM PARTITION, RH

main64271-30230-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64272BBOARD, ROOM PARTITION, LH

main64272-30040-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64273BCLIP

main90467-07220×4iAZSH35,TZSH35202301

64273DPAD, ROOM PARTITION, NO.1

main64273-30240iAZSH35,TZSH35202301

64274APAD, ROOM PARTITION, NO.2

main64274-30260iAZSH35,TZSH35202301

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-30J90-C0iAZSH35202301

BLACK,TRIM0#,2#

main64330-30K00-C1iTZSH35202301

BLACK,TRIM2#

main64330-30J50-C0iAZSH35202301-202310

KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM0#,2#; KOREA SPEC,BLACK,TRIM0#,2#

main64330-30K10-C1iTZSH35202301-202310

KOREA SPEC,BLACK,TRIM2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iAZSH35,TZSH35202301

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05164-C7×2iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT

main64421-30110iAZSH35,TZSH35202301

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-30170-C0supersedes 64701-30190-C0iAZSH35,TZSH35202301

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM0#,2#

64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER

main64713-30220-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30410-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-30120-C0iAZSH35202301

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30510-C0iTZSH35202301-202404

BLACK,TRIM0#,2#

main64719-30490-C0iAZSH35,TZSH35202301-202404

KOREA SPEC,BLACK,TRIM0#,2#

main64719-30500-C0iAZSH35; TZSH35202404

KOREA SPEC,BLACK,TRIM0#,2#; KOREA SPEC,BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C3×14iTZSH35202301-202404

BLACK,TRIM0#,2#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-30350-C0iTZSH35202301-202404

BLACK,TRIM0#,2#

main64721-30430-C0iAZSH35; TZSH35202404

BLACK,TRIM2#; KOREA SPEC,BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07215×2iAZSH35,TZSH35202301

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3×7iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-30280-C0iTZSH35202301-202404

BLACK,TRIM0#,2#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main90467-10161×2iAZSH35,TZSH35202301

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33100iAZSH35,TZSH35202301

64726DCLIP, LUGGAGE TRIM, REAR

main90467-08186-C3×6iTZSH35202301-202404

BLACK,TRIM0#,2#

64735AGARNISH, CENTER BACK RAIL INNER

main64735-30020-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iAZSH35,TZSH35202301

BLACK

75201ABOX, TOOL

main75201-30140supersedes 75201-30170iAZSH35,TZSH35202301

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

9015960350

main90159-60350

9046710161

main90467-10161

30 parts on this diagram · 1 diagram in section
