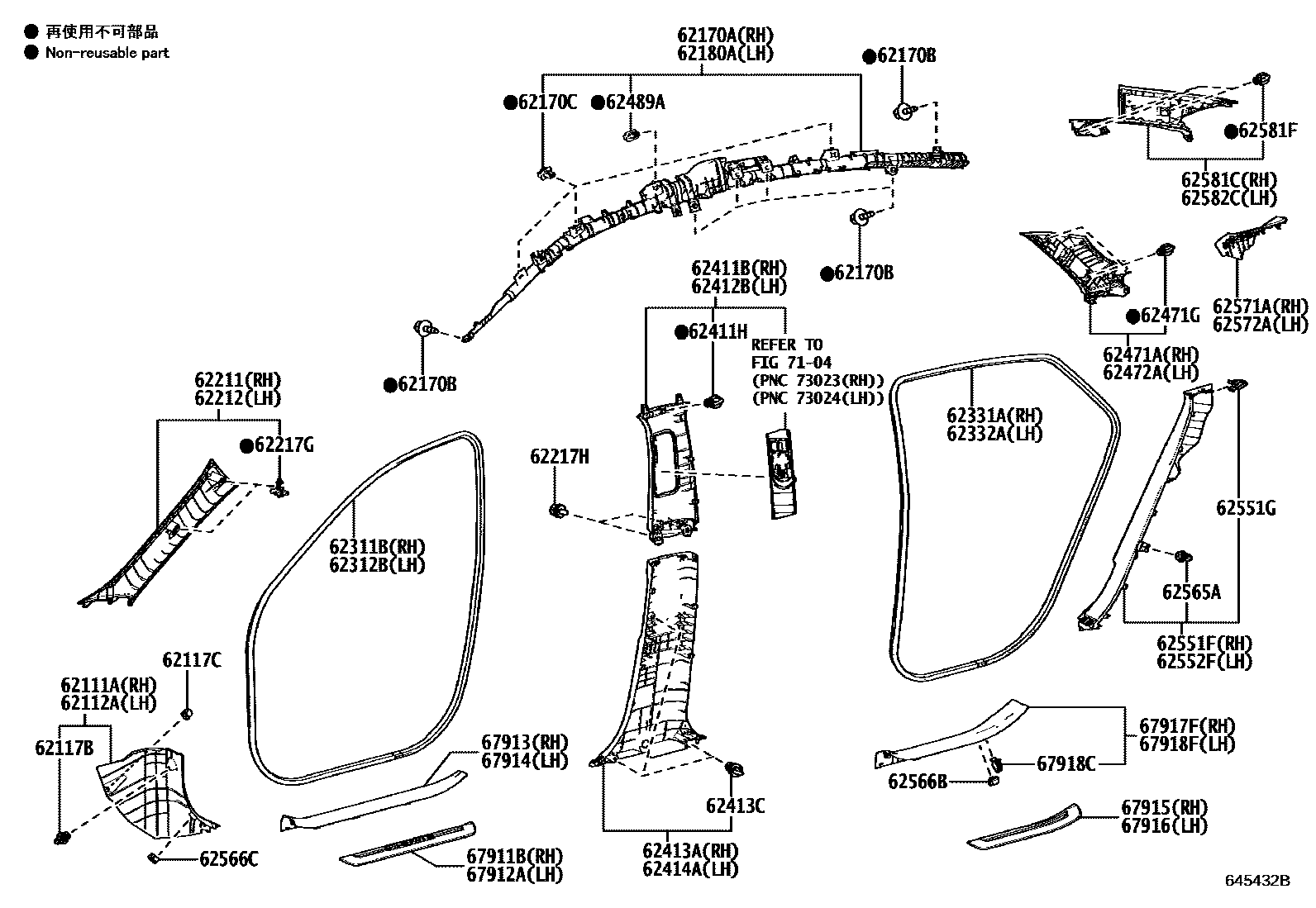

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM0#,2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62170CCLIP, CURTAIN SHIELD AIRBAG
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
62212GARNISH, FRONT PILLAR, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
CHARCOAL,TRIM2#
CHARCOAL,TRIM0#,2#
62411HCLIP
62412BGARNISH, CENTER PILLAR, UPPER LH
CHARCOAL,TRIM2#
CHARCOAL,TRIM0#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM0#,2#
62471GCLIP, ROOF SIDE INNER GARNISH
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM0#,2#
62489ACLIP, ROOF SIDE INNER GARNISH
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566CCLAMP, COWL SIDE TRIM
62571AGARNISH, ROOF SIDE, INNER LOWER RH
BLACK,TRIM0#,2#
62572AGARNISH, ROOF SIDE INNER LOWER LH
BLACK,TRIM0#,2#
62581CGARNISH, REAR WINDOW SIDE, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62582CGARNISH, REAR WINDOW SIDE, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,2#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM0#,2#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
BLACK,TRIM0#,2#
67918CCLIP(FOR REAR SCUFF PLATE)
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
BLACK,TRIM0#,2#
7104
47 parts on this diagram · 1 diagram in section
