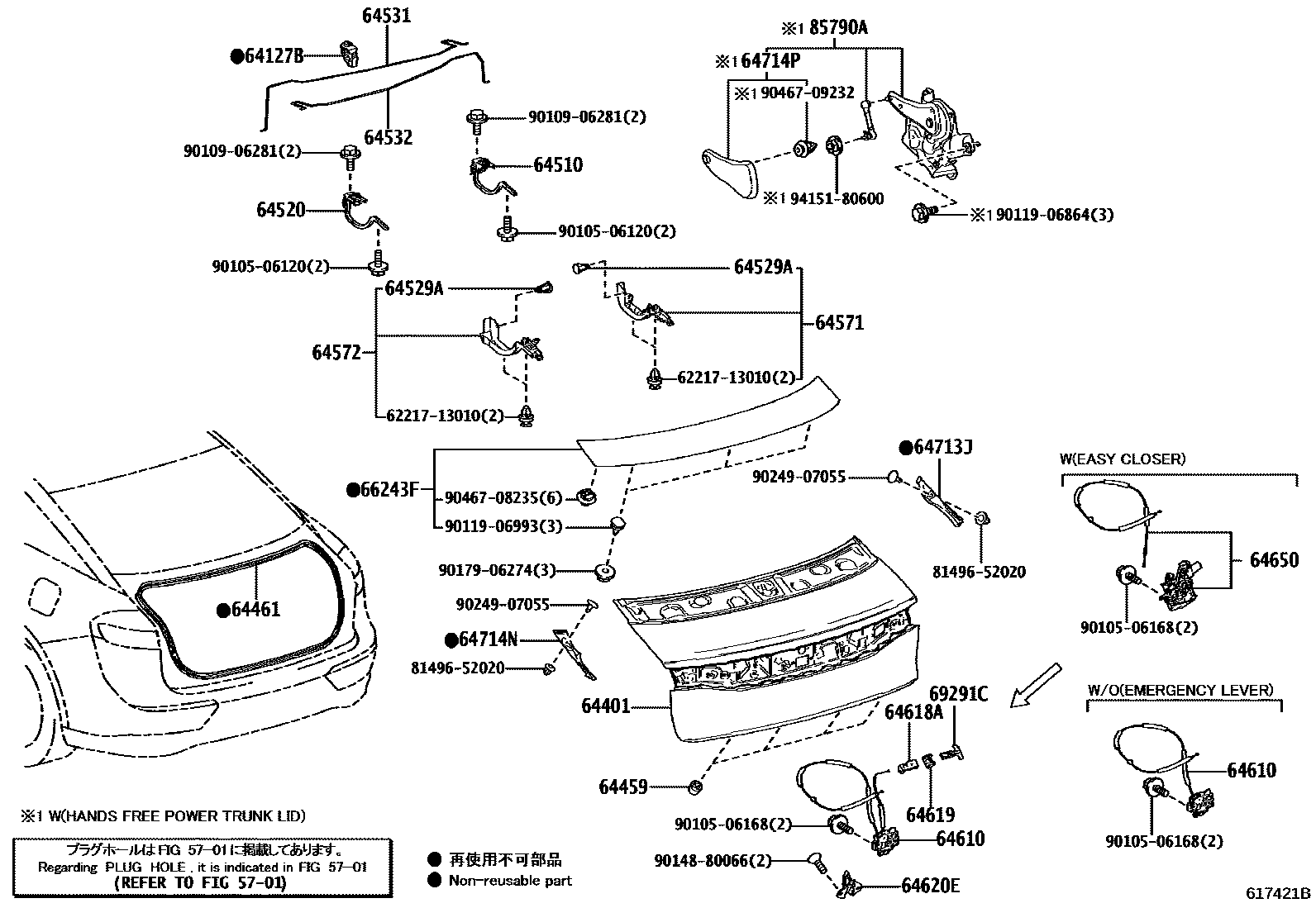

LUGGAGE COMPARTMENT DOOR & LOCK

5701

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iAZSH35,TZSH35202301

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30E00

main64401-30E10

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×4iAZSH35,TZSH35202301

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30400iAZSH35,TZSH35202301

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30560iTZSH35202404

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

main64510-30590iAZSH35202301

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30360iAZSH35,TZSH35202301-202306

main64520-30390iAZSH35,TZSH35202306

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main64529-30130×2iAZSH35,TZSH35202301

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30360iTZSH35202301-202404

FRAME NO.=6-9XXXXXX

main64531-30380iTZSH35202404

KOREA SPEC&USA MID LUX PACKAGE,FRAME NO.=6-9XXXXXX

main64531-30400iAZSH35202301

FRAME NO.=3-5XXXXXX

main64531-30411iTZSH35202404

FRAME NO.=3-5XXXXXX

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30360iAZSH35202301

FRAME NO.=6-9XXXXXX

main64532-30380iTZSH35202404

KOREA SPEC&USA MID LUX PACKAGE,FRAME NO.=6-9XXXXXX

main64532-30400iTZSH35202301-202404

FRAME NO.=3-5XXXXXX

main64532-30411iTZSH35202404

FRAME NO.=3-5XXXXXX

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30240iAZSH35,TZSH35202301

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30180iAZSH35,TZSH35202301

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30250iTZSH35202301-202404

main64600-30240iAZSH35,TZSH35202301-202404

KOREA SPEC

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-30010-C0iAZSH35,TZSH35202301

BLACK

64619PLATE, LUGGAGE LOCK CONTROL CABLE

main64619-30030-C1iTZSH35202301-202404

BLACK,TRIM0#,2#

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iAZSH35,TZSH35202301

64650CLOSER ASSY, LUGGAGE DOOR

main64650-30160iTZSH35202404

main64650-30130iAZSH35,TZSH35202404

KOREA SPEC

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64163-30030iAZSH35,TZSH35202301

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64164-30030iAZSH35,TZSH35202301

64714PCOVER, DECK SIDE TRIM, RH

main64714-33070iTZSH35202404

KOREA SPEC

66243FPROTECTOR, REAR BODY, NO.1

main76821-30070iAZSH35,TZSH35202301

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-53012iAZSH35,TZSH35202301

85790AMOTOR ASSY, LUGGAGE CLOSER

main85790-30032iTZSH35202404

KOREA SPEC

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

8149652020GUIDE, REAR COMBINATION LAMP

main81496-52020

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906864

main90119-06864

9011906993

main90119-06993

9014880066

main90148-80066

9017906274

main90179-06274

9024907055

main90249-07055

9046708235

main90467-08235

9046709232

main90467-09232

9415180600

main94151-80600

36 parts on this diagram · 1 diagram in section
