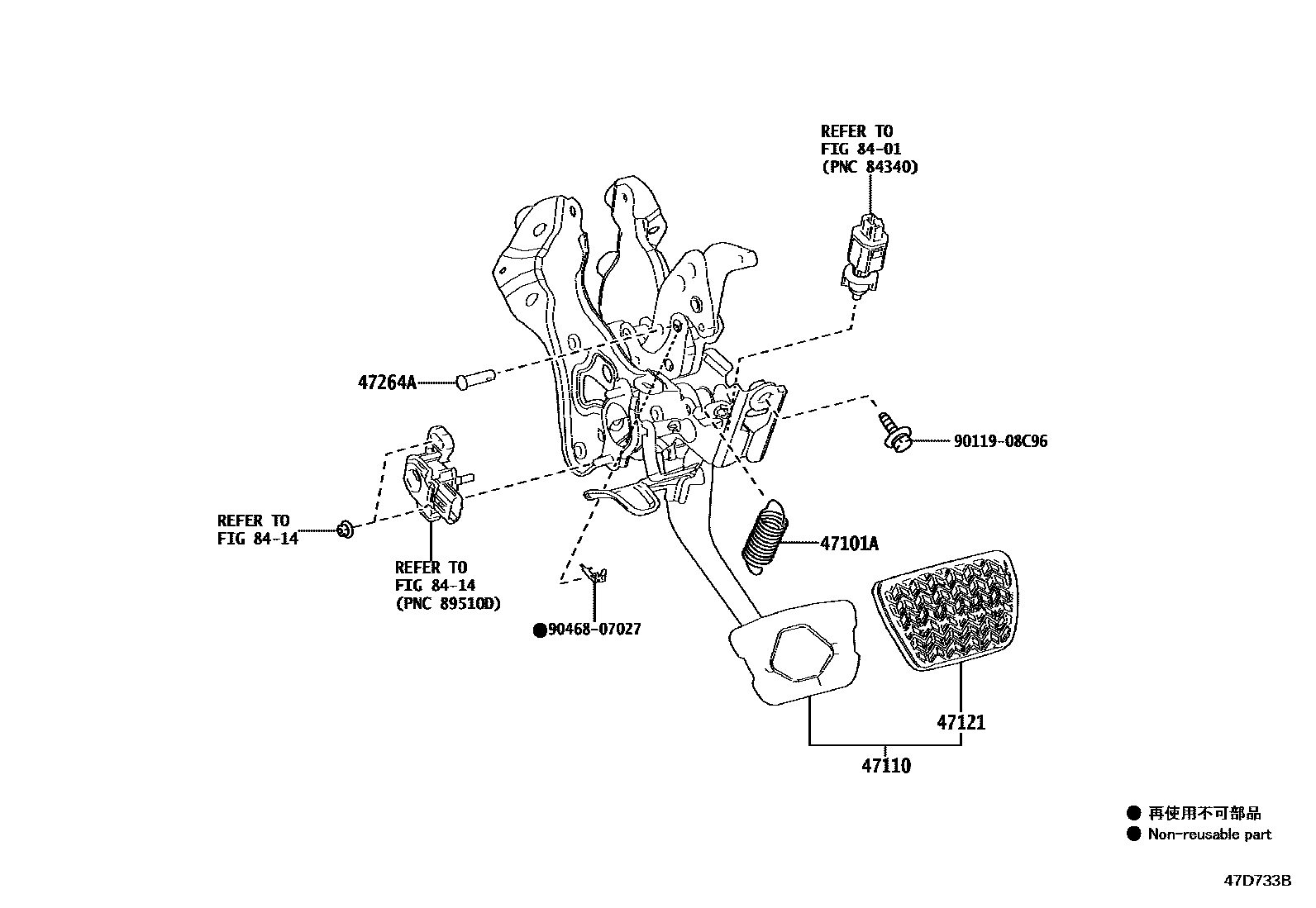

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20035iAZSH35,TZSH35202301

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30630iAZSH35,TZSH35202301

47121PAD, BRAKE PEDAL

main47121-62010iAZSH35,TZSH35202301

47264APIN(FOR PUSH ROD)

main90240-08078iAZSH35,TZSH35202301

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046807027

main90468-07027

8 parts on this diagram · 1 diagram in section
