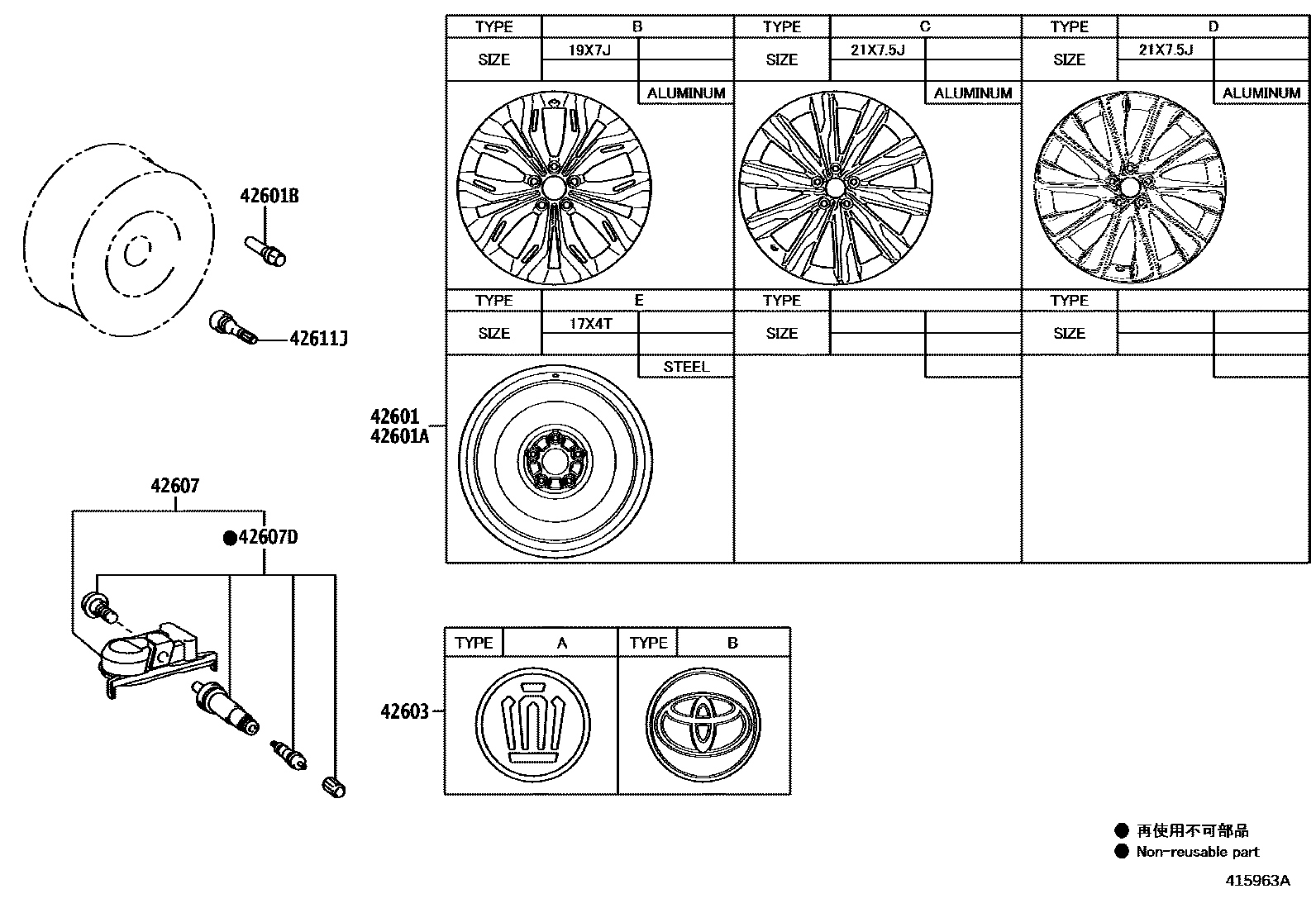

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-30K70×4i202301

21X7.5J,#,TYPE C:REFER ILLUST.

main42611-30M30×4supersedes 42611-30K60i202310

21X7.5J,#,TIRE & DISC WHEEL- 225/45R21,ALL SEASON TIRE,TYPE C:REFER ILLUST.

main4261A-30510×4supersedes 42611-30K60i202301

21X7.5J,#,TIRE & DISC WHEEL-225/45R21,7.5J,ALL SEASON TIRE,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

17X4T,TYPE E:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30690×4supersedes 42603-42170i202301

*ALU,KOREA SPEC,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12010×4i202301

main42607-42050×4i202301

KOREA SPEC&TIRE & DISC WHEEL-225/45R21,7.5J,ALL SEASON TIRE

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043×4i202301

42611JVALVE (FOR TUBELESS TIRE SPARE)

7 parts on this diagram · 1 diagram in section
