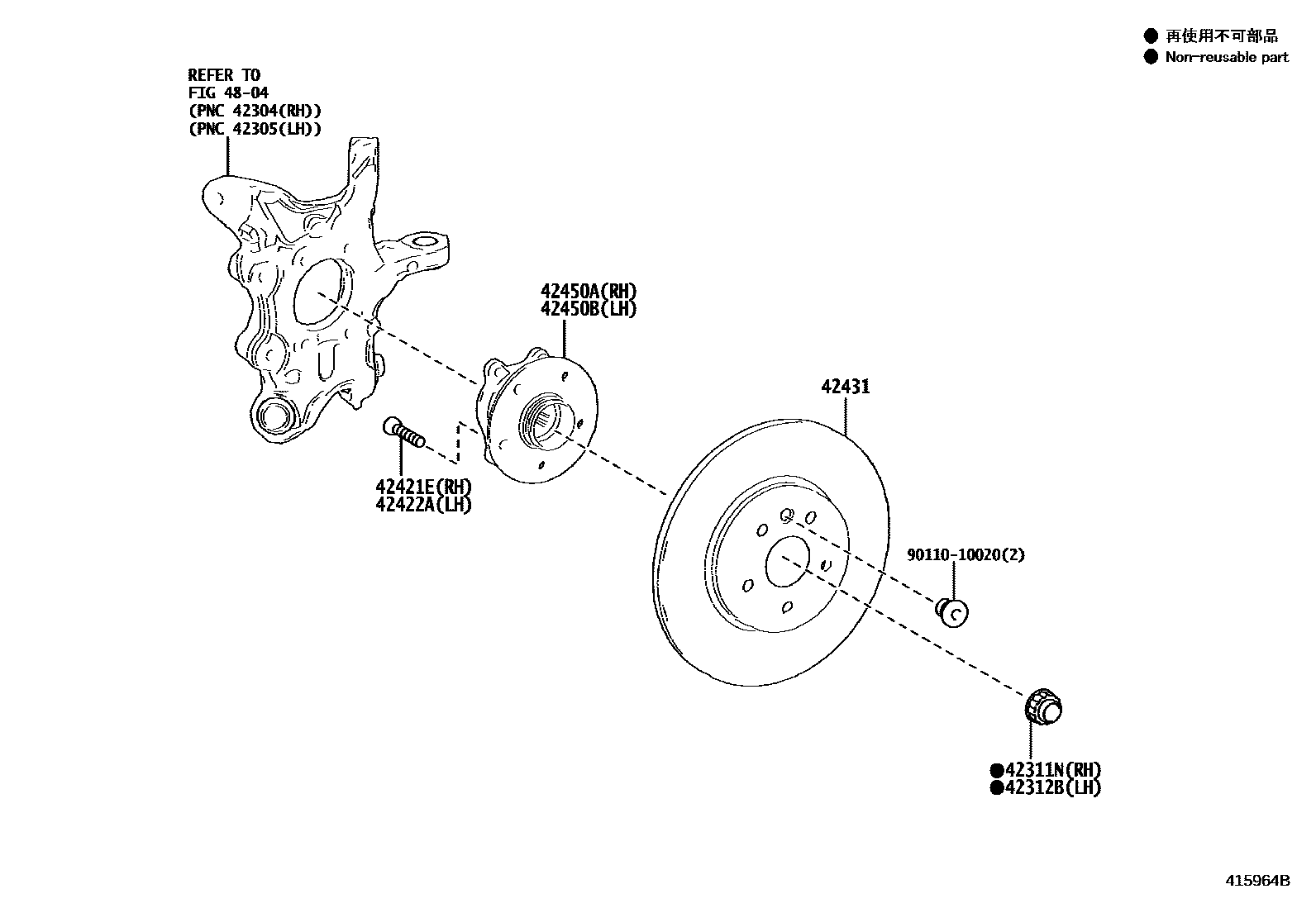

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iAZSH35,TZSH35202301

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iAZSH35,TZSH35202301

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017iAZSH35,TZSH35202301

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017iAZSH35,TZSH35202301

42431DISC, REAR

main42431-78030iAZSH35,TZSH35202301

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30070iAZSH35,TZSH35202301

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30070iAZSH35,TZSH35202301

4804

9011010020

main90110-10020

9 parts on this diagram · 3 diagrams in section
