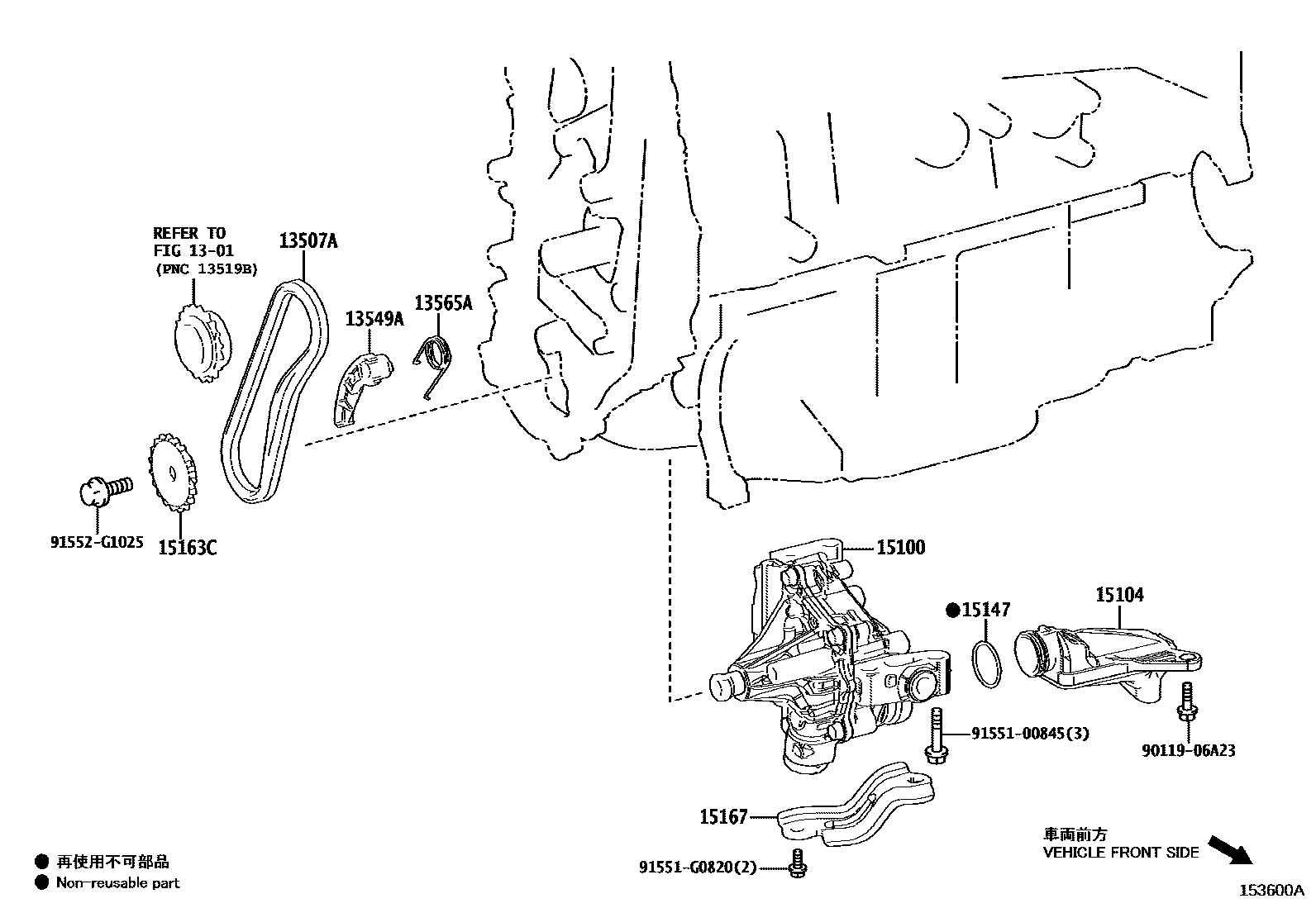

ENGINE OIL PUMP

0001 1 0002 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010iA25AFXS..AZSH35202301

main13507-25030iT24AFTS..TZSH35202301

13549APLATE, CHAIN TENSIONER

main13549-25020iA25AFXS..AZSH35; T24AFTS..TZSH35202301

13565ASPRING, CHAIN DAMPER

main13565-25010iA25AFXS..AZSH35; T24AFTS..TZSH35202301

15100PUMP ASSY, OIL

main15100-25032iA25AFXS..AZSH35202301

main15100-25070iT24AFTS..TZSH35202301

15104STRAINER SUB-ASSY, OIL

main15104-25030iA25AFXS..AZSH35202301

main15104-25040iT24AFTS..TZSH35202301

15147GASKET, OIL STRAINER

main15147-25010iA25AFXS..AZSH35202301

main15147-25030iT24AFTS..TZSH35202301

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iA25AFXS..AZSH35202301

main15163-25030iT24AFTS..TZSH35202301

15167BRACKET, OIL PUMP

main15167-25011iA25AFXS..AZSH35202301

9011906A23

main90119-06A23

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

13 parts on this diagram · 2 diagrams in section
