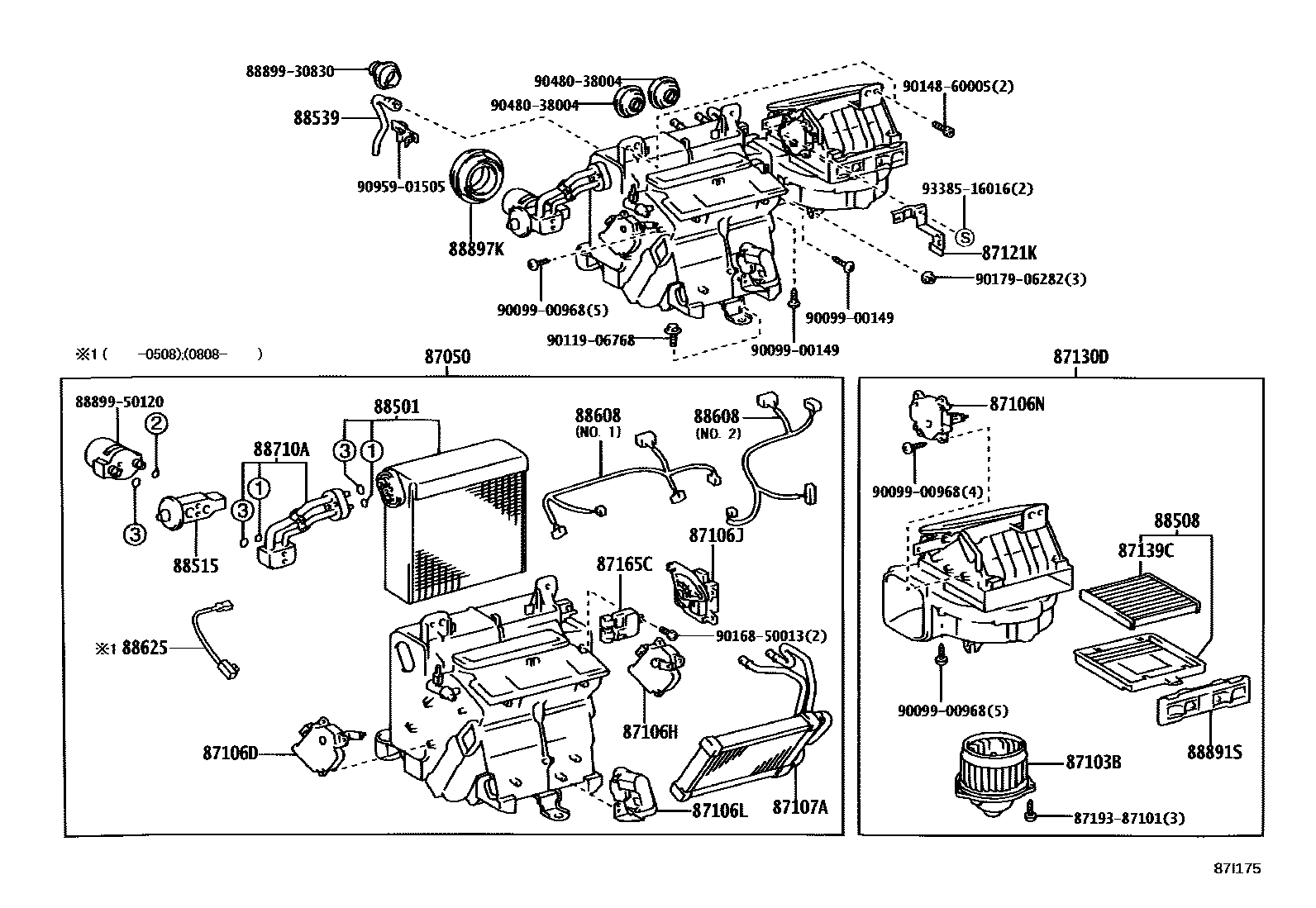

HEATING & AIR CONDITIONING - COOLER UNIT
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106LSERVO SUB-ASSY, DAMPER
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87121KBRACKET, HEATER
87165CCONTROL, BLOWER MOTOR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
NO.1
NO.2
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88897KGROMMET, (FOR COOLER PIPE)
8719387101
main87193-87101
8889930830COVER, EVAPORATOR
main88899-30830
8889950120COVER, EVAPORATOR
main88899-50120
9009900149
main90099-00149
9009900968
main90099-00968
9011906768
main90119-06768
9014860005
main90148-60005
9016850013
main90168-50013
9017906282
main90179-06282
9048038004
main90480-38004
9095901505
main90959-01505
9338516016
main93385-16016
33 parts on this diagram · 2 diagrams in section
