RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

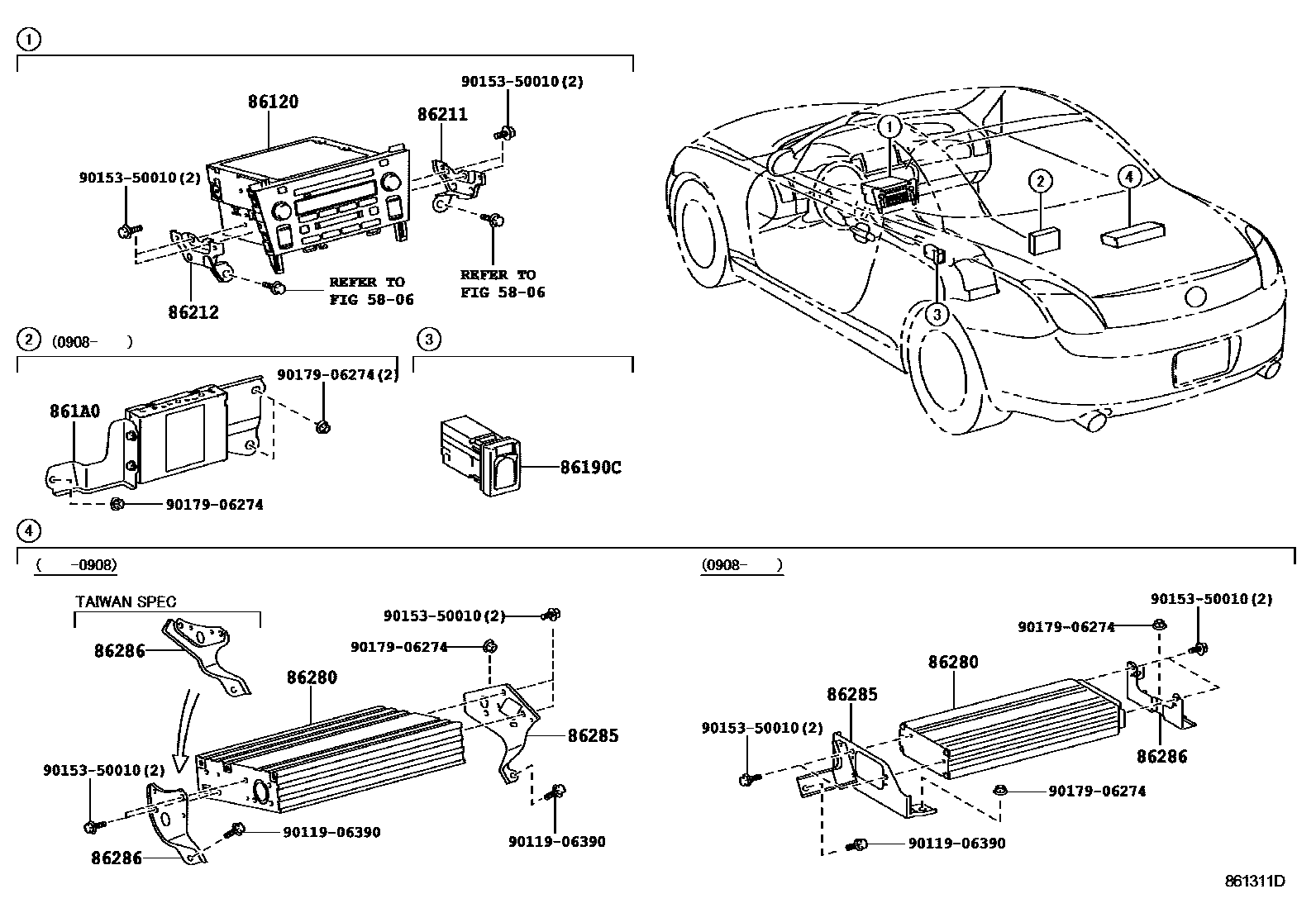

86120RECEIVER ASSY, RADIO

main86120-24370iUZZ40200508-200708

PIONEER,ID=P3933,TYPE B:REFER TO ILLUSTRATION

main86120-24390iUZZ40..5FC200101-200208

PIONEER,ID=P6813,TYPE A:REFER TO ILLUSTRATION

main86120-24391iUZZ40..5FC200208-200408

PIONEER,ID=P6832,TYPE A:REFER TO ILLUSTRATION

main86120-24392iUZZ40200508

PIONEER,ID=P6846,TYPE A:REFER TO ILLUSTRATION

main86120-24420iUZZ40..5FC200105-200408

PIONEER,ID=P3905,TYPE B:REFER TO ILLUSTRATION

main86120-24480iUZZ40200908

PIONEER,ID=P6525,TYPE C:REFER TO ILLUSTRATION

main86120-24490iUZZ40200908

PIONEER,ID=P6526,TYPE C:REFER TO ILLUSTRATION

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24020iUZZ40200908-201007

861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE

main861A0-24010iUZZ40200908-201007

86211BRACKET, RADIO, NO.1

main86211-24080iUZZ40200101-200508

main86211-24090iUZZ40200908

86212BRACKET, RADIO, NO.2

main86212-24080iUZZ40200101-200508

main86212-24090iUZZ40200908

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W070iUZZ40200508-200908

main86280-0W610iUZZ40200908

main86280-24240iUZZ40..5FC200105-200111

TAIWAN SPEC

86285BRACKET, AMPLIFIER, NO.1

main86285-24020iUZZ40200101-200508

main86285-24040iUZZ40200908

86286BRACKET, AMPLIFIER, NO.2

main86286-24010iUZZ40..5FC200105-200111

TAIWAN SPEC

main86286-24020iUZZ40200101-200508

main86286-24040iUZZ40200908

9011906390

main90119-06390

9015350010

main90153-50010

9017906274

main90179-06274

12 parts on this diagram · 3 diagrams in section
