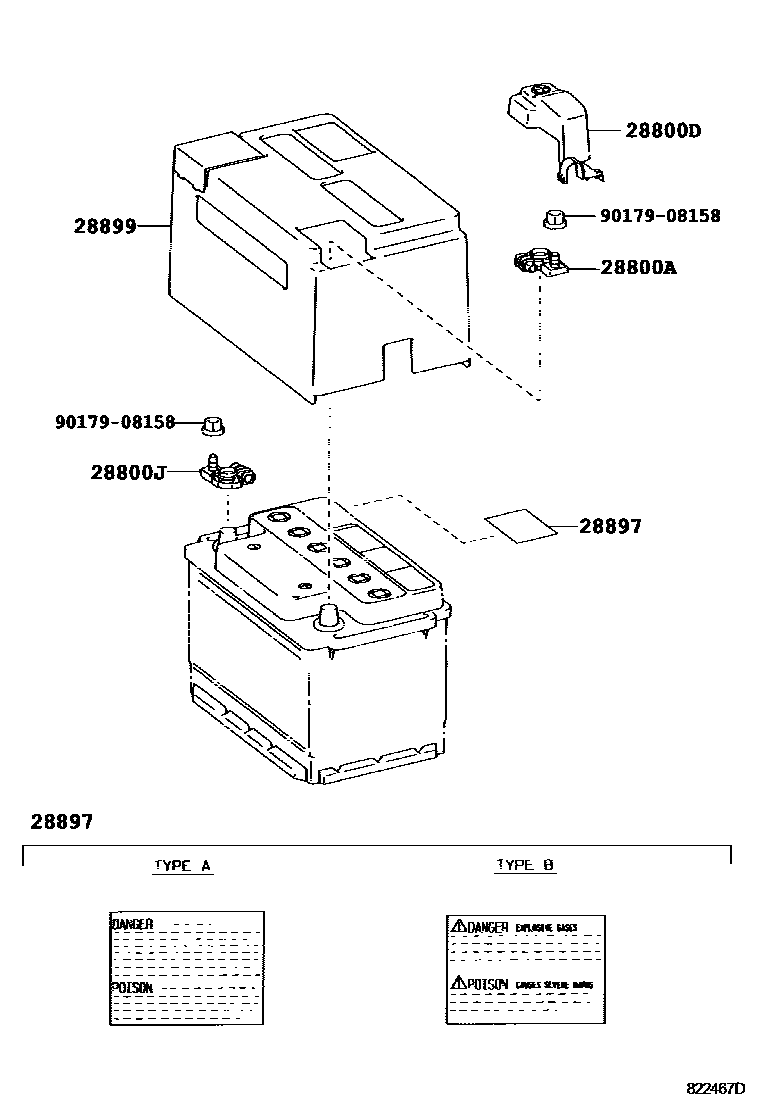

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i3UZFE..UZZ40200101-200508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30410i3UZFE..UZZ40200101-200508

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i3UZFE..UZZ40200101-200508

28897PLATE, BATTERY CAUTION

main28897-38010i3UZFE..UZZ40200101-200508

TYPE A:REFER TO ILLUSTRATION

main28897-50010i3UZFE..UZZ40..5FC200101-200412

TYPE B:REFER TO ILLUSTRATION

main28897-50050i3UZFE..UZZ40200501-200508

TYPE B:REFER TO ILLUSTRATION

28899INSULATOR, BATTERY

main28899-50040i3UZFE..UZZ40200101-200508

9017908158

main90179-08158

6 parts on this diagram · 1 diagram in section
