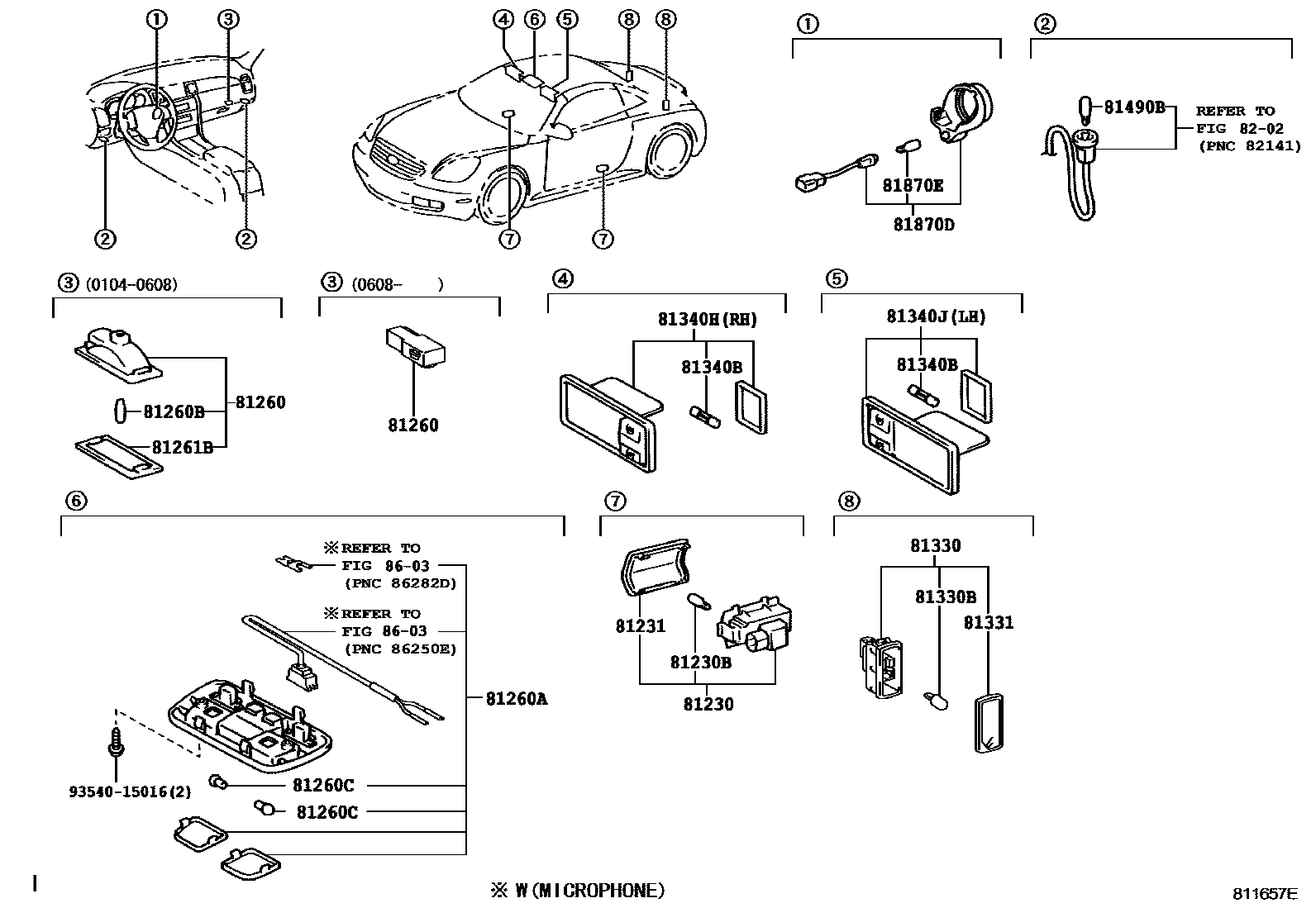

INTERIOR LAMP
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81260ALAMP ASSY, MAP
ECRU,TRIM0#,20,21
W(GARAGE DOOR OPENER),ECRU,TRIM0#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(GARAGE DOOR OPENER),BLACK,TRIM33
W(GARAGE DOOR OPENER),DK.BROWN,TRIM4#
TAIWAN SPEC,ECRU,TRIM0#,20,21
ECRU,TRIM0#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33
DK.BROWN,TRIM4#
W(MICROPHONE),ECRU,TRIM0#,20,21
W(MICROPHONE),ECRU,TRIM0#,20,21
NEIMAN MARCUS X'MAS EDITION(USA)
W(GARAGE DOOR OPENER & MICROPHONE),ECRU,TRIM0#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(GARAGE DOOR OPENER & MAYDAY SYSTEM),BLACK,TRIM3#
W(GARAGE DOOR OPENER & MICROPHONE),DK.BROWN,TRIM4#
W(MICROPHONE),ECRU,TRIM0#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(MAYDAY SYSTEM),BLACK,TRIM3#
W(MICROPHONE),DK.BROWN,TRIM4#
W(GARAGE DOOR OPENER & MICROPHONE),ECRU,TRIM0#
W(GARAGE DOOR OPENER & MICROPHONE),BLACK,TRIM2#,5#
W(GARAGE DOOR OPENER & MICROPHONE),DK.BROWN,TRIM4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W
81261BLENS,GLOVE BOX LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81340HLAMP ASSY, VANITY, RH
KOREA SPEC,ECRU,TRIM0#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
CAMEL/DK.BROWN,TRIM4#
ECRU,TRIM0#
BLACK,TRIM2#,5#
DK.BROWN,TRIM4#
81340JLAMP ASSY, VANITY, LH
KOREA SPEC,ECRU,TRIM0#
KOREA SPEC,BLACK,TRIM2#,5#
CAMEL/DK.BROWN,TRIM4#
ECRU,TRIM0#
BLACK,TRIM2#,5#
DK.BROWN,TRIM4#
81490BBULB (FOR FOOT LAMP)
14V 1.4W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
12V 1.2W W/O SOCKET
8202WIRING & CLAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
9354015016
main93540-15016
20 parts on this diagram · 1 diagram in section
