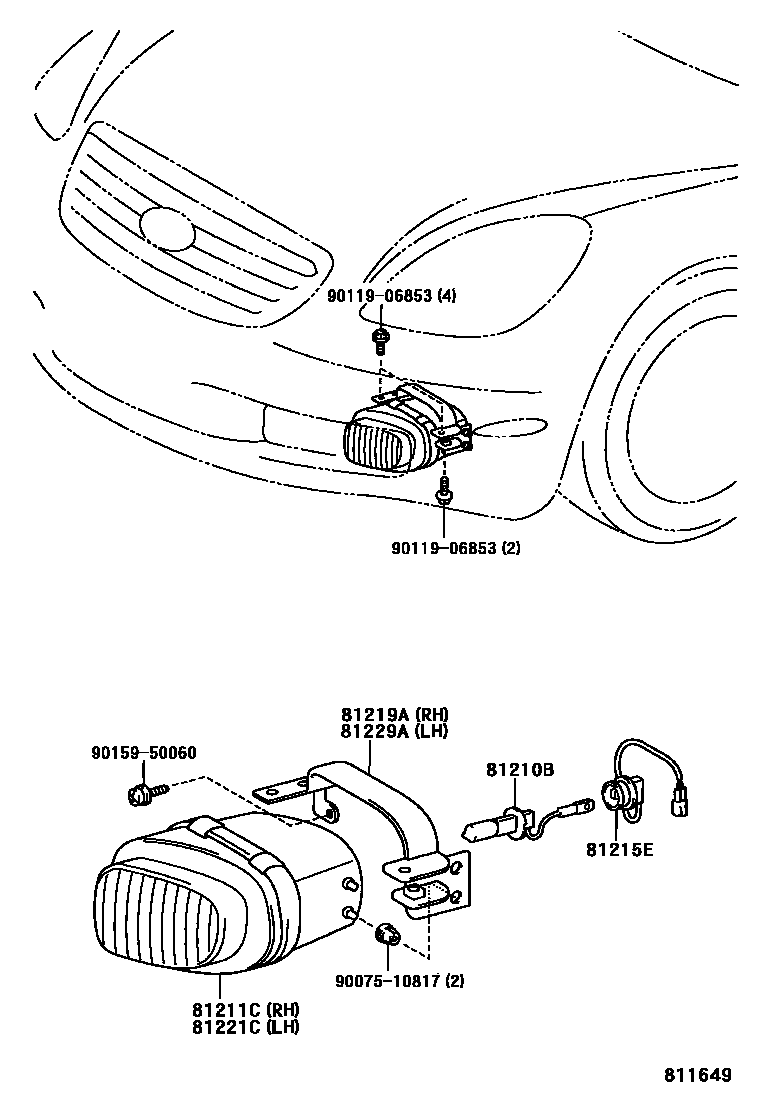

FOG LAMP

81210BBULB, FOG LAMP

main90981-13018×2iUZZ40200101-200508

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-24050iUZZ40200101-200508

81215ECORD, FOG LAMP

main81215-24050×2iUZZ40200101-200508

81219ABRACKET, FOG LAMP, RH

main81219-24050iUZZ40200101-200508

main81219-24070iUZZ40200508

81221CLAMP UNIT, FOG LAMP, LH

main81221-24050iUZZ40200101-200508

81229ABRACKET, FOG LAMP, LH

main81229-24050iUZZ40200101-200508

main81229-24070iUZZ40200508

9007510817

main90075-10817

9011906853

main90119-06853

9015950060

main90159-50060

9 parts on this diagram · 1 diagram in section
