REAR SEAT & SEAT TRACK
63230DBOARD ASSY, WIND DEFLECTOR
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
ECRU,TRIM0#
BLACK,TRIM20
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
SADDLE TAN,TRIM2#
ECRU,TRIM0#
BLACK,TRIM2#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
CAMEL,TRIM4#
SADDLE TAN,TRIM5#
ECRU,TRIM0#
BLACK,TRIM2#
CAMEL,TRIM4#
SADDLE TAN,TRIM5#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
ECRU,TRIM0#
BLACK,TRIM20
SADDLE TAN,TRIM21
ECRU,TRIM0#
BLACK,TRIM20
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
SADDLE TAN,TRIM21
TAIWAN SPEC,ECRU,TRIM0#
TAIWAN SPEC,BLACK,TRIM20
TAIWAN SPEC,SADDLE TAN,TRIM21
TAIWAN SPEC,ECRU,TRIM0#
TAIWAN SPEC,BLACK,TRIM20
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & TAIWAN SPEC,RED,TRIM3#
TAIWAN SPEC,SADDLE TAN,TRIM21
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
KOREA OR TAIWAN SPEC,ECRU,TRIM0#
KOREA OR TAIWAN SPEC,BLACK,TRIM2#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
KOREA OR TAIWAN SPEC,CAMEL,TRIM4#
KOREA OR TAIWAN SPEC,SADDLE TAN,TRIM5#
KOREA OR TAIWAN SPEC,ECRU,TRIM0#
KOREA OR TAIWAN SPEC,BLACK,TRIM2#
KOREA OR TAIWAN SPEC,CAMEL,TRIM4#
KOREA OR TAIWAN SPEC,SADDLE TAN,TRIM5#
ECRU,TRIM0#
BLACK,TRIM2#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(ISO-FIX BUTTON),RED,TRIM33
SADDLE TAN,TRIM5#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(ISO-FIX BUTTON),CAMEL,TRIM04
ECRU,TRIM0#
BLACK,TRIM2#
SADDLE TAN,TRIM5#
CAMEL,TRIM4#
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71881ABOARD, REAR SEATBACK
BLACK,TRIM0#,20,21
DK.BROWN,TRIM4#
71891BRACKET, REAR SEATBACK SET, NO.1
71892BRACKET, REAR SEATBACK SET, NO.2
71940AHEADREST ASSY, REAR SEAT
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
BLACK,TRIM20
ECRU,TRIM0#
BLACK,TRIM20
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
SADDLE TAN,TRIM2#
ECRU,TRIM0#
BLACK,TRIM2#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
SADDLE TAN,TRIM5#
ECRU,TRIM0#
BLACK,TRIM2#
CAMEL,TRIM4#
SADDLE TAN,TRIM5#
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
71944APLATE, REAR SEAT HEADREST
ECRU,TRIM0#,RH
BLACK,TRIM2#,RH
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#,RH
SADDLE TAN,TRIM21,RH
CAMEL,TRIM4#,RH
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21,RH
ECRU,TRIM0#,LH
BLACK,TRIM2#,LH
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#,LH
SADDLE TAN,TRIM21,LH
CAMEL,TRIM4#,LH
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21,LH
71952COVER, REAR SEAT HEADREST PLATE
ECRU,TRIM0#,RH
BLACK,TRIM20,RH
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#,RH
SADDLE TAN,TRIM5#,RH
CAMEL,TRIM4#,RH
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21,RH
ECRU,TRIM0#,RH
BLACK,TRIM2#,RH
SADDLE TAN,TRIM5#,RH
CAMEL,TRIM4#,RH
ECRU,TRIM0#,LH
BLACK,TRIM2#,LH
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33,LH
SADDLE TAN,TRIM5#,LH
CAMEL,TRIM4#,LH
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21,LH
ECRU,TRIM0#,LH
BLACK,TRIM2#,LH
SADDLE TAN,TRIM5#,LH
CAMEL,TRIM4#,LH
72693HOOK, REAR SEAT CUSHION LOCK
6329724020LID, CENTER PILLAR GARNISH BELT HOLE, RH
main63297-24020
9011908A94
main90119-08A94
9017906206
main90179-06206
9017908241
main90179-08241
9046709075
main90467-09075
9046709112
main90467-09112
9046818008
main90468-18008
9163360620
main91633-60620
91635G0614
main91635-G0614

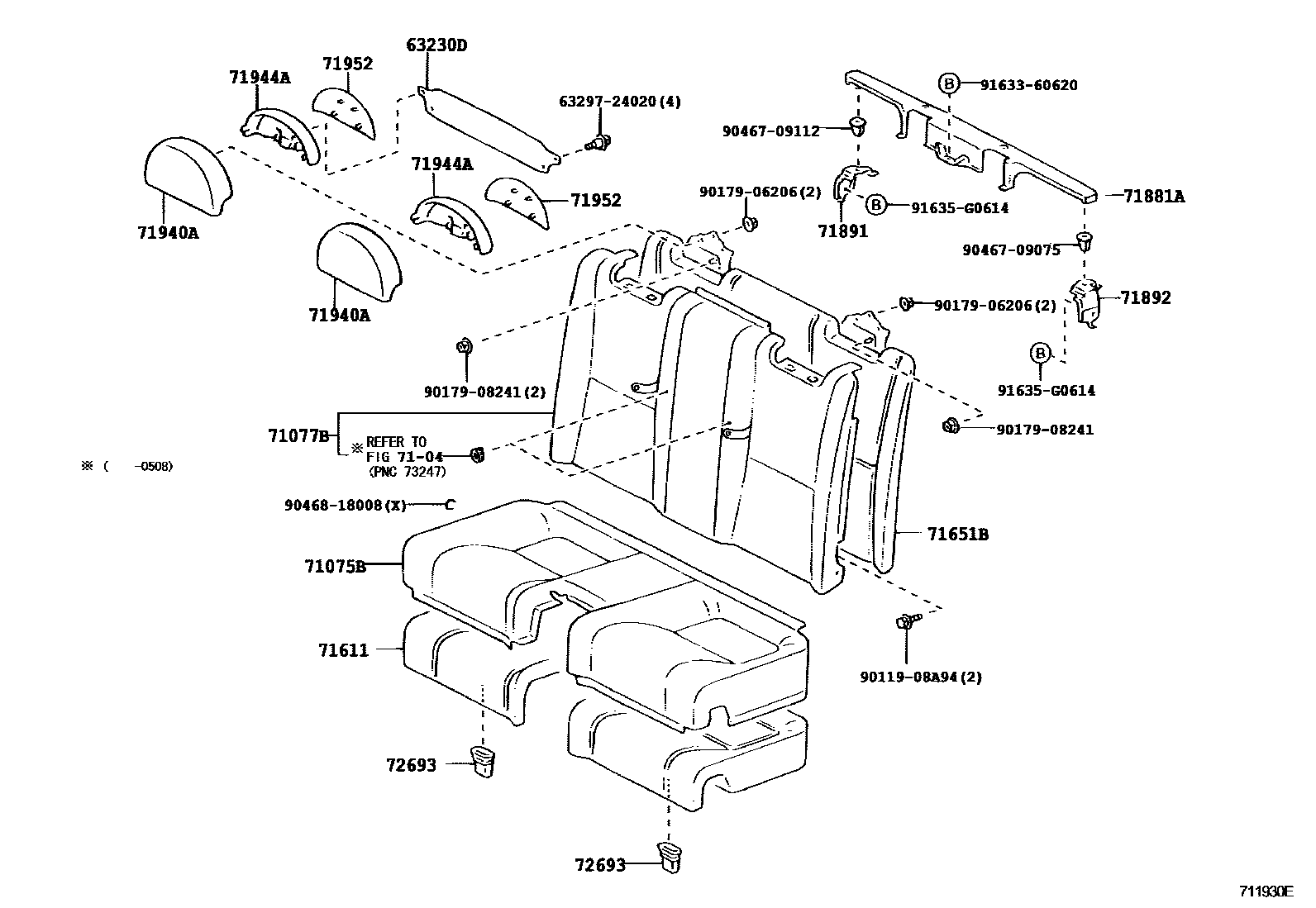

22 parts on this diagram · 1 diagram in section
