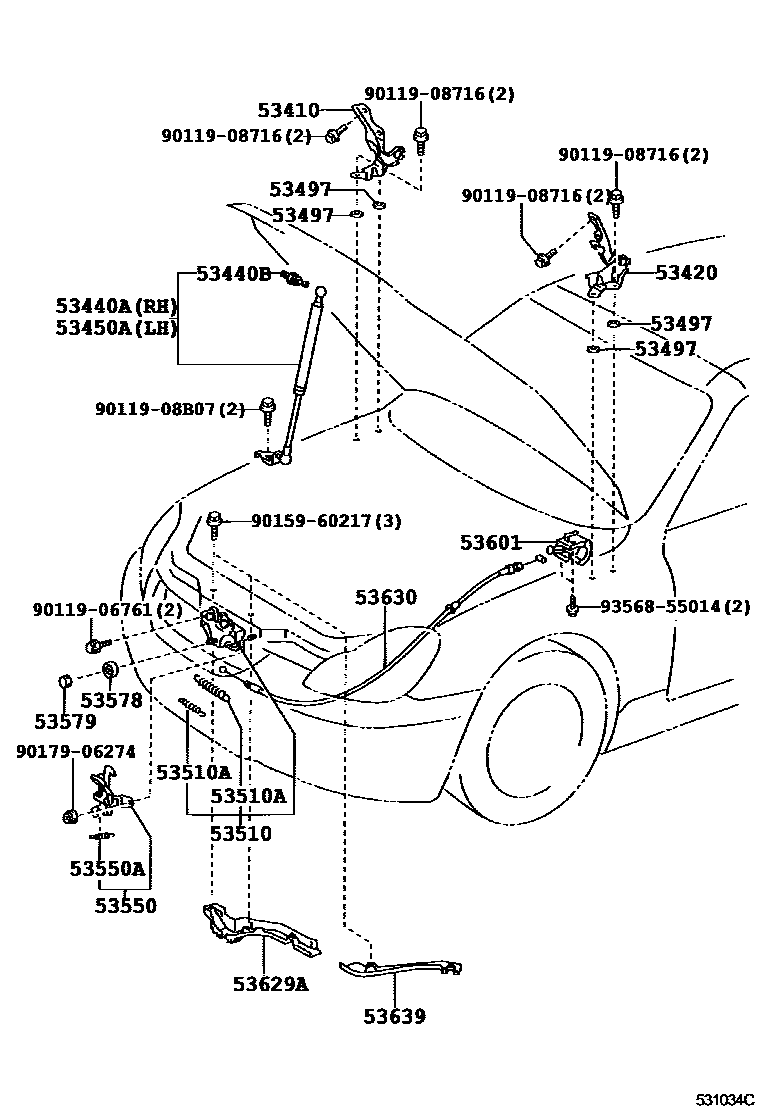

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-24050iUZZ40200101-200508

53420HINGE ASSY, HOOD, LH

main53420-24050iUZZ40200101-200508

53440ASUPPORT ASSY, HOOD, RH

main53440-29125iUZZ40200101-200508

53440BBOLT, HOOD SUPPORT, NO.1

main68961-12050×2iUZZ40200101-200508

53450ASUPPORT ASSY, HOOD, LH

main53450-29095iUZZ40200101-200508

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iUZZ40200101-200508

T=1.0

53510LOCK ASSY, HOOD

main53510-24060iUZZ40200508

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iUZZ40200508

WD=0.9,CW=20.5

main90506-14061iUZZ40200101-200508

WD=1.4,CW=15

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-24020iUZZ40200101-200508

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90506-12063iUZZ40200105-200508

main90506-12064iUZZ40..5FC200101-200105

53578NUT, HOOD LOCK

main53578-50010iUZZ40200101-200508

53579CAP, HOOD LOCK NUT

main53579-50010iUZZ40200101-200508

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-24030-A0iUZZ40200508

ECRU,TRIM0#

main53601-24030-C0iUZZ40200101-200508

BLACK,TRIM20,21

main53601-24030-D0iUZZ40200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#

main53601-24030-E0iUZZ40200508

CAMEL,TRIM4#

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-24020iUZZ40200101-200508

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-24080iUZZ40200101-200508

53639COVER, HOOD LOCK CONTROL CABLE, NO.2

main53639-24020iUZZ40200101-200508

9011906761

main90119-06761

9011908716

main90119-08716

9011908B07

main90119-08B07

9015960217

main90159-60217

9017906274

main90179-06274

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
