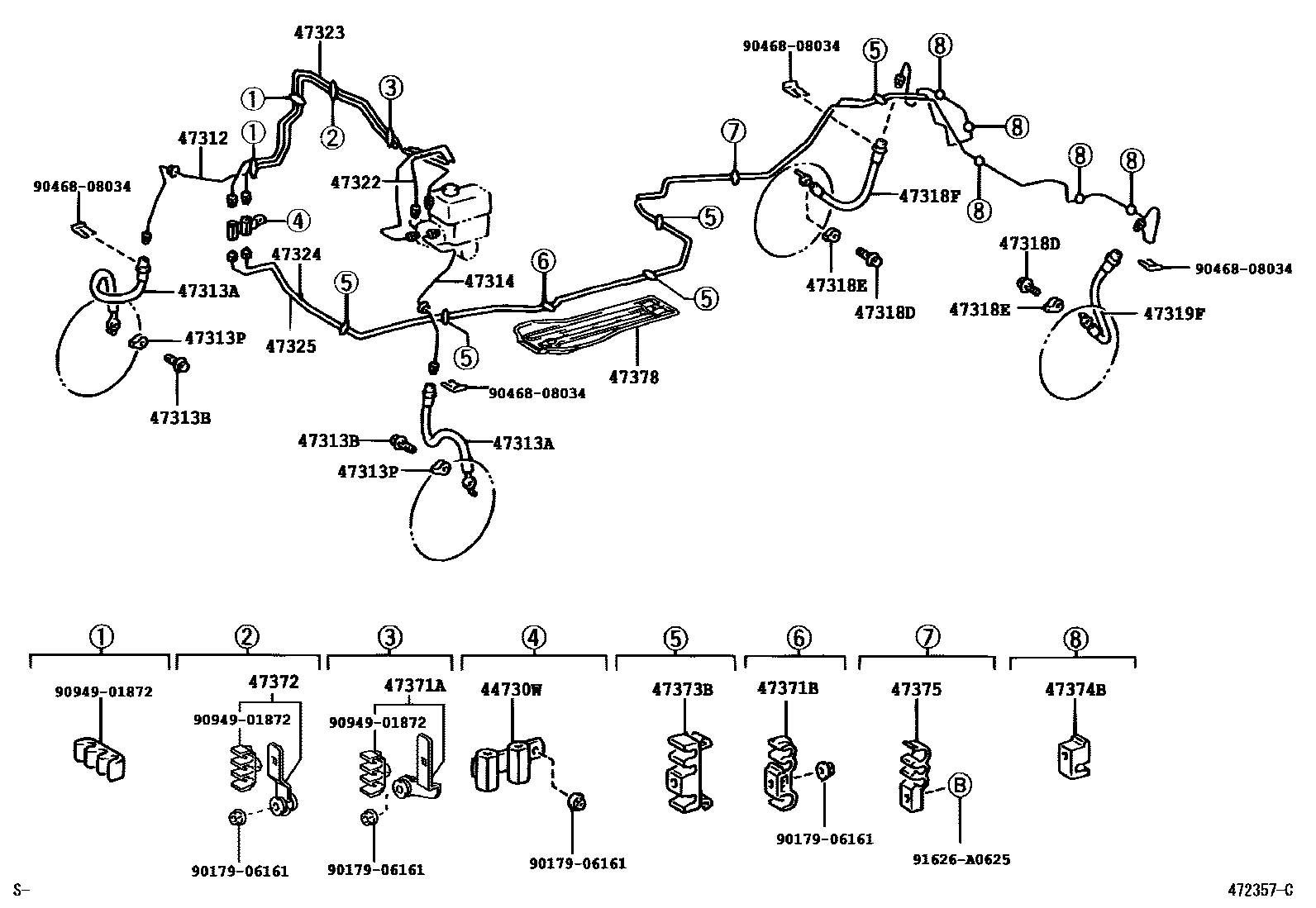

BRAKE TUBE & CLAMP

44730WWAY, 2(FOR FRONT BRAKE TUBE)

main90412-10158iUZZ40200101-200508

47312TUBE, FRONT BRAKE, NO.2

main47312-24130iUZZ40200101-200508

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02972×2iUZZ40200101-200508

main90947-02F68×2iUZZ40200701-200910

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iUZZ40200101-200508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iUZZ40200101-200508

47314TUBE, FRONT BRAKE, NO.4

main47313-30420iUZZ40200101-200508

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iUZZ40200101-200508

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iUZZ40200101-200508

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02973iUZZ40200101-200508

main90947-02F69iUZZ40200701-200909

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02973iUZZ40200101-200508

main90947-02F69iUZZ40200701-200909

47322TUBE, REAR BRAKE, NO.2

main47322-24140iUZZ40200101-200508

47323TUBE, REAR BRAKE, NO.3

main47323-24050iUZZ40200101-200508

47324TUBE, REAR BRAKE, NO.4

main47324-24040iUZZ40200101-200508

47325TUBE, REAR BRAKE, NO.5

main47325-24020iUZZ40200101-200508

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30490iUZZ40200101-200508

47371BCLAMP, BRAKE TUBE, NO.6

main47371-30520iUZZ40200101-200508

47372CLAMP, BRAKE TUBE, NO.2

main47371-30500iUZZ40200101-200508

47373BCLAMP, BRAKE TUBE, NO.3

main47371-30460×5iUZZ40200101-200508

47374BCLAMP, BRAKE TUBE, NO.4

main47371-30470×5iUZZ40200101-200508

47375CLAMP, BRAKE TUBE, NO.5

main47371-30510iUZZ40200101-200508

47378PROTECTOR, BRAKE TUBE

main77266-24030iUZZ40200101-200508

9017906161

main90179-06161

9046808034

main90468-08034

9094901872

main90949-01872

91626A0625

main91626-A0625

25 parts on this diagram · 1 diagram in section
