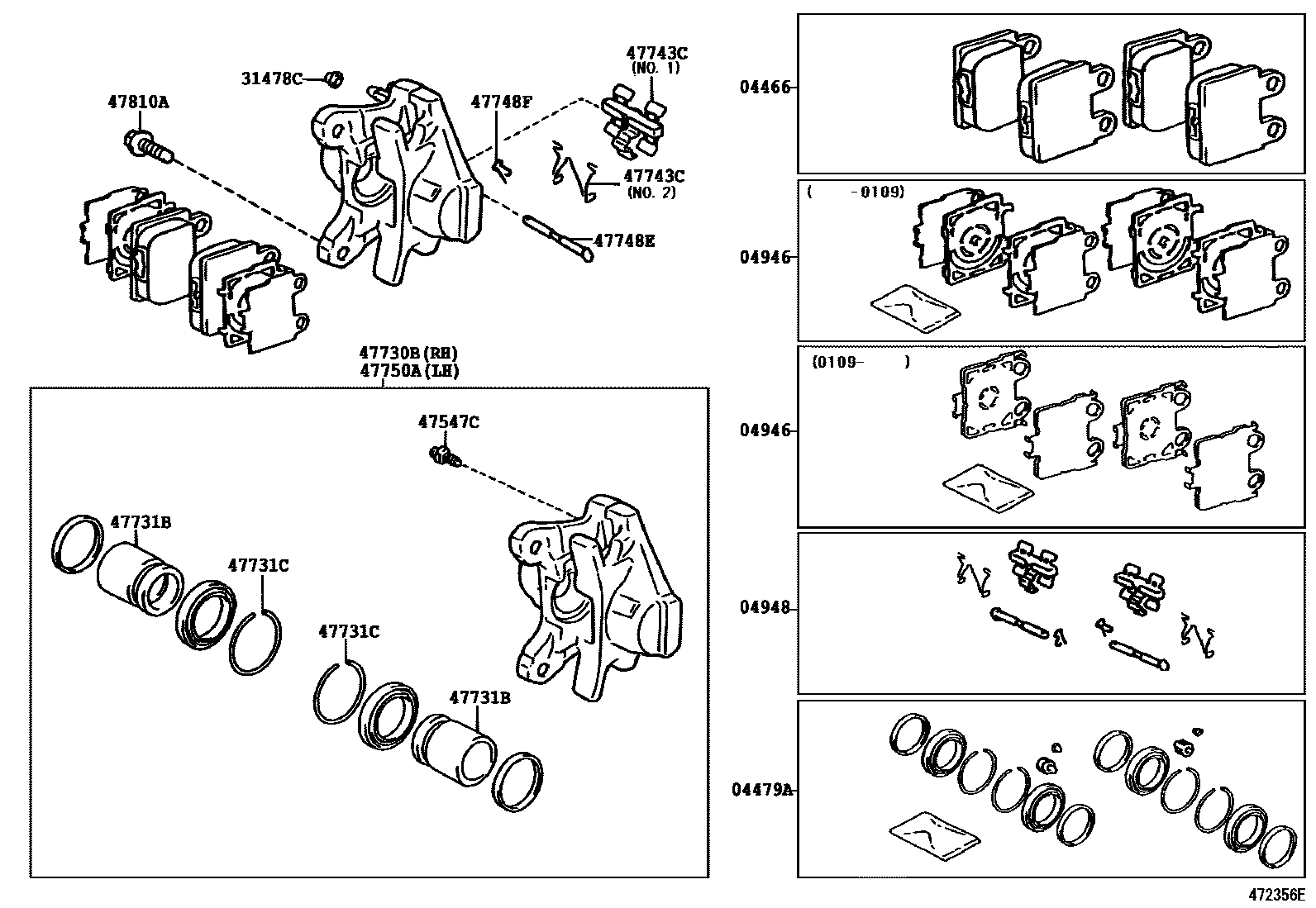

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30161iUZZ40..5FC200101-200208

MARK NBK PN529

main04466-30170iUZZ40200208-200508

MARK NBK PN529

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30221iUZZ40200101-200508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30071iUZZ40..5FC200101-200109

main04946-53010iUZZ40200109-200508

04948FITTING KIT, DISC BRAKE, REAR

main04948-30080iUZZ40200101-200508

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iUZZ40200101-200508

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iUZZ40200101-200508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30410iUZZ40200101-200508

47731BPISTON, REAR DISC BRAKE

main47731-30100×4iUZZ40200101-200508

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×4iUZZ40200508

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030×2iUZZ40200101-200508

NO.1

main47743-30050×2iUZZ40200101-200508

NO.2

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011×2iUZZ40200508

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028×2iUZZ40200101-200508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30410iUZZ40200101-200508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iUZZ40200101-200508

14 parts on this diagram · 1 diagram in section
