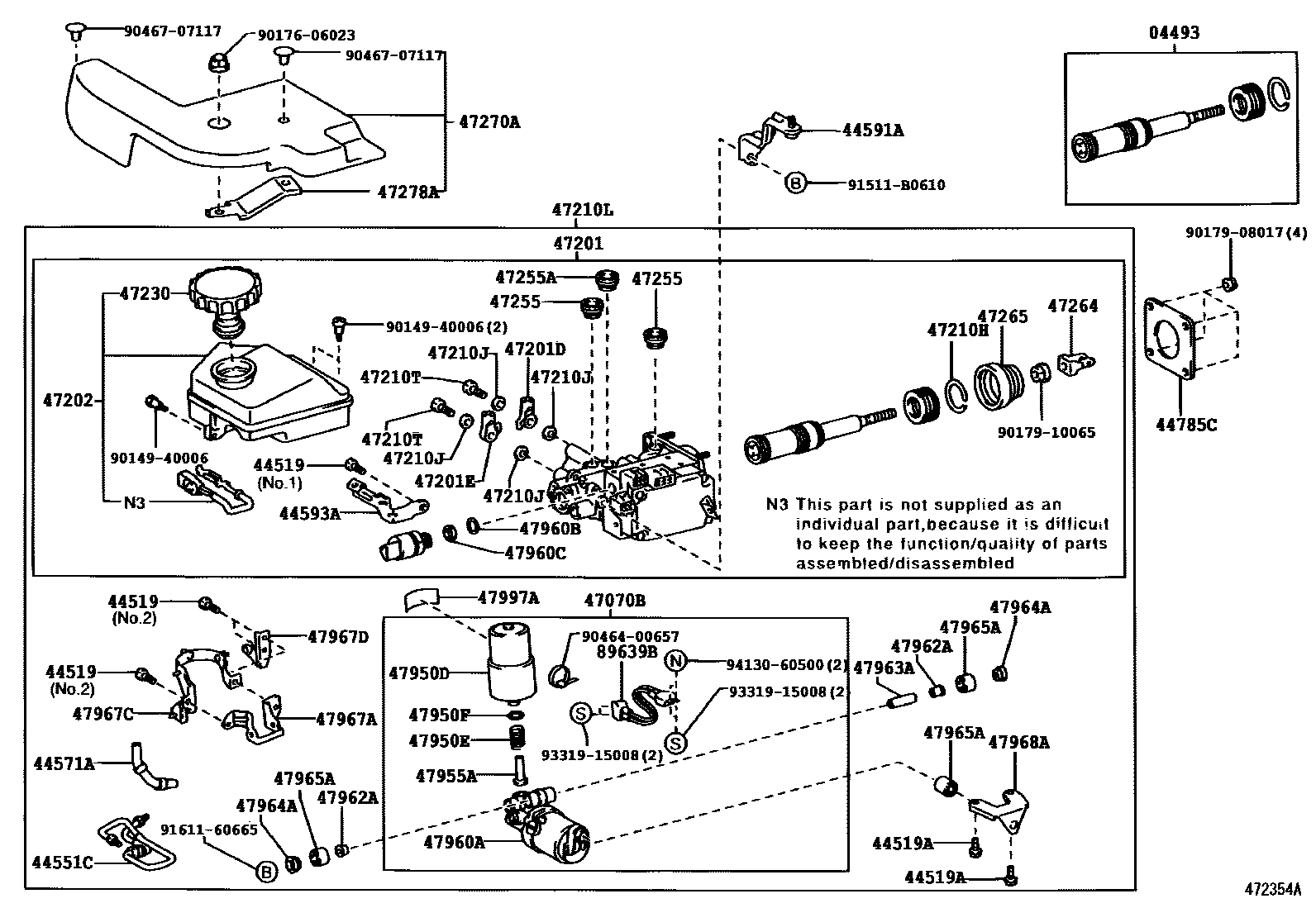

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
44519BOLT, BRAKE ACTUATOR
NO.1
NO.2
44519ABOLT(FOR BRAKE BOOSTER PUMP)
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44591ABRACKET, BRAKE ACTUATOR, NO.1
44593ABRACKET, BRAKE ACTUATOR, NO.3
44785CGASKET, BRAKE BOOSTER
47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47201CYLINDER SUB-ASSY, BRAKE MASTER
47201DUNION, BRAKE MASTER CYLINDER, NO.1
47201EUNION, BRAKE MASTER CYLINDER, NO.2
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)
47210JGASKET(FOR MASTER CYLINDER)
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
47210TBOLT(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47270ACOVER ASSY, BRAKE MASTER CYLINDER
47278ACOVER, BRAKE MASTER CYLINDER
47950DACCUMULATOR ASSY, BRAKE BOOSTER
47950ESPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)
47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)
47955APIPE, BRAKE BOOSTER ACCUMULATOR
47960APUMP ASSY, BRAKE BOOSTER
47960BRING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
47960CSPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
47962ACOLLAR, BRAKE BOOSTER PUMP
47963ASHAFT, BRAKE BOOSTER PUMP
47964AWASHER, BRAKE BOOSTER PUMP
47965ABUSH, BRAKE BOOSTER PUMP
47967ABRACKET, BRAKE BOOSTER PUMP, NO.1
47967CBRACKET, BRAKE BOOSTER PUMP, NO.2
47967DBRACKET, BRAKE BOOSTER PUMP, NO.3
47968ABRACKET, BRAKE BOOSTER PUMP, NO.2
47997ALABEL, ACCUMULATOR CAUTION, NO.1
89639BWIRE, BRAKE CONTROL
9014940006
main90149-40006
9017606023
main90176-06023
9017908017
main90179-08017
9017910065
main90179-10065
9046400657
main90464-00657
9046707117
main90467-07117
91511B0610
main91511-B0610
9161160665
main91611-60665
9331915008
main93319-15008
9413060500
main94130-60500
51 parts on this diagram · 1 diagram in section
