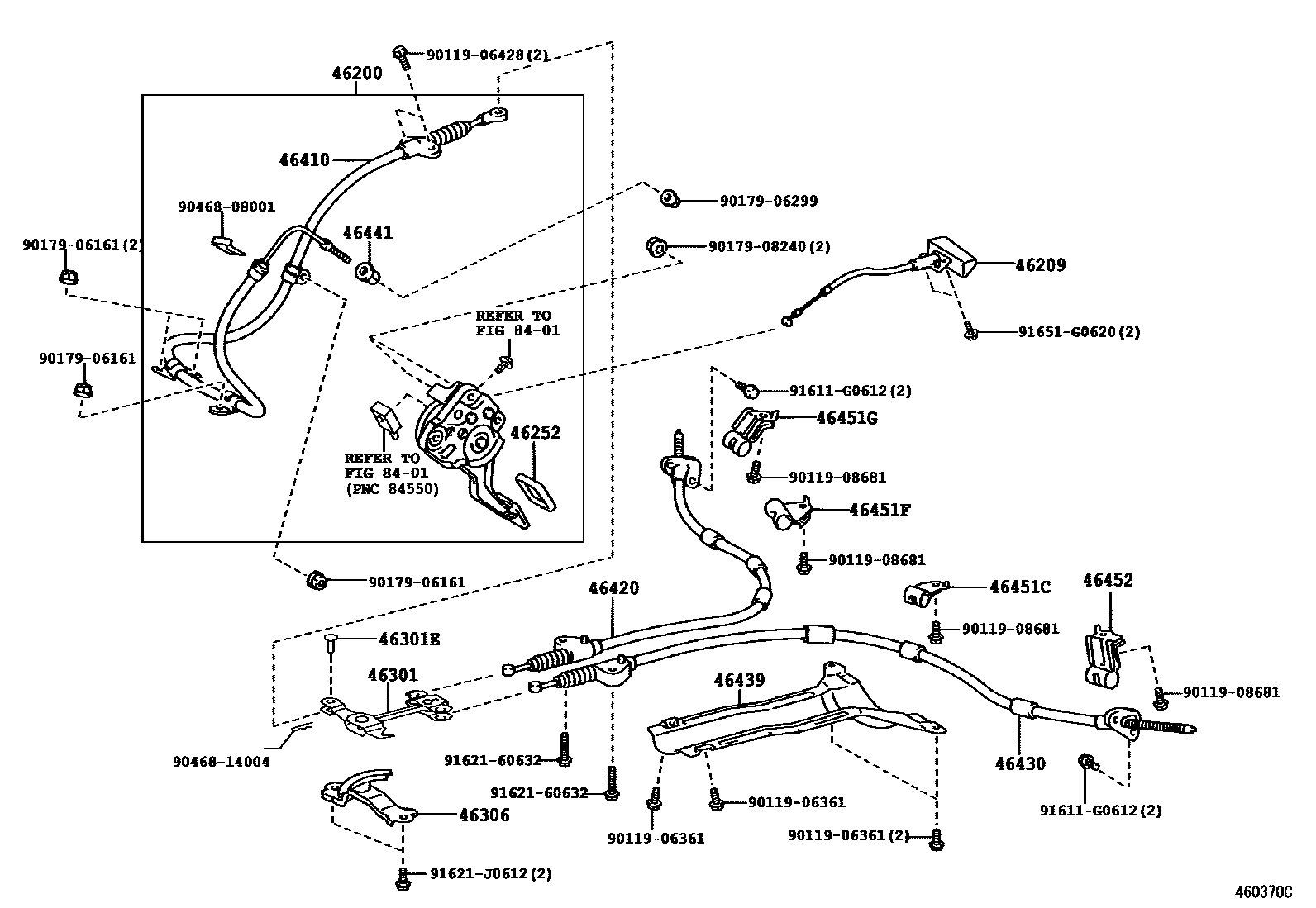

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-24020iUZZ40200508

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-24020-A0iUZZ40200101-200508

ECRU,TRIM0#

main46209-24020-C0iUZZ40200101-200508

BLACK,TRIM20,21

main46209-24020-D0iUZZ40200608-200611

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33

main46209-24020-E0iUZZ40200508

CAMEL,TRIM4#

main46209-24030-D0iUZZ40200111-200112

NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21

46252PAD, PARKING PEDAL

main46252-50010iUZZ40200508

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-24010iUZZ40200101-200508

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059iUZZ40200101-200508

46306BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46306-24010iUZZ40200101-200508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-24080iUZZ40200101-200508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24090iUZZ40200101-200508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24090iUZZ40200101-200508

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-30011iUZZ40200101-200508

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iUZZ40200101-200508

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30150iUZZ40200101-200508

46451FBRACKET, CABLE SUPPORT

main46451-30130iUZZ40200101-200508

46451GBRACKET, CABLE SUPPORT

main46451-30140iUZZ40200101-200508

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30160iUZZ40200101-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906361

main90119-06361

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906299

main90179-06299

9017908240

main90179-08240

9046808001

main90468-08001

9046814004

main90468-14004

91611G0612

main91611-G0612

9162160632

main91621-60632

91621J0612

main91621-J0612

91651G0620

main91651-G0620

28 parts on this diagram · 2 diagrams in section
