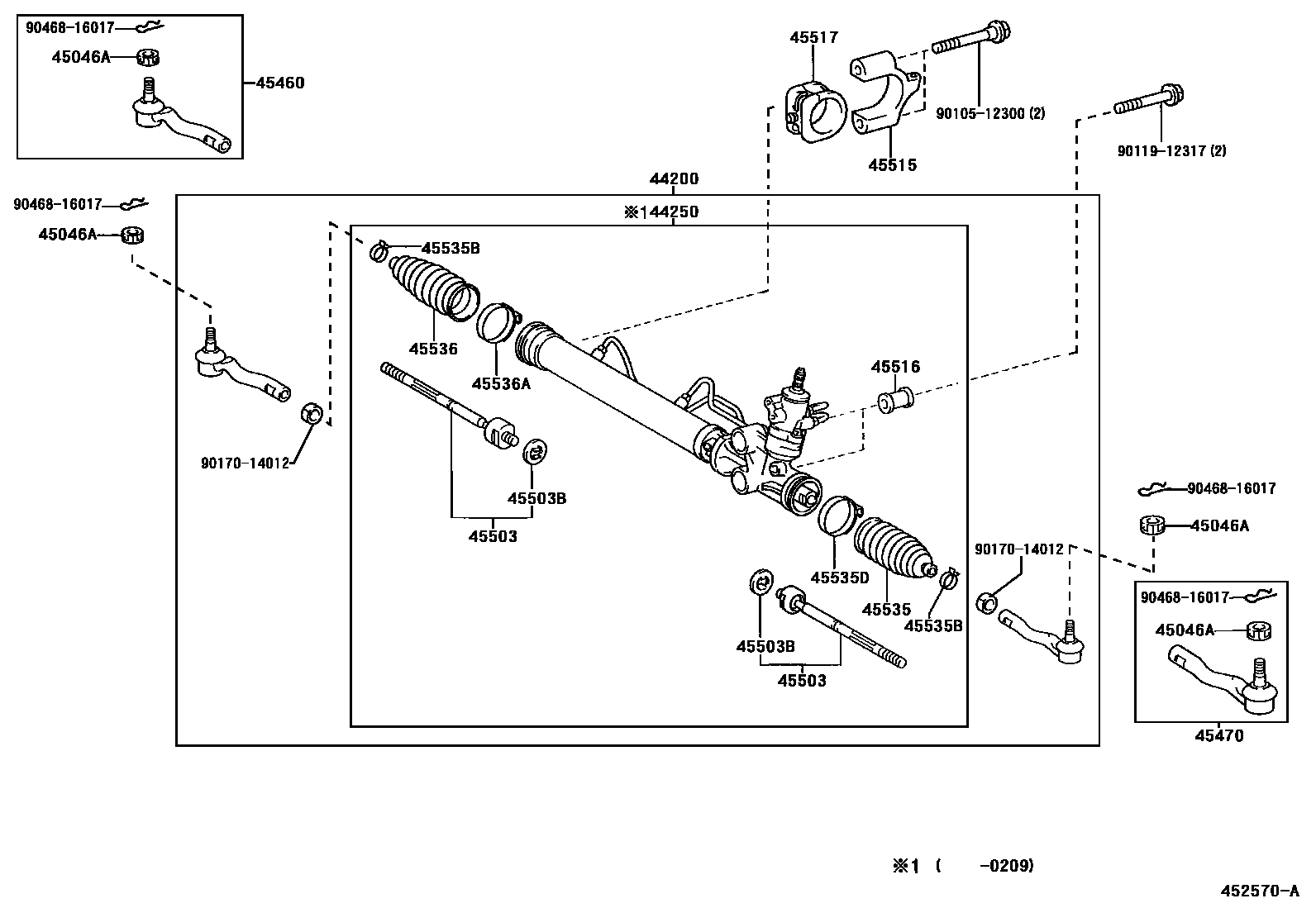

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-24200iUZZ40200101-200508

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-24180iUZZ40..5FC200101-200209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iUZZ40200101-200508

45460ROD ASSY, TIE, RH

main45460-59015iUZZ40200101-200508

45470ROD ASSY, TIE, LH

main45470-59015iUZZ40200101-200508

45503END SUB-ASSY, STEERING RACK

main45503-29795×2iUZZ40200101-200508

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007×2iUZZ40200101-200508

OD=38

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-30080iUZZ40200101-200508

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-30060×2iUZZ40200101-200508

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-30050iUZZ40200101-200508

45535BOOT, STEERING RACK, NO.1

main45535-30010iUZZ40200101-200508

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19012×2iUZZ40..5FC200101-200204

main90467-19019×2iUZZ40200204-200508

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-49004iUZZ40200101-200508

45536BOOT, STEERING RACK, NO.2

main45535-30010iUZZ40200101-200508

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-49004iUZZ40200101-200508

9010512300

main90105-12300

9011912317

main90119-12317

9017014012

main90170-14012

9046816017

main90468-16017

19 parts on this diagram · 2 diagrams in section
