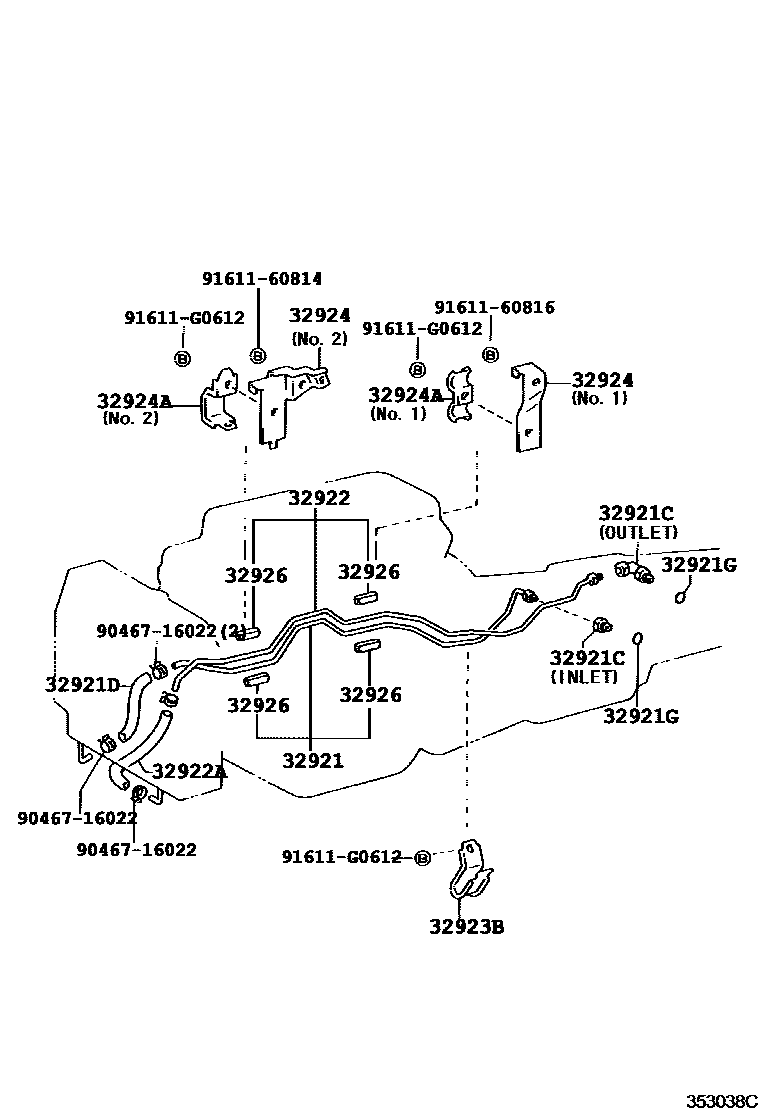

OIL COOLER & TUBE (ATM)

0001 1A650E 0002 1A761E

32921TUBE, OIL COOLER INLET, NO.1

main32921-24220iUZZ40200508

main32921-30790iUZZ40200101-200508

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iUZZ40200101-200508

INLET

main90407-16009iUZZ40200101-200508

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17083iUZZ40200508

main90445-17096iUZZ40200101-200508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUZZ40200101-200508

main90301-11030×2iUZZ40200508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-24230iUZZ40200508

main32922-30790iUZZ40200101-200508

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17134iUZZ40200101-200508

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-50010iUZZ40200101-200508

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-50030iUZZ40200101-200508

NO.1

main32924-50020iUZZ40200101-200508

NO.2

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-50020iUZZ40200101-200508

NO.2

main90462-12074iUZZ40200508

NO.1

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iUZZ40200101-200508

L=35,ID=10

main32926-50010×2iUZZ40200508

L=35,ID=12,NO.1

9046716022

main90467-16022

9161160814

main91611-60814

9161160816

main91611-60816

91611G0612

main91611-G0612

14 parts on this diagram · 2 diagrams in section
