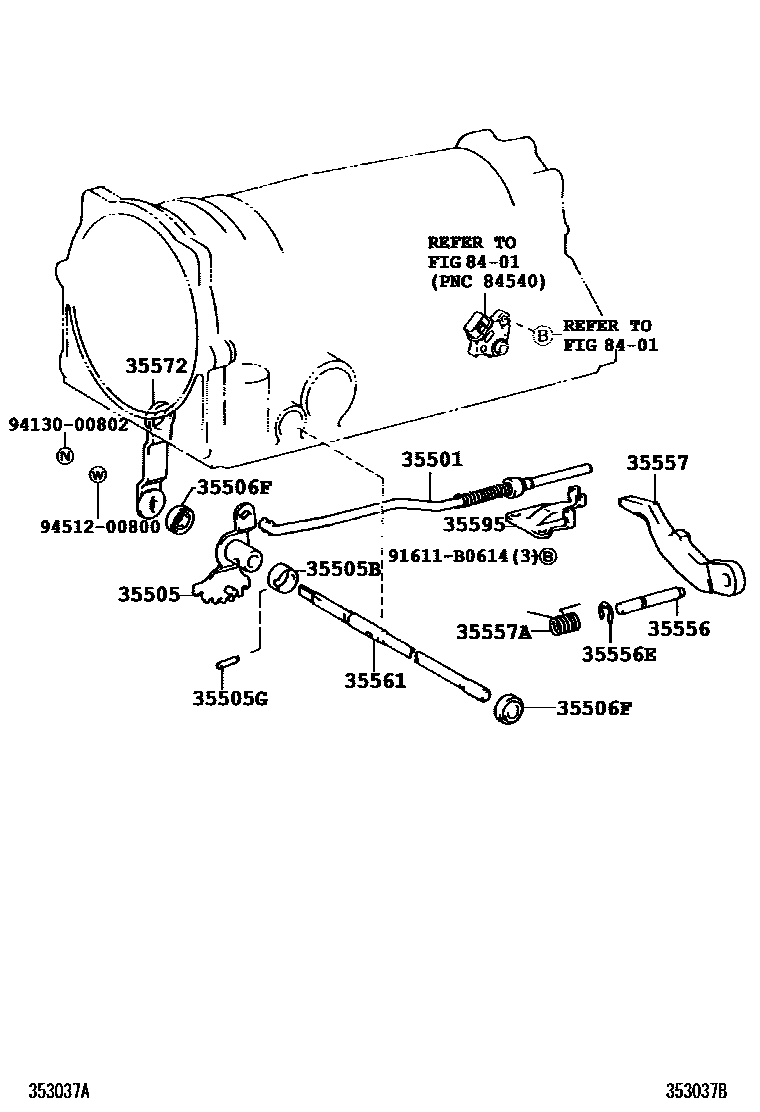

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A650E 0002 1A761E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30020iUZZ40200101-200508

main35501-50010iUZZ40200508

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50020iUZZ40200101-200508

main35505-53030iUZZ40200508

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iUZZ40..5FC200101-200302

main90560-20025iUZZ40200302-200508

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iUZZ40200101-200508

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUZZ40200101-200508

35556SHAFT, PARKING LOCK PAWL

main35556-30030iUZZ40200101-200508

main35556-60020iUZZ40200508

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUZZ40200101-200508

35557PAWL, PARKING LOCK

main35590-30010iUZZ40200101-200508

main35590-50010iUZZ40200508

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03065iUZZ40200101-200508

main90949-03130iUZZ40200508

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iUZZ40200101-200508

main35561-50020iUZZ40200508

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iUZZ40200508

main35572-30080iUZZ40200101-200508

35595BRACKET, PARKING LOCK PAWL

main35595-30020iUZZ40200101-200508

main35595-50010iUZZ40200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
