TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

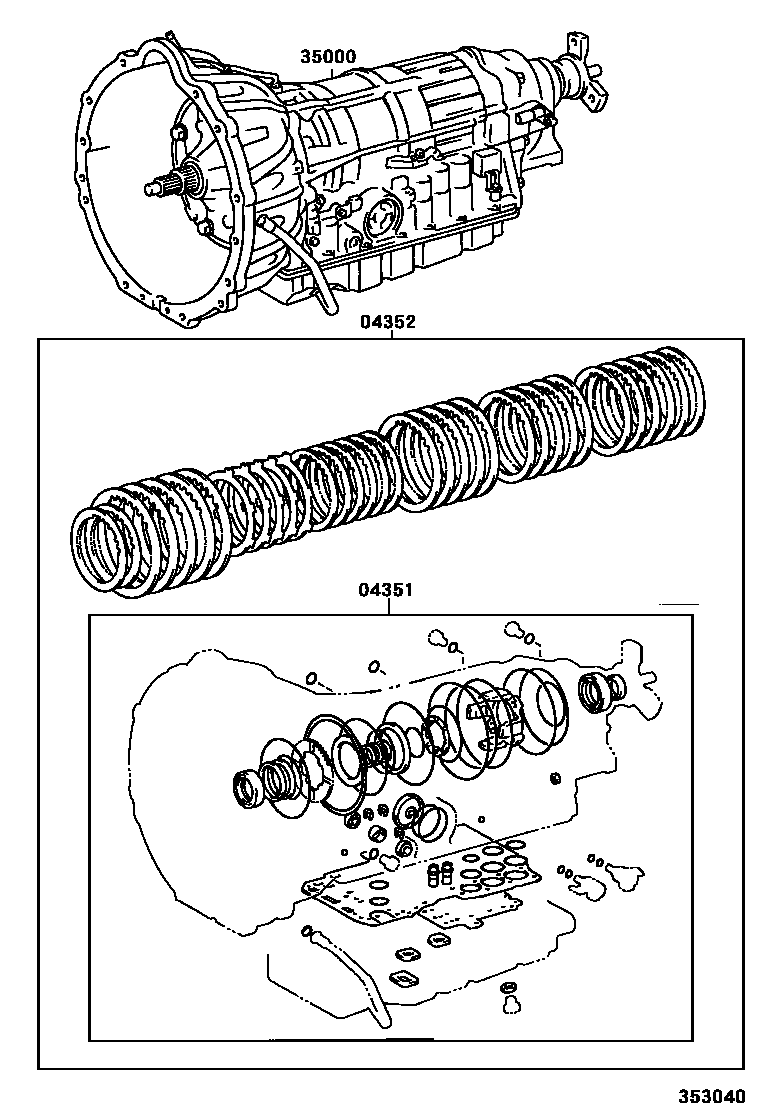

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30490i200101-200210

main04351-30491i200210-200508

main04351-30990i200508-200708

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-30070i200101-200508

main04352-30580i200508

35000TRANSMISSION ASSY, AUTOMATIC

main35000-24420i200101-200508

main35000-50150i200508

A761E

3 parts on this diagram · 2 diagrams in section
