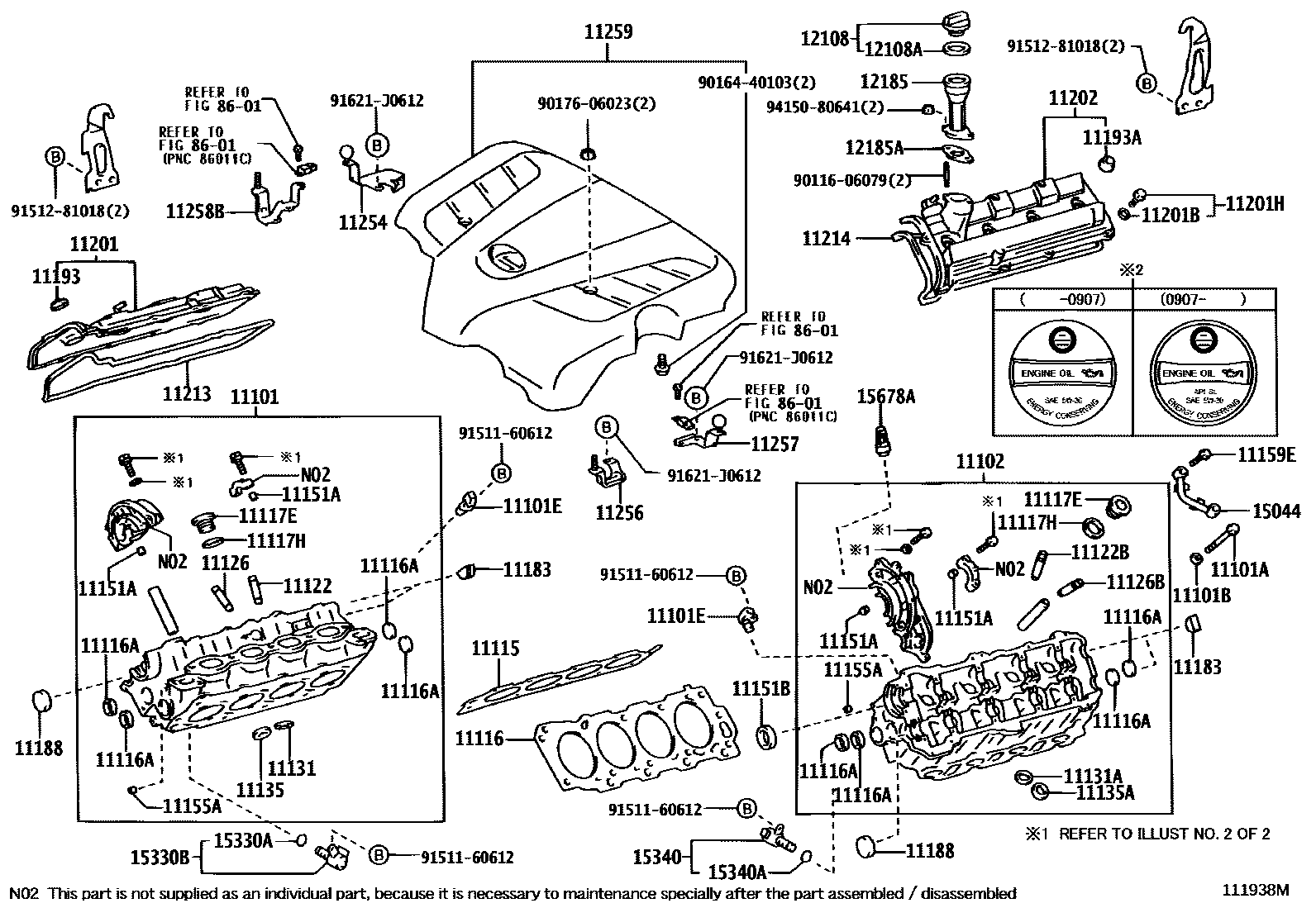

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11102HEAD, CYLINDER, LH
sub11102-59066
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
11155APIN, RING W/HEAD
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11254BRACKET, V-BANK COVER, NO.1
11256BRACKET, V-BANK COVER, NO.2
11257BRACKET, V-BANK COVER, NO.3
11258BBRACKET, V-BANK COVER, NO.4
11259COVER, V-BANK
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO)
NEIMAN MARCUS X'MAS EDITION(USA)
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
8601
9011606079
main90116-06079
9016440103
main90164-40103
9017606023
main90176-06023
9151160612
main91511-60612
9151281018
main91512-81018
91621J0612
main91621-J0612
9415080641
main94150-80641
55 parts on this diagram · 2 diagrams in section
