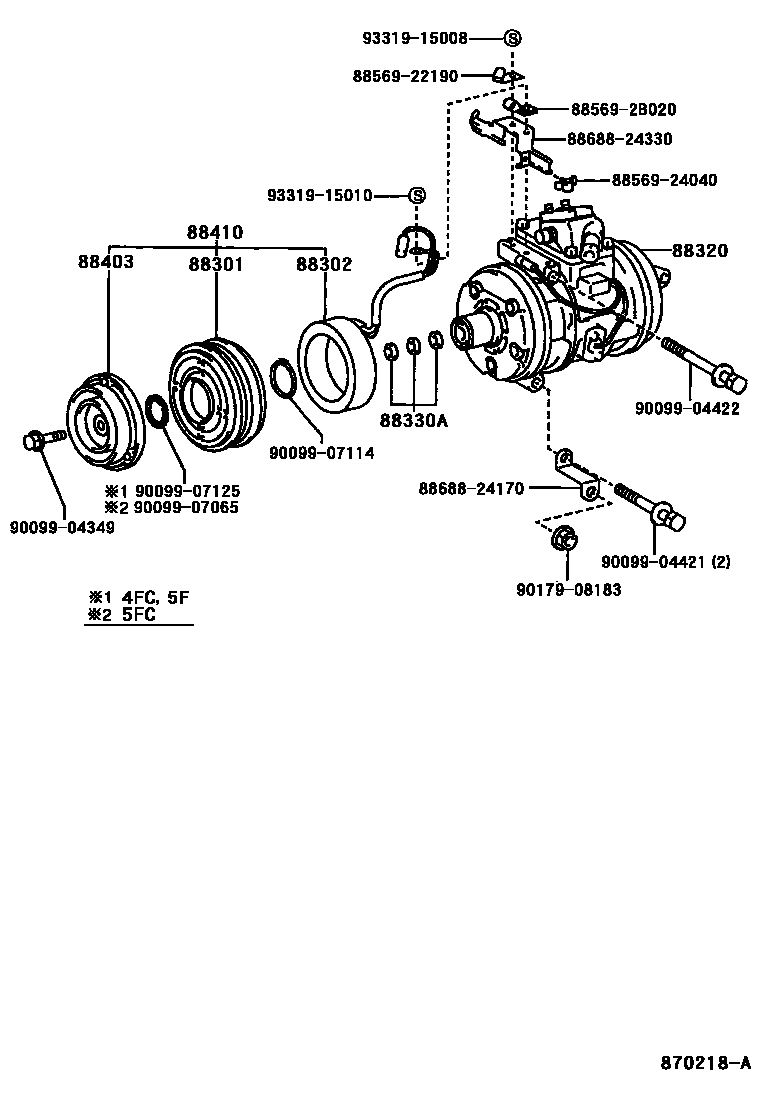

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14140iJZZ31199201-199308

main88412-30380iUZZ30199104

main88412-30410iJZZ31199308

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-24010iUZZ30199104-199308

main88411-24020iJZZ31..4FC199108-199201

main88411-24030iUZZ30199308

main88411-2B090iJZZ31199308

88320COMPRESSOR ASSY, COOLER

main88320-24090iUZZ30199104-199308

main88320-24100iJZZ31..4FC199108-199201

main88320-24120iJZZ31199308

main88320-24140iUZZ30199308

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iJZZ31,UZZ30..4FC199104-199201

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iJZZ31,UZZ30..4FC199104-199201

main88403-30290iJZZ31,UZZ30199308

88410CLUTCH ASSY, MAGNET

main88410-14230iJZZ31199608

main88410-24010iUZZ30199104-199308

main88410-24020iJZZ31199108-199308

main88410-24030iJZZ31199308-199608

main88410-24040iUZZ30199308

8856922190CLAMP (FOR COOLER RELAY)

main88569-22190

8856924040CLAMP (FOR COOLER RELAY)

main88569-24040

885692B020CLAMP (FOR COOLER RELAY)

main88569-2B020

8868824170BRACKET, COOLER DIAPHRAGM

main88688-24170

8868824330BRACKET, COOLER DIAPHRAGM

main88688-24330

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9017908183

main90179-08183

9331915008

main93319-15008

9331915010

main93319-15010

20 parts on this diagram · 3 diagrams in section
