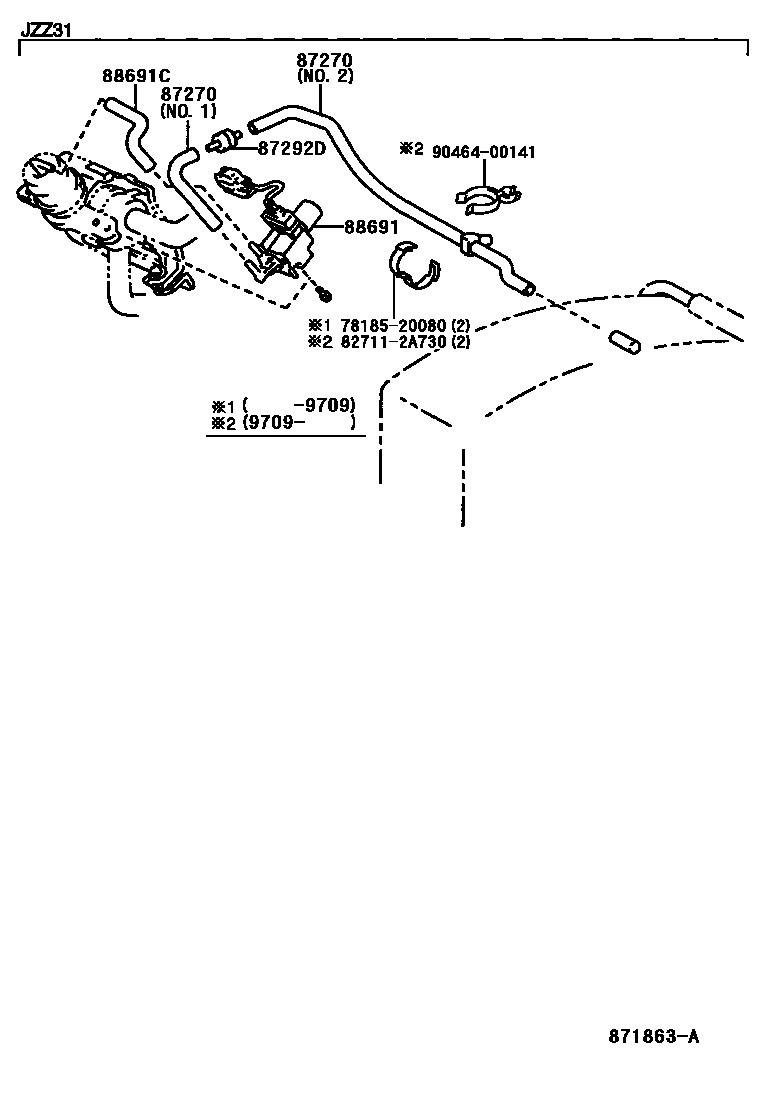

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

87270PIPE ASSY, VACUUM

main87270-24040iJZZ31,UZZ30199104

NO.1

main87270-24050iJZZ31199108-199709

NO.2

main87270-24080iJZZ31199709

NO.2

main90999-92003iUZZ30199104

NO.2

87292DCONNECTOR, VACUUM PIPE

main88684-22010iJZZ31,UZZ30199104

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-24060iJZZ31,UZZ30199104

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90099-92002iJZZ31,UZZ30199104-199401

*H,L=70,MARK=#*

7818520080SHAFT, ACCELERATOR PEDAL SUPPORT

main78185-20080

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9046400141

main90464-00141

7 parts on this diagram · 2 diagrams in section
