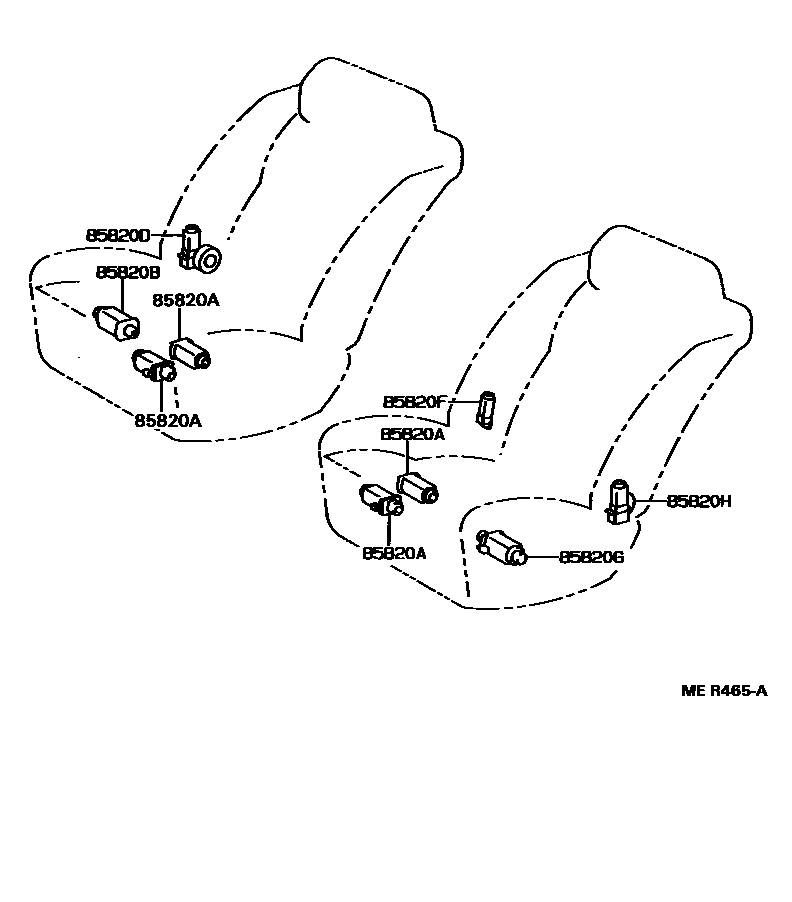

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-14030×2iJZZ31,UZZ30199104-199401

main85820-24110×2iJZZ31,UZZ30199401-200007

PASSENGER SIDE

main85820-24120×2iJZZ31,UZZ30199401-200007

DRIVER SIDE

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-24060iJZZ31,UZZ30199104-199401

main85820-24090iJZZ31,UZZ30199401-200007

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85820-24040iJZZ31,UZZ30199104-199708

main85820-24041iJZZ31,UZZ30199708-200007

85820FMOTOR ASSY, POWER SEAT (FOR SIDE SUPPORT)

main85820-50120iJZZ31,UZZ30199104-199401

85820GMOTOR ASSY, POWER SEAT

main85820-24050iJZZ31,UZZ30199104-199401

main85820-24100iJZZ31,UZZ30199401-200007

85820HMOTOR ASSY, POWER SEAT

main85801-24010iUZZ30199104-199708

main85801-24011iJZZ31; UZZ30199708-200007

W(LEATHER SEAT)

main85820-24030iJZZ31199108-199708

main85820-24031iJZZ31199708-200007

6 parts on this diagram · 1 diagram in section
