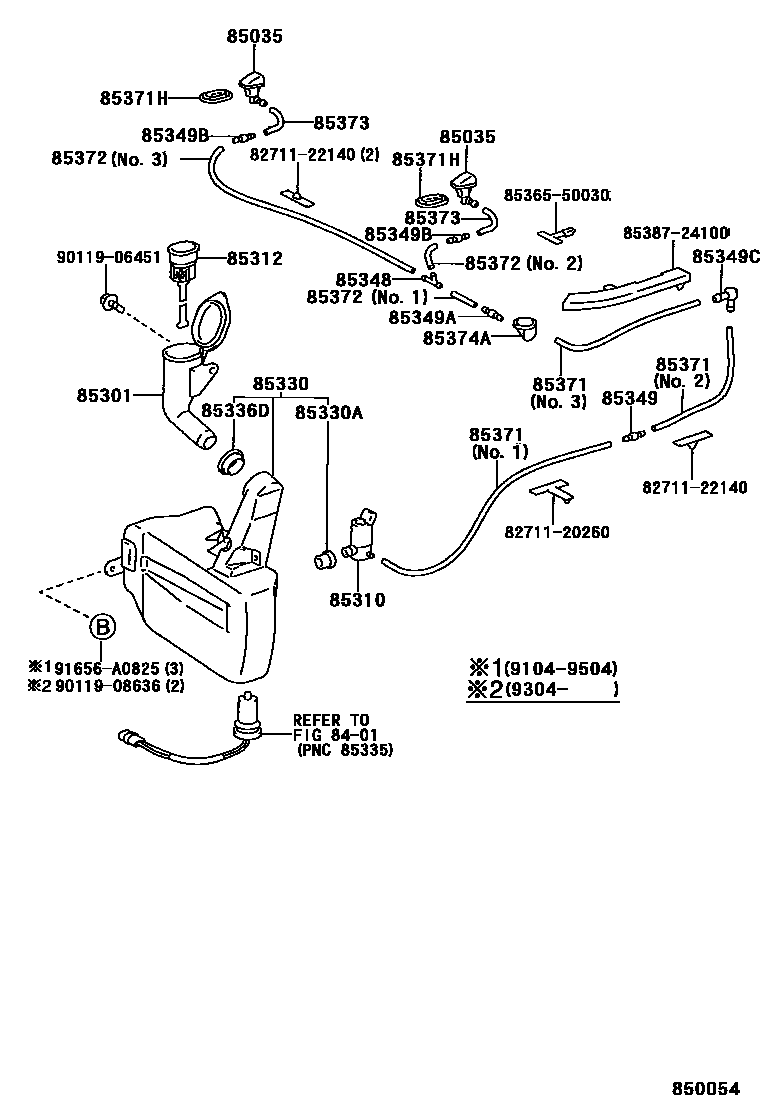

WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85035NOZZLE SUB-ASSY, WASHER

main85385-22020-A2×2iJZZ31,UZZ30199401-199808

SUPER WHITE PEARL M,051

main85385-24010-A0×2iJZZ31,UZZ30199401-199608

SUPER WHT PEARL MICA,051

main85385-24020-A0×2iJZZ31,UZZ30199104-199401

SUPER WHT PEARL MICA,051

main85385-24020-A1×2iJZZ31,UZZ30199808-200007

WHITE PM.,057

main85385-24020-B0×2iJZZ31,UZZ30199209-199401

BLUISH GRAY M.,182

main85385-24020-B1×2iJZZ31,UZZ30199401-199808

BLUISH SILVER M.,1A0

main85385-24020-B2×2iJZZ31,UZZ30199808-200007

SILVER ME.,1C0

main85385-24020-C0×2iJZZ31,UZZ30199401-199608

BLACK,202

main85385-24020-D0×2iJZZ31,UZZ30199104-199401

RED MICA,3K3

main85385-24020-D1×2iJZZ31,UZZ30199401-200007

SUPER RED 4,3L2

main85385-24020-D2×2iJZZ31,UZZ30199508-199709

WINE RED MC.,3L4

main85385-24020-D3×2iJZZ31,UZZ30199608-199808

LT. GRAISH ROSE OP,3K7

main85385-24020-D4×2iJZZ31,UZZ30199709-199908

ROSE RED MC.,3M9

main85385-24020-D5×2iJZZ31,UZZ30199908-200007

RED MC.,3N1

main85385-24020-E0×2iJZZ31,UZZ30199104-199401

BEIGE METALLIC,4K9

main85385-24020-E1×2iJZZ31,UZZ30199908-200007

GRAYISH BROWN ME.,4P9

main85385-24020-G0×2iJZZ31,UZZ30199104-199401

BLUISH GREEN M.I.O,6M2

main85385-24020-G1×2iJZZ31,UZZ30199104-199401

GRAYISH GREEN M.,6M3

main85385-24020-G2×2iJZZ31,UZZ30199401-199508

MI. GR. GREEN MCGR,6N1

main85385-24020-G3×2iJZZ31,UZZ30199608-199709

DK. GREEN M.M.,6P2

main85385-24020-G4×2iJZZ31,UZZ30199709-200007

DK. GREEN MC.,6Q7

main85385-24020-H0×2iUZZ30..USA199504-199505

SPECIAL EMPLOYED VEHICLE,DEEP TEAL ME.,752

main85385-24020-J0×2iJZZ31,UZZ30199104-199401

DARK BLUE MCFP,8J5

main85385-24020-J1×2iJZZ31,UZZ30199608-199808

BLUE M.M,8L5

main85385-30010-G1×2iJZZ31,UZZ30199401-199608

BL.GREEN MIO.,6M2

main85385-30010-J0×2iJZZ31,UZZ30199401-199608

DK.BLUE MCFP,8J5

main85385-30020-E1×2iJZZ31,UZZ30199306-199608

BEIGE ME,4K9

85301INLET SUB-ASSY, WASHER

main85301-24010iJZZ31,UZZ30199104

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20190iJZZ31,UZZ30199104

85312PACKING, WINDSHIELD WASHER TANK

main85312-24010iJZZ31,UZZ30199104

85330JAR ASSY, WINDSHIELD WASHER

main85315-24030iJZZ31,UZZ30..USA199104-199209

main85315-24080iJZZ31,UZZ30..CND199104-199209

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJZZ31,UZZ30199104

85336DPACKING, WINDSHIELD WASHER JAR

main85336-14120iJZZ31,UZZ30199407

main85336-24020iJZZ31,UZZ30199401-199407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iJZZ31,UZZ30199104

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480iJZZ31,UZZ30199104

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22470iJZZ31,UZZ30199104

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122×2iJZZ31,UZZ30199104-199808

main85375-10260×2iJZZ31,UZZ30199808

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85375-24100iJZZ31,UZZ30199104

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iJZZ31,UZZ30; JZZ31,UZZ30..4FC,5F199104

L=1100(*H,L=550),NO.3; L=300,NO.1

main90099-33712iJZZ31,UZZ30199104

L=1300,NO.2

85371HCOVER, WASHER NOZZLE SERVICE HOLE

main85371-50010×2iJZZ31,UZZ30199104

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iUZZ30199709

L=1450(*H,L=50)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iJZZ31,UZZ30199401

L=1450(*H,L=200)

main90099-33723×2iJZZ31,UZZ30199104-199401

L=1450(*H,L=180)

85374APROTECTOR, WASHER HOSE

main85374-50010iJZZ31,UZZ30199104

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

8536550030INSULATOR, WINDSHIELD WASHER JAR

main85365-50030

8538724100CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-24100

9011906451

main90119-06451

9011908636

main90119-08636

91656A0825

main91656-A0825

25 parts on this diagram · 1 diagram in section
