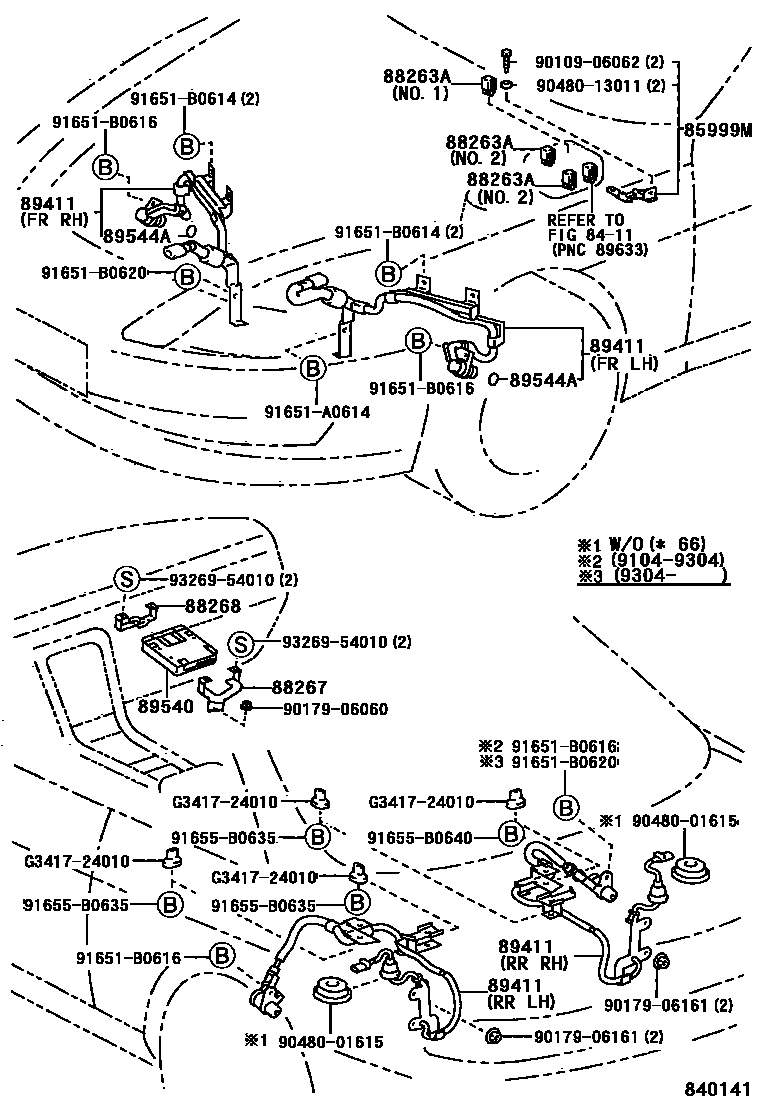

ABS & VSC

0001 1 0002 1 0003 1

8411TRACTION CONTROL

→ Go to FIG 84-11

85999MBRACKET, RELAY

main85999-24050iJZZ31,UZZ30199104

88263ARELAY, SKID CONTROL

main88263-24020iJZZ31,UZZ30199104

NO.1(BROWN)

main88263-24030iJZZ31,UZZ30199104-199201

NO.2

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-14140iJZZ31,UZZ30..USA199508-199608

main88267-24040iJZZ31,UZZ30199104-199201

main88267-24060iJZZ31,UZZ30..4FC199104-199508

W(TRACTION CONTROL)

main88267-24070iJZZ31,UZZ30..4FC199508-199608

W(TRACTION CONTROL)

main88267-24090iJZZ31,UZZ30..USA199608-199709

main88267-24100iJZZ31..4FC; UZZ30..CND; UZZ30..USA199608-199709

W(SEAT HEATER); W(TRACTION CONTROL)

main88267-24110iJZZ31,UZZ30199709

W(TRACTION CONTROL)

main89634-24050iJZZ31,UZZ30199709

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-14140iJZZ31,UZZ30..USA199508-199608

main88268-24040iJZZ31;UZZ30..USA199201-199508

main88268-24060iJZZ31,UZZ30..4FC199104-199508

W(TRACTION CONTROL)

main88268-24070iJZZ31,UZZ30..4FC199508-199608

W(TRACTION CONTROL)

main88268-24090iJZZ31,UZZ30..USA199608-199709

main88268-24100iJZZ31..4FC; UZZ30..CND; UZZ30..USA199608-199709

W(SEAT HEATER); W(TRACTION CONTROL)

main88268-24110iJZZ31,UZZ30199709

W(TRACTION CONTROL)

main89634-24060iJZZ31,UZZ30199709

89411SENSOR, SPEED

main89542-14020iJZZ31,UZZ30199303-199608

FRONT RH

main89542-14030iJZZ31,UZZ30199608

FRONT RH

main89542-24010iJZZ31,UZZ30199104-199303

FRONT RH

main89543-14020iJZZ31,UZZ30199303-199608

FRONT LH

main89543-14030iJZZ31,UZZ30199608

FRONT LH

main89543-24010iJZZ31,UZZ30199104-199303

FRONT LH

main89545-24010iJZZ31,UZZ30199104-199304

REAR RH

main89545-24020iJZZ31,UZZ30199608

REAR RH

main89545-30020iJZZ31,UZZ30199304-199608

REAR RH

main89546-24010iJZZ31,UZZ30199104-199304

REAR LH

main89546-30020iJZZ31,UZZ30199304-199608

REAR LH

main89546-30030iJZZ31,UZZ30199608

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-24010iJZZ31,UZZ30199104-199201

main89541-24050iUZZ30199104-199108

W(TRACTION CONTROL)

main89541-24051iJZZ31,UZZ30..4FC199108-199508

W(TRACTION CONTROL)

main89541-24060iJZZ31,UZZ30..USA199608

main89541-24070iJZZ31..4FC; UZZ30..CND; UZZ30..USA199608-199709

W(SEAT HEATER); W(TRACTION CONTROL)

main89541-24080iJZZ31,UZZ30199709

W(TRACTION CONTROL)

main89541-30020iJZZ31,UZZ30..USA199401-199608

main89541-30040iJZZ31,UZZ30..4FC199508-199608

W(TRACTION CONTROL)

89544ARING, O (FOR SKID CONTROL SENSOR)

main96721-19016iJZZ31,UZZ30199104-199303

9010906062

main90109-06062

9017906060

main90179-06060

9017906161

main90179-06161

9048001615

main90480-01615

9048013011

main90480-13011

91651A0614

main91651-A0614

91651B0614

main91651-B0614

91651B0616

main91651-B0616

91651B0620

main91651-B0620

91655B0635

main91655-B0635

91655B0640

main91655-B0640

9326954010

main93269-54010

G341724010

mainG3417-24010

21 parts on this diagram · 3 diagrams in section
