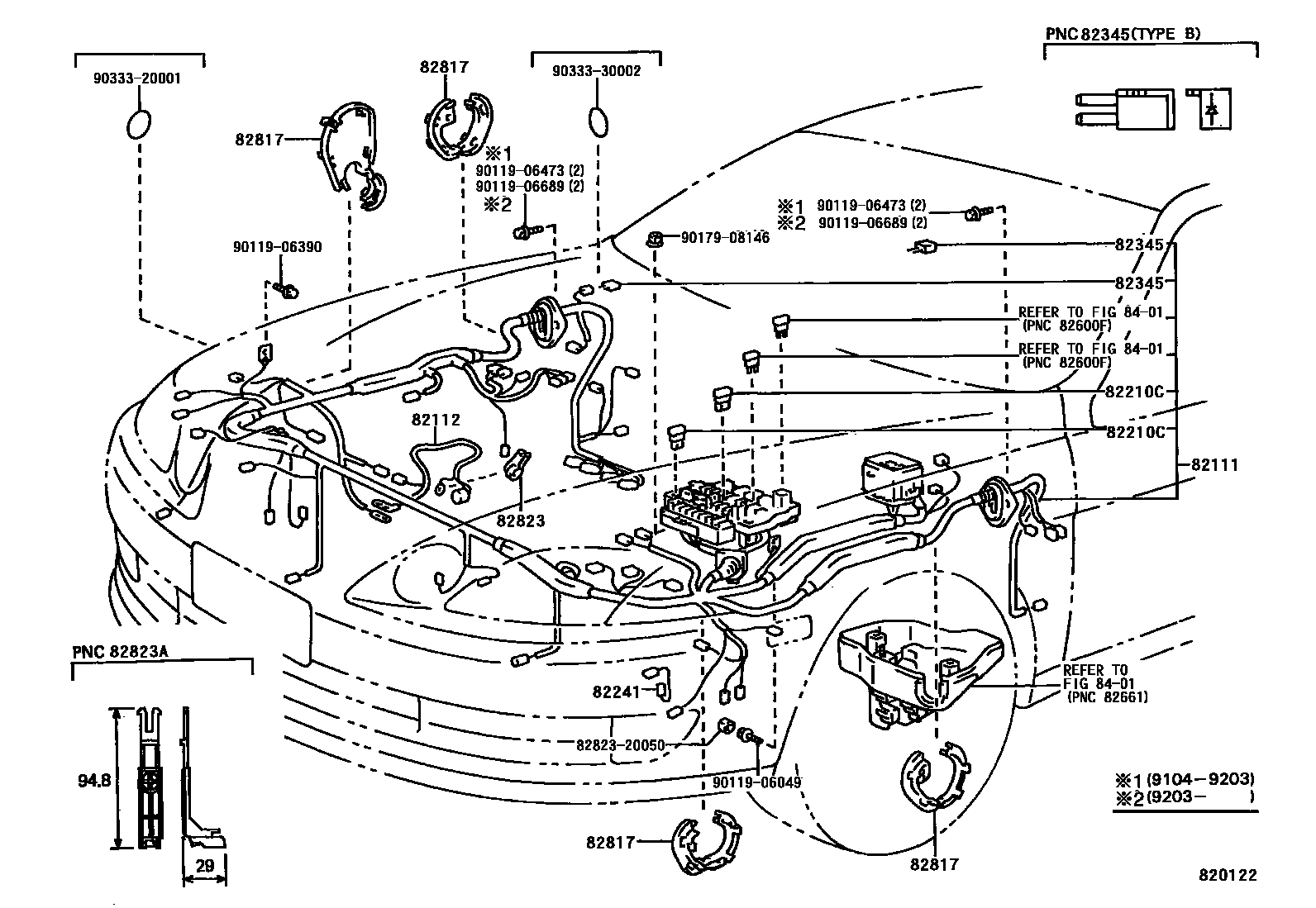

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
82112WIRE, ENGINE ROOM, NO.2
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,W(TRACTION CONTROL)
30A,TERM.:FEMALE,PNK,ENGINE SIDE
40A,TERM.:FEMALE,GRN
60A,TERM.:FEMALE,YEL
60A,TERM.:MALE,YEL
50A,TERM.:FEMALE,RED
100A,TERM.:MALE,BLUE,TYPE A:REFER TO ILLUSTRATION
120A,TERM.:MALE,WHT,TYPE A:REFER TO ILLUSTRATION
100A,TERM.:MALE,BLUE,TYPE B:REFER TO ILLUSTRATION
100A,TERM.:MALE,BLUE
120A,TERM.:MALE,WHT,TYPE B:REFER TO ILLUSTRATION
150A,TERM.:MALE,PUR
30A,TERM.:FEMALE,PNK,COWL PANEL SIDE
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
20A,YELLOW
82241WIRING ASSY, HEADLAMP JUNCTION
82345DIODE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
82817PROTECTOR, WIRING HARNESS, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
82823CAP, TERMINAL, NO.1
82823ACAP, TERMINAL, NO.2
8401SWITCH & RELAY & COMPUTER
8282320050CAP, TERMINAL, NO.1
main82823-20050
9011906049
main90119-06049
9011906390
main90119-06390
9011906473
main90119-06473
9011906689
main90119-06689
9017908146
main90179-08146
9033320001
main90333-20001
9033330002
main90333-30002
17 parts on this diagram · 12 diagrams in section
