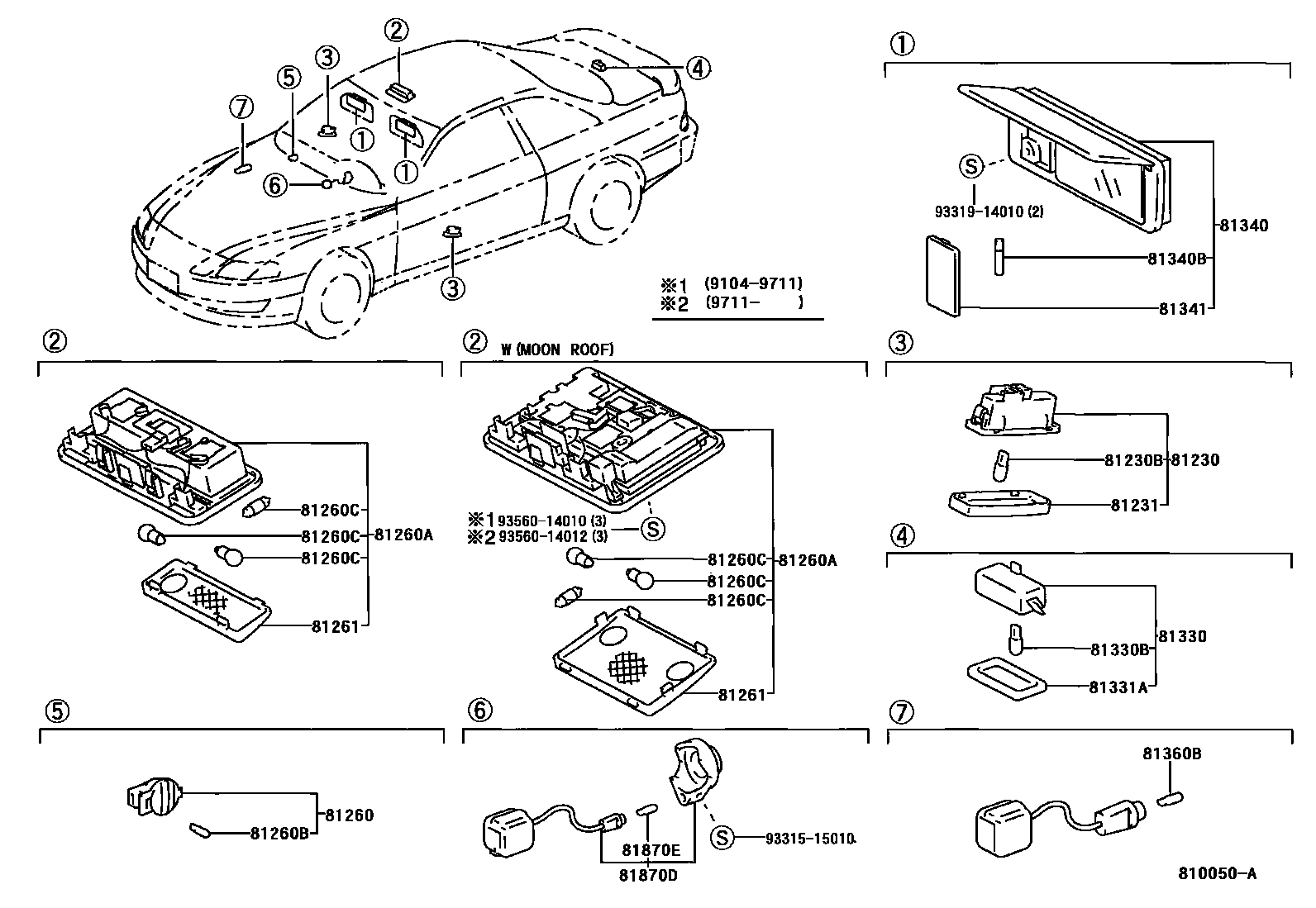

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81231LENS, COURTESY LAMP
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
MIDIUM GRAY,TRIM1#
SPRUCE,TRIM6#
IVORY,TRIM0#
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
MD. GRAY,TRIM2#
SHADOW GRAY,TRIM2#
LI. SPRUCE,TRIM6#
W(MOON ROOF),MIDIUM GRAY,TRIM1#
W(MOON ROOF),SPRUCE,TRIM6#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),IVORY,TRIM0#,07,08; W(MOON ROOF),IVORY,TRIM07,08
W(MOON ROOF),MD. GRAY,TRIM2#
W(MOON ROOF),SHADOW GRAY,TRIM2#
W(MOON ROOF),LI. SPRUCE,TRIM6#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W,MAP
12V 8W,DOOR
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
MIDIUM GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
IVORY,TRIM0#,07,08,LH; IVORY,TRIM07,08,LH
GRAY,TRIM2#,LH
SHADOW GRAY,TRIM2#,LH
LI.SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
SHADOW GRAY,TRIM2#,LH
IVORY,TRIM0#,LH
MEDIUM GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
MD.GRAY,TRIM2#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,07,08,LH; IVORY,TRIM07,08,LH
MD.GRAY,TRIM2#,LH
IVORY,TRIM0#,LH
MEDIUM GRAY,TRIM2#,LH
MEDIUM GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
MIDIUM GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
IVORY,TRIM0#,RH
MD. GRAY,TRIM2#,RH
IVORY,TRIM0#,07,08,RH; IVORY,TRIM07,08,RH
SHADOW GRAY,TRIM2#,RH
IVORY,TRIM0#,RH
SHADOW GRAY,TRIM2#,RH
IVORY,TRIM0#,RH
MEDIUM GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
IVORY,TRIM0#,RH
MD.GRAY,TRIM2#,RH
SPRUCE,TRIM6#,RH
IVORY,TRIM0#,07,08,RH; IVORY,TRIM07,08,RH
MD.GRAY,TRIM2#,RH
IVORY,TRIM0#,RH
MEDIUM GRAY,TRIM2#,RH
MEDIUM GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
12V 1.2W W/O SOCKET
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
9331515010
main93315-15010
9331914010
main93319-14010
9356014010
main93560-14010
9356014012
main93560-14012
21 parts on this diagram · 1 diagram in section
