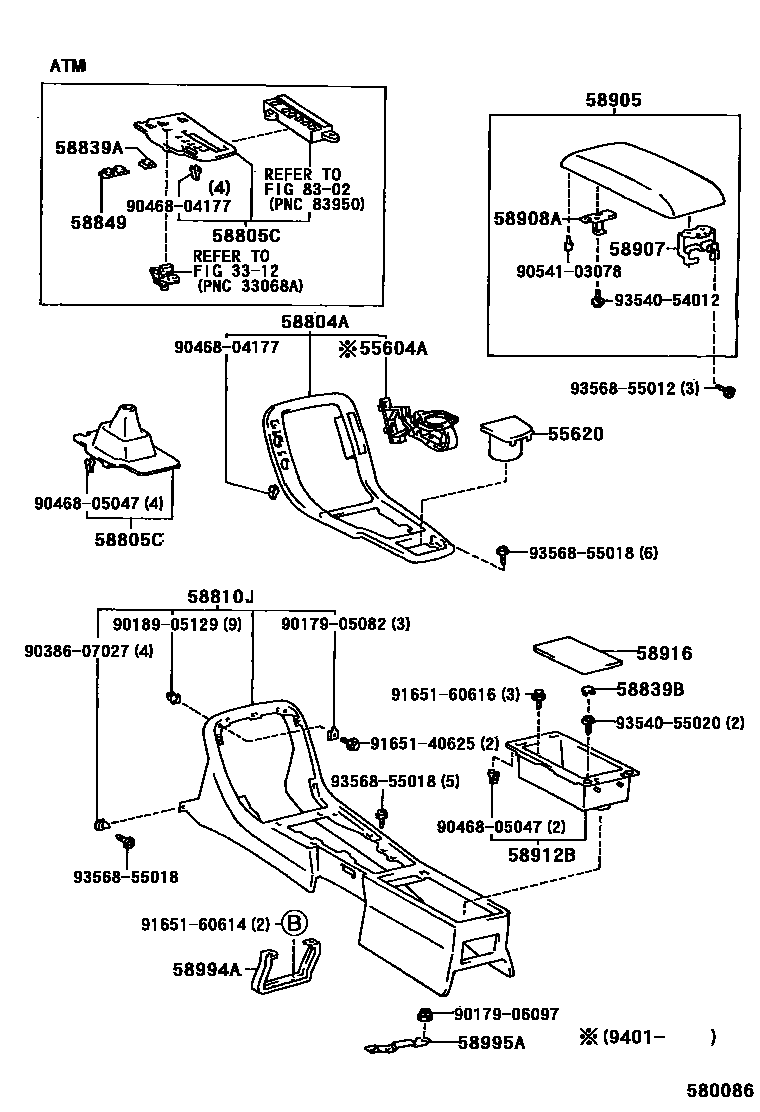

CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
BLACK,TRIM2#
BLACK,TRIM08,2#
BLACK,TRIM0#,2#
OAK,TRIM0#,07
OAK,TRIM07
OAK,TRIM0#
SPRUCE GRAY,TRIM6#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
SHADOW GRAY,TRIM1#
GREIGE,TRIM0#
DARK SPRUCE,TRIM6#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM08,2#
OAK,TRIM07
OAK,TRIM0#
OAK,TRIM0#,07
LI. SPRUCE,TRIM6#
58804APANEL SUB-ASSY, CONSOLE, UPPER
SHADOW GRAY,TRIM1#
GREIGE,TRIM0#
DARK SPRUCE,TRIM6#
BLACK,TRIM08,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
OAK,TRIM0#,07
OAK,TRIM0#
OAK,TRIM07
SPRUCE GRAY,TRIM6#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
W(SEAT HEATER)
W(SEAT HEATER)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(SEAT HEATER)
W(SEAT HEATER)
W(TRACTION CONTROL)
58810JBOX ASSY, CONSOLE
MEDIUM GRAY,TRIM1#
SPRUCE,TRIM6#
IVORY,TRIM0#
IVORY,TRIM0#,07,08
IVORY,TRIM0#
IVORY,TRIM07,08
BLACK,TRIM2#
LI. SPRUCE,TRIM6#
58839ACOVER, CONSOLE BOX HOLE
58839BCOVER, CONSOLE BOX HOLE, NO.2
58849COVER, CONSOLE BOX HOLE, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
LI. SPRUCE,TRIM6#
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
SPRUCE,TRIM6#
W(LEATHER SEAT),IVORY,TRIM0#
W(LEATHER SEAT),IVORY,TRIM0#
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
W(LEATHER SEAT),BLACK,TRIM2#
SPRUCE,TRIM6#
IVORY,TRIM07,08
BLACK,TRIM2#
W(LEATHER SEAT),IVORY,TRIM0#
BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BBOX, REAR CONSOLE, LOWER
58916MAT, BOX BOTTOM
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8302INDICATOR
9017905082
main90179-05082
9017906097
main90179-06097
9018905129
main90189-05129
9038607027
main90386-07027
9046804177
main90468-04177
9046805047
main90468-05047
9054103078
main90541-03078
9165140625
main91651-40625
9165160614
main91651-60614
9165160616
main91651-60616
9354054012
main93540-54012
9354055020
main93540-55020
9356855012
main93568-55012
9356855018
main93568-55018
31 parts on this diagram · 1 diagram in section
