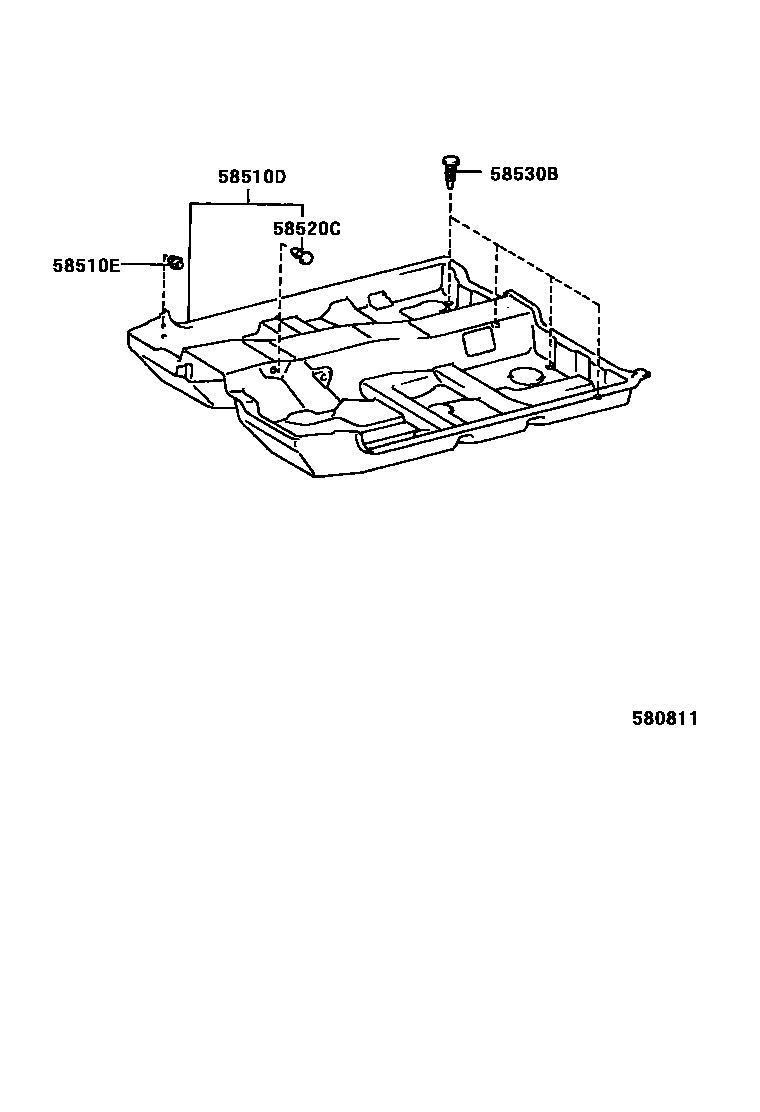

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-24160-03iJZZ31..5F199111-199401

MEDIUM GRAY,TRIM1#

main58510-24160-07iJZZ31..5F199111-199401

SPRUCE,TRIM6#

main58510-24160-08iJZZ31..5F199111-199209

IVORY,TRIM0#

main58510-24160-A0iJZZ31..5F199209-199401

IVORY,TRIM0#

main58510-24160-G1iJZZ31,UZZ30199401-199608

LI. SPRUCE,TRIM6#

main58510-24161-A1iJZZ31; UZZ30199608-199808

IVORY,TRIM0#,07,08; IVORY,TRIM07,08

main58510-24161-C0iJZZ31;UZZ30..5FC199708

BLACK,TRIM2#

main58510-24270-03iJZZ31,UZZ30..4FC199104-199401

MEDIUM GRAY,TRIM1#

main58510-24270-07iJZZ31,UZZ30..4FC199104-199401

SPRUCE,TRIM6#

main58510-24270-08iJZZ31,UZZ30..4FC199104-199209

IVORY,TRIM0#

main58510-24270-A0iJZZ31,UZZ30..4FC199209-199401

IVORY,TRIM0#

58510ERETAINER, FLOOR CARPET

main67921-22020×2iJZZ31,UZZ30199104

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07184×2iJZZ31,UZZ30199801

main90467-08056-01×4iJZZ31,UZZ30199401-199504

BLACK,TRIM0#,2#,6#

main90467-08056-C0×4iJZZ31; UZZ30199608-199801

BLACK,TRIM0#,07,08,2#; BLACK,TRIM07,08,2#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×5iJZZ31,UZZ30..4FC199104-199401

BLACK,TRIM0#,1#,6#

main90467-06016-C0×4iJZZ31,UZZ30199401-199608

BLACK,TRIM0#,2#,6#

4 parts on this diagram · 1 diagram in section
