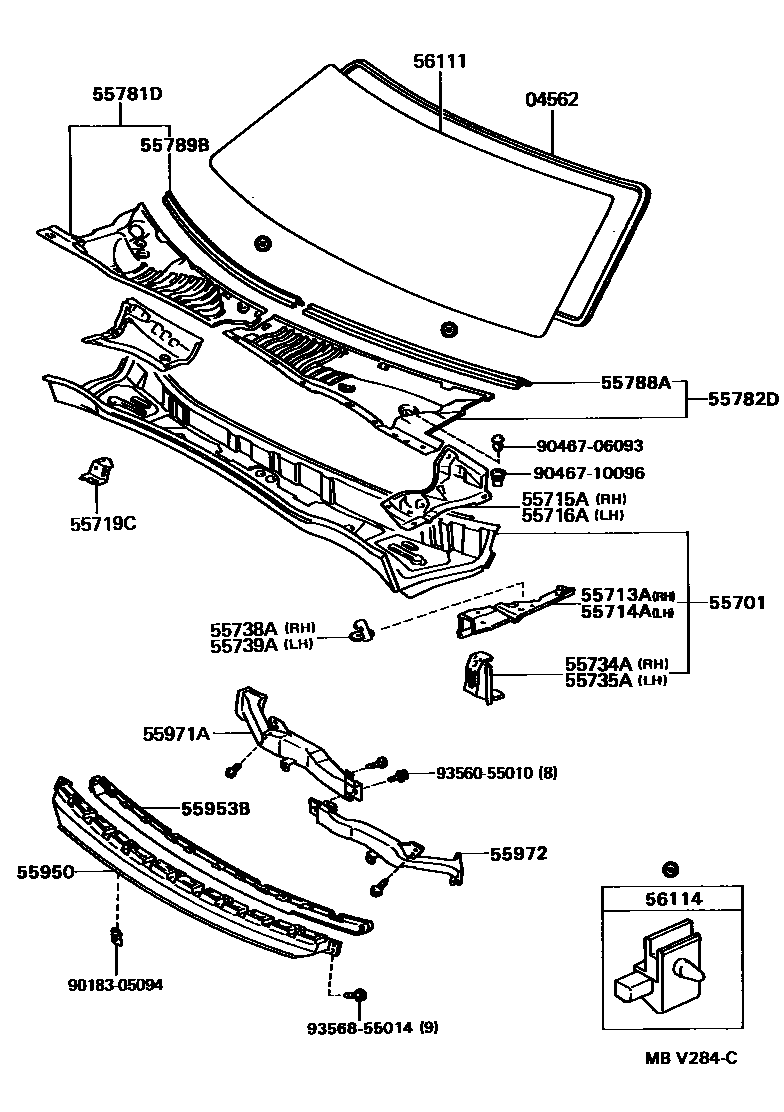

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iJZZ31,UZZ30199104-200007

55701PANEL SUB-ASSY, COWL

main55700-24080iJZZ31199108-199209

main55700-24081iJZZ31199209

main55700-24090iUZZ30199104-199209

main55700-24091iUZZ30199209

55713APANEL, COWL TOP SIDE, RH

main55713-24030iJZZ31,UZZ30199104

55714APANEL, COWL TOP SIDE, LH

main55714-24030iJZZ31,UZZ30199104

55715ABRACE, COWL TOP TO APRON, RH

main55715-24040iJZZ31,UZZ30199104

55716ABRACE, COWL TOP TO APRON, LH

main55716-24040iJZZ31,UZZ30199104

55719CBRACKET, WINDSHIELD WIPER MOTOR

main55719-24030iJZZ31,UZZ30199104

55734APLATE, WATER GUARD, RH

main55734-24040iJZZ31,UZZ30199104

55735APLATE, WATER GUARD, LH

main55735-24040iJZZ31,UZZ30199104

55738ASTOPPER, HOOD, RH

main55738-24020iJZZ31,UZZ30199104

55739ASTOPPER, HOOD, LH

main55739-24030iJZZ31,UZZ30199104

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-24060iJZZ31,UZZ30199104

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-24030iJZZ31,UZZ30199104

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-24010iJZZ31,UZZ30199104

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-24010iJZZ31,UZZ30199104

55950NOZZLE ASSY, DEFROSTER

main55951-24030iJZZ31,UZZ30199104

55953BNOZZLE, DEFROSTER, REAR

main55953-24020iJZZ31,UZZ30199104

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-24050iJZZ31,UZZ30199104-199205

main55971-24051iJZZ31,UZZ30199205

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-24030iJZZ31,UZZ30199104

56111GLASS, WINDSHIELD

main56111-24130iJZZ31,UZZ30199104-199212

*LAM,T=4.7,GRAY

main56111-24131iJZZ31,UZZ30199212-199608

*LAM,T=4.7,GRAY

main56111-24150iJZZ31,UZZ30199608

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56110-24010×2iJZZ31,UZZ30199104

9018305094

main90183-05094

9046706093

main90467-06093

9046710096

main90467-10096

9356055010

main93560-55010

9356855014

main93568-55014

26 parts on this diagram · 2 diagrams in section
