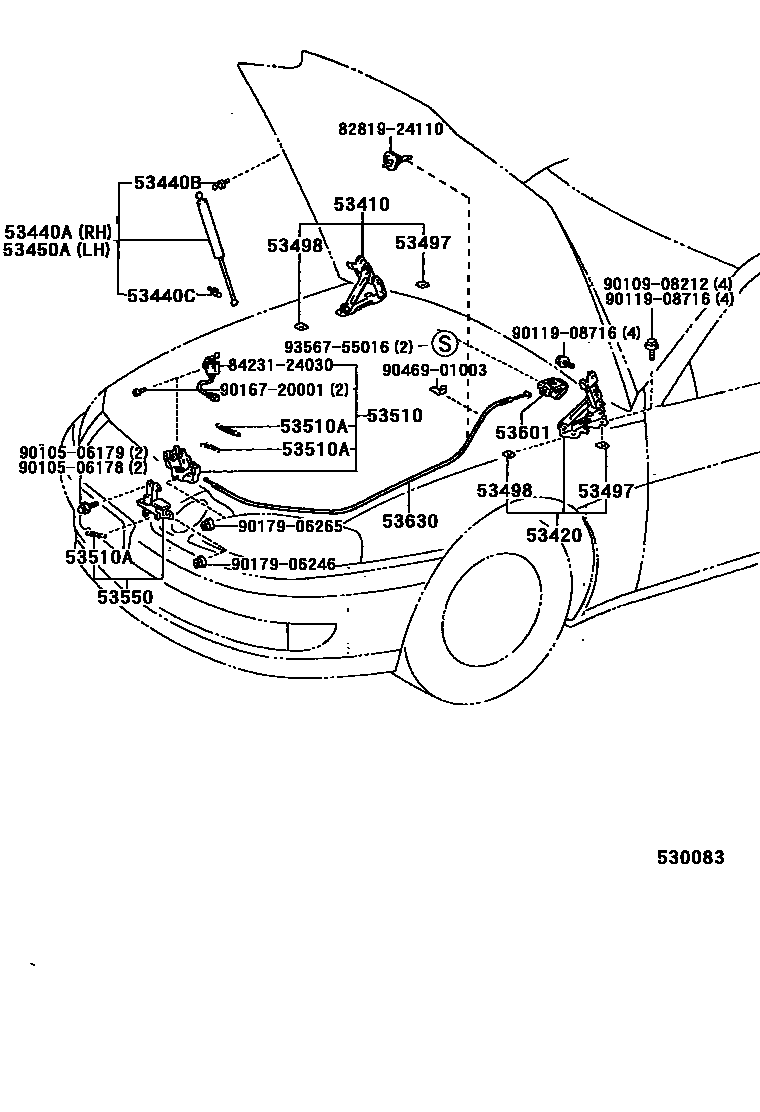

Toyota LEXUS SC300/400 — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53440CBOLT, HOOD SUPPORT, NO.2
53450ASUPPORT ASSY, HOOD, LH
53510ASPRING, TENSION(FOR HOOD LOCK)
53550HOOK ASSY, HOOD AUXILIARY CATCH
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
8281924110GROMMET, WIRING HARNESS
8423124030SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
9010506178
9010506179
9010908212
9011908716
9016720001
9017906246
9017906265
9046901003
9356755016
24 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota LEXUS SC300/400
This section contains 24 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota LEXUS SC300/400. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, BOLT, HOOD SUPPORT, NO.1, BOLT, HOOD SUPPORT, NO.2.
