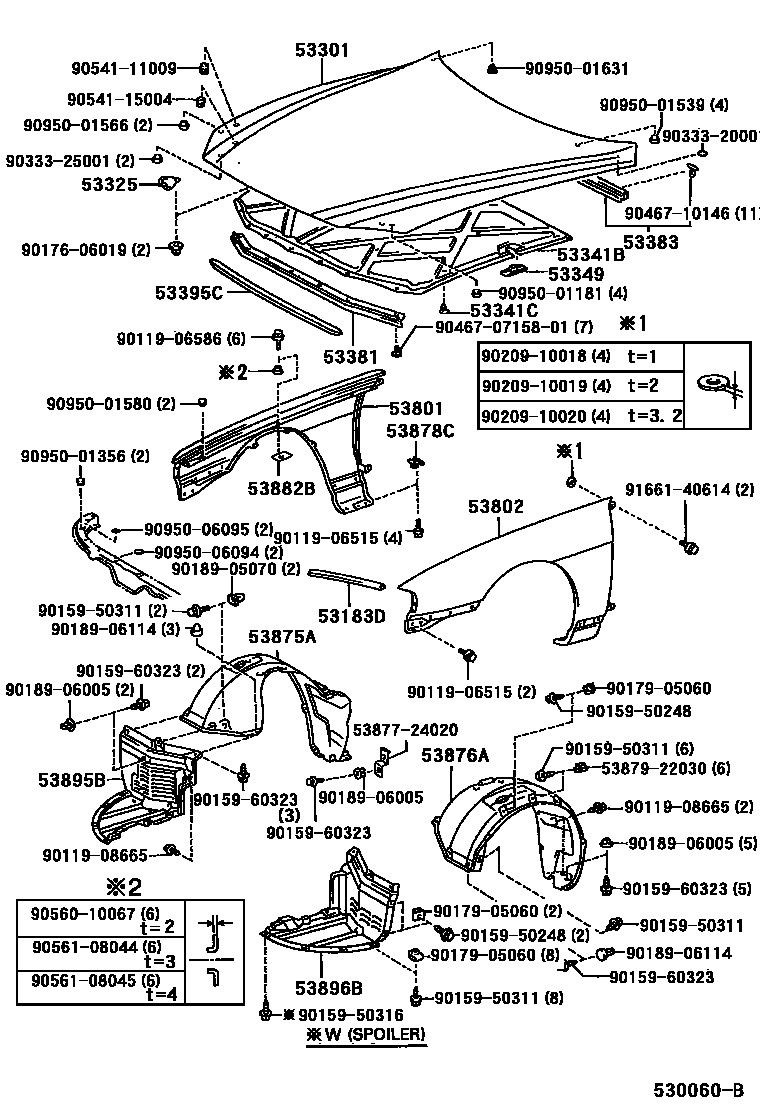

HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-24030iJZZ31,UZZ30199104

RH

main53184-24010iJZZ31,UZZ30199104

LH

53301HOOD SUB-ASSY

main53301-24030iJZZ31,UZZ30199104-199505

main53301-24031iJZZ31,UZZ30199505

53325REINFORCEMENT, HOOD LOCK HOOK, NO.2

main53325-24020iJZZ31,UZZ30199104

53341BINSULATOR, HOOD

main53341-24070iJZZ31,UZZ30199104-199505

main53341-24071iJZZ31,UZZ30199505

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iJZZ31,UZZ30199104

53349RETAINER, HOOD SILENCER

main53349-24020iJZZ31,UZZ30199104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-24030iJZZ31,UZZ30199104

53383SEAL, HOOD TO COWL TOP

main53383-24030iJZZ31,UZZ30199104

53395CSEAL, HOOD TO RADIATOR GRILLE

main53395-24010iJZZ31,UZZ30199104

53801FENDER SUB-ASSY, FRONT RH

main53801-24130iJZZ31,UZZ30199104-199411

main53801-24131iJZZ31,UZZ30199411-199603

main53801-24132iJZZ31,UZZ30199603

53802FENDER SUB-ASSY, FRONT LH

main53802-24130iJZZ31,UZZ30199104-199411

main53802-24131iJZZ31,UZZ30199411-199603

main53802-24132iJZZ31,UZZ30199603

53875ALINER, FRONT FENDER, RH

main53875-24030iJZZ31,UZZ30199104-199608

main53875-24060iJZZ31,UZZ30199608

53876ALINER, FRONT FENDER, LH

main53876-24030iJZZ31,UZZ30199104-199608

main53876-24050iJZZ31,UZZ30199608

53878CSPACER, FRONT FENDER

main53878-50010iJZZ31,UZZ30199104

53882BSEAL, FRONT FENDER, RH

main53882-16030iJZZ31,UZZ30199411

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-24010iJZZ31,UZZ30199104-199608

main53895-24020iJZZ31,UZZ30199608

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-24010iJZZ31,UZZ30199104-199608

main53896-24020iJZZ31,UZZ30199608

5387724020PLATE, FRONT FENDER MUDGUARD, LH

main53877-24020

5387922030LINER, FRONT FENDER, LH

main53879-22030

9011906515

main90119-06515

9011906586

main90119-06586

9011908665

main90119-08665

9015950248

main90159-50248

9015950311

main90159-50311

9015950316

main90159-50316

9015960323

main90159-60323

9017606019

main90176-06019

9017905060

main90179-05060

9018905070

main90189-05070

9018906005

main90189-06005

9018906114

main90189-06114

9020910018

main90209-10018

9020910019

main90209-10019

9020910020

main90209-10020

9033320001

main90333-20001

9033325001

main90333-25001

904670715801

main90467-0715801

9046710146

main90467-10146

9054111009

main90541-11009

9054115004

main90541-15004

9056010067

main90560-10067

9056108044

main90561-08044

9056108045

main90561-08045

9095001181

main90950-01181

9095001356

main90950-01356

9095001539

main90950-01539

9095001566

main90950-01566

9095001580

main90950-01580

9095001631

main90950-01631

9095006094

main90950-06094

9095006095

main90950-06095

9166140614

main91661-40614

52 parts on this diagram · 1 diagram in section
