SPARE WHEEL CARRIER

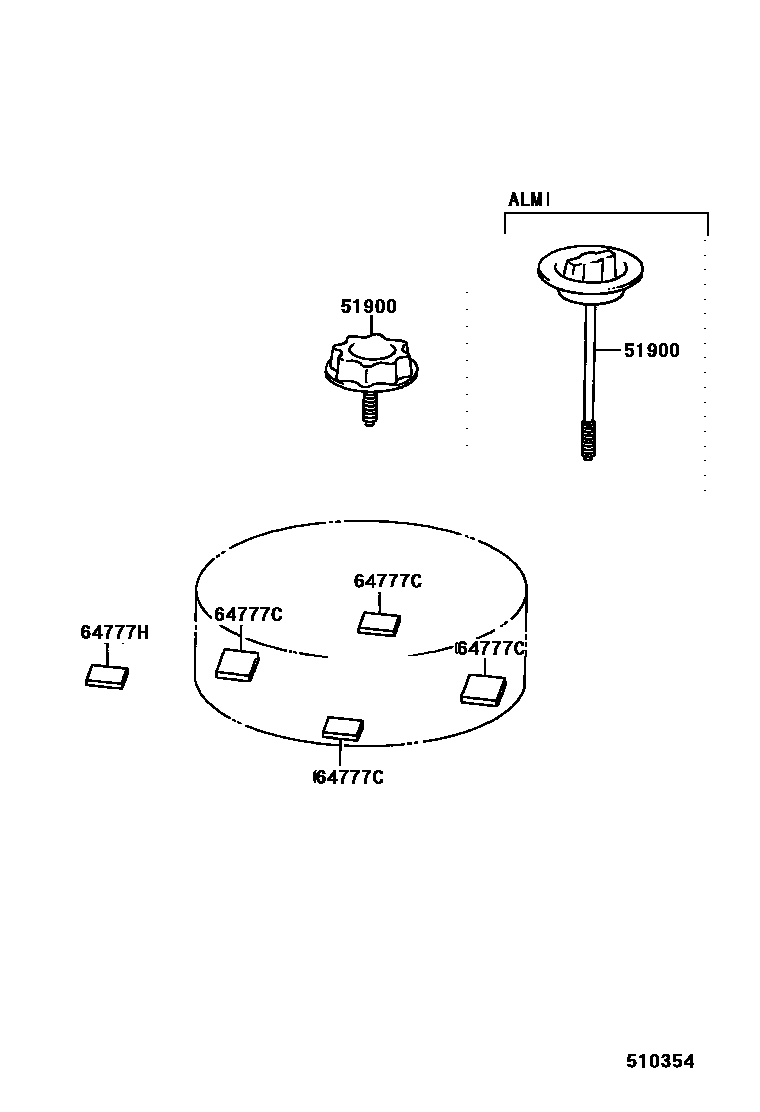

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-24040i199701-199709

W(225/55R16 TIRE)

main51931-24010i199104-199309

main51931-24020i199604-199608

W(ALMINIUM WHEEL)

main51931-24030i199401-199604

W(ALMINIUM WHEEL)

main51931-30010i199309-199311

main51931-30030i199311-199401

64777CCUSHION, SPARE WHEEL

main64777-24020×4i199108-199401

main64777-24040×4i199104-199401

64777HCUSHION, SPARE WHEEL

main64777-24040i199709

3 parts on this diagram · 1 diagram in section
