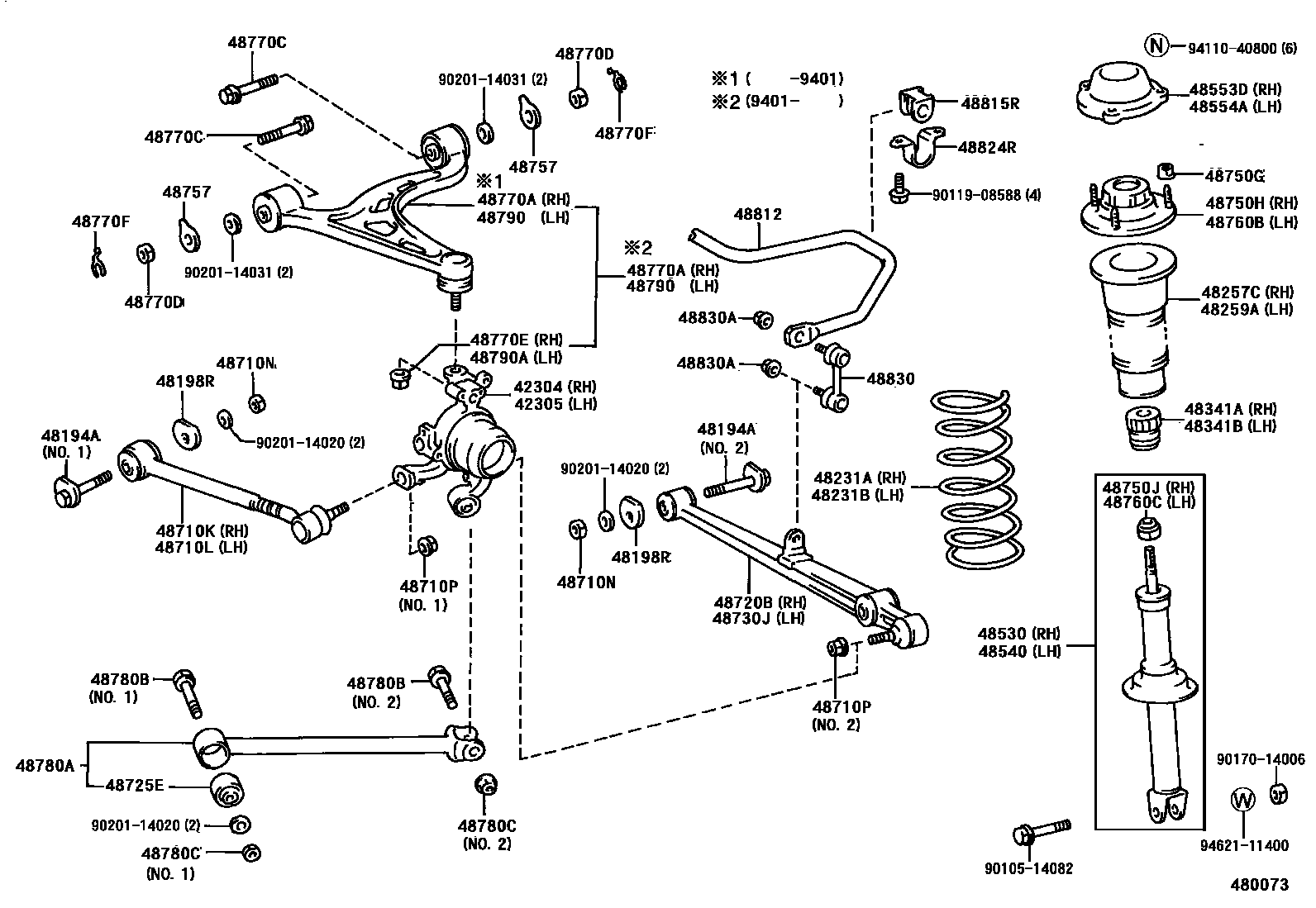

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-24020iJZZ31,UZZ30199104

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-24020iJZZ31,UZZ30199104

48194ACAM, REAR SUSPENSION CAMBER ADJUST, NO.1

main48190-22020iJZZ31,UZZ30199104-199302

NO.1

sub48190-22021

main48190-22021iJZZ31,UZZ30199302

NO.1

main48190-24030iJZZ31,UZZ30199104

NO.2

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-14010iJZZ31,UZZ30199104

sub48198-50011

48231ASPRING, COIL, REAR RH

main48231-24130iJZZ31199109-199401

main48231-24180iJZZ31,UZZ30199104-199608

main48231-24200iUZZ30199401-199608

main48231-24230iJZZ31199608

main48231-24240iUZZ30199608

48231BSPRING, COIL, REAR LH

main48231-24130iJZZ31199109-199401

main48231-24180iJZZ31,UZZ30199104-199608

main48231-24200iUZZ30199401-199608

main48231-24230iJZZ31199608

main48231-24240iUZZ30199608

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-24010iJZZ31,UZZ30199104

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-24010iJZZ31,UZZ30199104

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-24040iJZZ31,UZZ30199104-199401

main48341-24070iJZZ31,UZZ30199401-199502

sub48341-24071

main48341-24071iJZZ31,UZZ30199502

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-24040iJZZ31,UZZ30199104-199401

main48341-24070iJZZ31,UZZ30199401-199502

sub48341-24071

main48341-24071iJZZ31,UZZ30199502

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-29205iJZZ31,UZZ30199104-199608

main48530-29555iJZZ31,UZZ30199608

sub48530-29545

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-29205iJZZ31,UZZ30199104-199608

main48530-29555iJZZ31,UZZ30199608

sub48530-29545

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-24090iJZZ31,UZZ30199104-199608

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-24090iJZZ31,UZZ30199104-199608

48710KARM ASSY, REAR LOWER CONTROL, RH NO.2

main48710-24010iJZZ31,UZZ30199104

sub48710-24020

48710LARM ASSY, REAR LOWER CONTROL, LH NO.2

main48710-24010iJZZ31,UZZ30199104

sub48710-24020

48710NNUT, NO.1(FOR REAR LOWER CONTROL ARM)

main90170-14012iJZZ31,UZZ30199104

48710PNUT, NO.2(FOR REAR LOWER CONTROL ARM)

main90179-12027iJZZ31,UZZ30199104

NO.2

main90179-14012iJZZ31,UZZ30199104

NO.1

48720BARM ASSY, REAR LOWER CONTROL, RH NO.1

main48720-24030iJZZ31,UZZ30199108-199109

sub48730-30040

main48720-29015iUZZ30199104-199108

sub48720-24030

main48730-30040iJZZ31,UZZ30199109-199508

sub48730-30060

main48730-30060iJZZ31,UZZ30199508

48725EBUSH, REAR STRUT ROD

main48725-24070iJZZ31,UZZ30199104-199608

main48725-24080iJZZ31,UZZ30199608

48730JARM ASSY, REAR LOWER CONTROL, LH NO.1

main48730-24030iJZZ31,UZZ30199108-199109

sub48740-30060

main48730-29015iUZZ30199104-199108

sub48730-24030

main48740-30060iJZZ31,UZZ30199109-199508

sub48740-30070

main48740-30070iJZZ31,UZZ30199508

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08087iJZZ31,UZZ30199104-199305

main90179-08235iJZZ31,UZZ30199305

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-24070iJZZ31,UZZ30199104-199305

sub48750-24071

main48750-24071iJZZ31,UZZ30199305-199506

sub48750-24072

main48750-24072iJZZ31,UZZ30199506

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iJZZ31,UZZ30200003

main94187-11200iJZZ31,UZZ30199104-200003

sub90177-12002

48757ATTACHMENT, REAR SUSPENSION ARM

main48757-24010iJZZ31,UZZ30199104

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-24070iJZZ31,UZZ30199104-199305

sub48750-24071

main48750-24071iJZZ31,UZZ30199305-199506

sub48750-24072

main48750-24072iJZZ31,UZZ30199506

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iJZZ31,UZZ30200003

main94187-11200iJZZ31,UZZ30199104-200003

sub90177-12002

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-19025iUZZ30199401-199808

main48770-19035iJZZ31199401-199501

sub48770-19025

main48770-24010iJZZ31199108-199401

sub48770-30020

main48770-24020iUZZ30199104-199401

sub48770-30020

main48770-24050iJZZ31199608-199808

48770CBOLT(FOR REAR UPPER CONTROL ARM)

main90119-14040iJZZ31,UZZ30199104

48770DNUT(FOR REAR UPPER CONTROL ARM)

main90179-14054iJZZ31,UZZ30199104

48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)

main90179-14015iJZZ31,UZZ30199104-199808

48770FRING, E(FOR REAR UPPER CONTROL ARM)

main90523-16001iJZZ31,UZZ30199104

48780AROD ASSY, STRUT, REAR

main48780-24030iJZZ31,UZZ30199104-199608

main48780-24040iJZZ31,UZZ30199608

48780BBOLT(FOR STRUT ROD)

main90105-14065iJZZ31,UZZ30199104

NO.1

main90119-14042iJZZ31,UZZ30199104

NO.2

48780CNUT(FOR STRUT ROD)

main90170-14012iJZZ31,UZZ30199104

NO.1

main90179-14037iJZZ31,UZZ30199104-199111

NO.2

main90179-14045iJZZ31,UZZ30199111

NO.2

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-19025iUZZ30199401-199808

main48790-19035iJZZ31199401-199501

sub48790-19025

main48790-24010iJZZ31199108-199401

sub48790-30020

main48790-24020iUZZ30199104-199401

sub48790-30020

main48790-24050iJZZ31199608-199808

48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)

main90179-14015iJZZ31,UZZ30199104

48812BAR, STABILIZER, REAR

main48812-24070iJZZ31,UZZ30199104-199608

main48812-24100iJZZ31,UZZ30199608

48815RBUSH, STABILIZER(FOR REAR)

main48815-24070iJZZ31,UZZ30199104-199401

sub48815-24071

main48815-24071iJZZ31,UZZ30199401-199608

main48818-24030iJZZ31,UZZ30199608

48824RBRACKET, STABILIZER(FOR REAR)

main48824-50010iJZZ31,UZZ30199104

48830LINK ASSY, REAR STABILIZER

main48830-24010iJZZ31,UZZ30199104

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iJZZ31,UZZ30199104

9010514082

main90105-14082

9011908588

main90119-08588

9017014006

main90170-14006

9020114020

main90201-14020

9020114031

main90201-14031

9411040800

main94110-40800

9462111400

main94621-11400

49 parts on this diagram · 1 diagram in section
