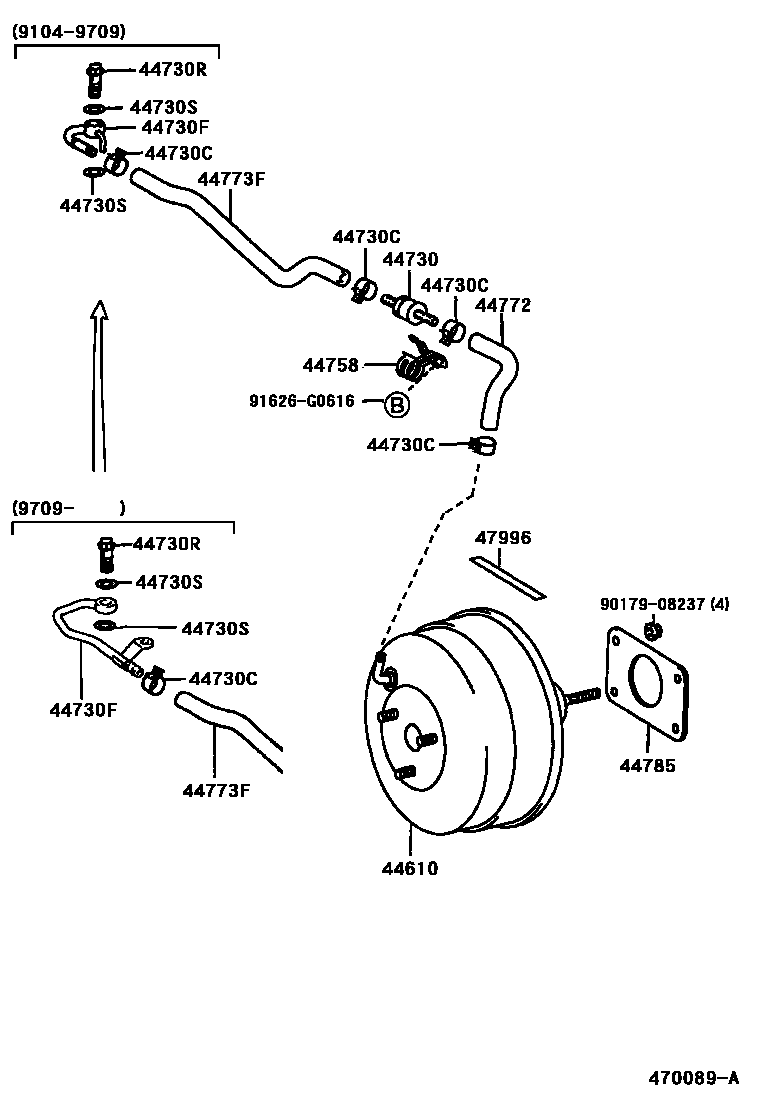

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-24070iJZZ31199108-199401

main44610-24080iUZZ30199104-199401

main44610-24090iJZZ31..5F199401-199808

main44610-24100iJZZ31,UZZ30199401-199809

main44610-24110iJZZ31..4FC199608-199808

W(TRACTION CONTROL)

main44610-24120iJZZ31,UZZ30199608-199808

W(TRACTION CONTROL)

main44610-24130iJZZ31,UZZ30199809

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-24020iJZZ31,UZZ30199104

44730CCLIP(FOR VACUUM HOSE)

main90467-16017iJZZ31,UZZ30199104

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09152iUZZ30199104-199709

main90405-09153iJZZ31199108

main90904-05005iUZZ30199709

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iJZZ31,UZZ30199104

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005iJZZ31,UZZ30199104

44758BRACKET, VACUUM CHECK VALVE

main44758-24050iUZZ30199104

main44758-24060iJZZ31199108

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-24050iUZZ30199104

main44772-24060iJZZ31199108

44773FHOSE, UNION TO CHECK VALVE

main44773-24030iJZZ31199108

main44773-24040iUZZ30199104-199709

main44773-24041iUZZ30199709

44785GASKET, BRAKE BOOSTER

main44785-14020iJZZ31,UZZ30199305

main44785-24010iJZZ31,UZZ30199104-199305

47996LABEL, BRAKE BLEED NOTICE

main47996-50010iJZZ31,UZZ30..4FC199104-199608

main47996-50030iJZZ31,UZZ30..ATM199608

9017908237

main90179-08237

91626G0616

main91626-G0616

13 parts on this diagram · 1 diagram in section
