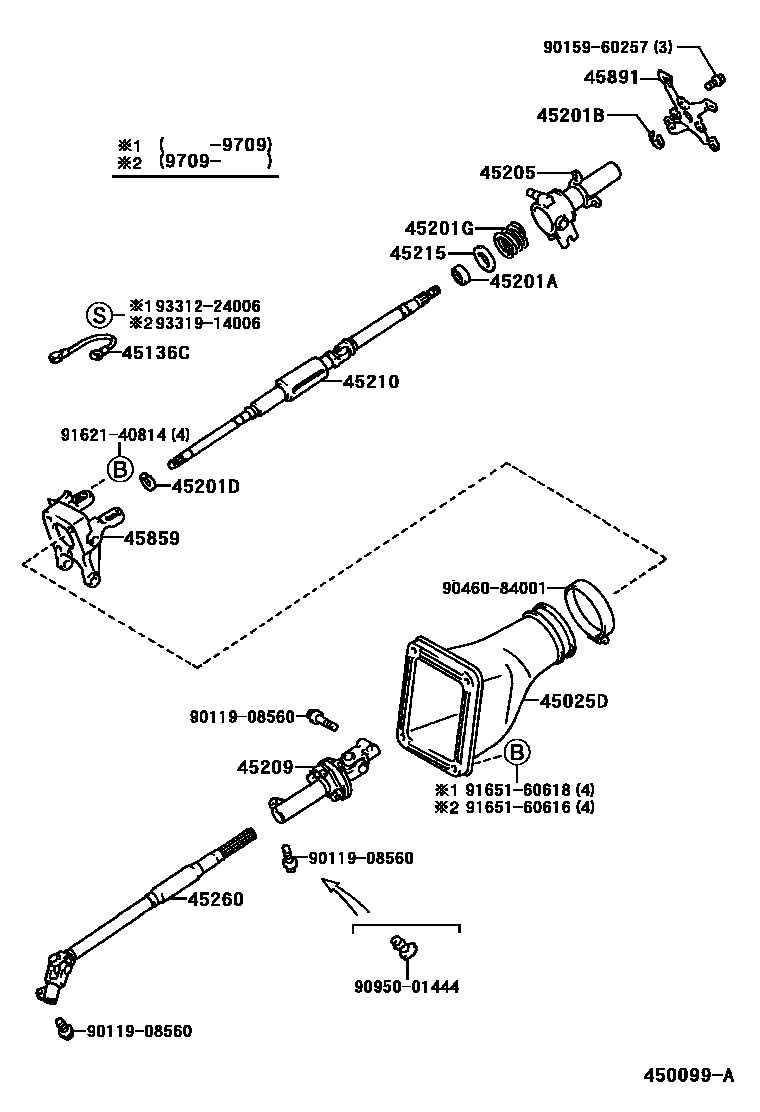

STEERING COLUMN & SHAFT

0001 1W(LEATHER TYPE STEERING WHEEL0003 1W(LEATHER TYPE STEERING WHEEL0005 1 0006 1 0007 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-24030iJZZ31,UZZ30199104

45136CCABLE, BOND(FOR HORN EARTH)

main45832-41010iJZZ31,UZZ30199503

main90980-07312iJZZ31,UZZ30199104-199503

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iJZZ31,UZZ30199104

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJZZ31,UZZ30199104

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-16004iJZZ31,UZZ30199104

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iJZZ31,UZZ30199104

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-24040iJZZ31199108-199206

main45205-24041iJZZ31199206-199406

main45205-24052iJZZ31199406

main45205-50010iJZZ31,UZZ30199104-199603

W(POWER TILT & POWER TELESCOPIC STEERING)

main45205-50011iJZZ31,UZZ30..4FC,5F199608

W(POWER TILT & POWER TELESCOPIC STEERING)

main45205-50011iUZZ30199709

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14070iJZZ31,UZZ30199305

main45209-24020iJZZ31,UZZ30199104-199305

45210SHAFT ASSY, STEERING MAIN

main45210-24020iJZZ31,UZZ30199401

main45210-24030iJZZ31,UZZ30199104-199401

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iJZZ31,UZZ30199104

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-24080iJZZ31,UZZ30199104

45859SUPPORT, TILT STEERING HOUSING

main45859-50010iJZZ31,UZZ30199104

45891BRACKET, TURN SIGNAL

main45891-24020iJZZ31,UZZ30199104

9011908560

main90119-08560

9015960257

main90159-60257

9046084001

main90460-84001

9095001444

main90950-01444

9162140814

main91621-40814

9165160616

main91651-60616

9165160618

main91651-60618

9331224006

main93312-24006

9331914006

main93319-14006

22 parts on this diagram · 5 diagrams in section
