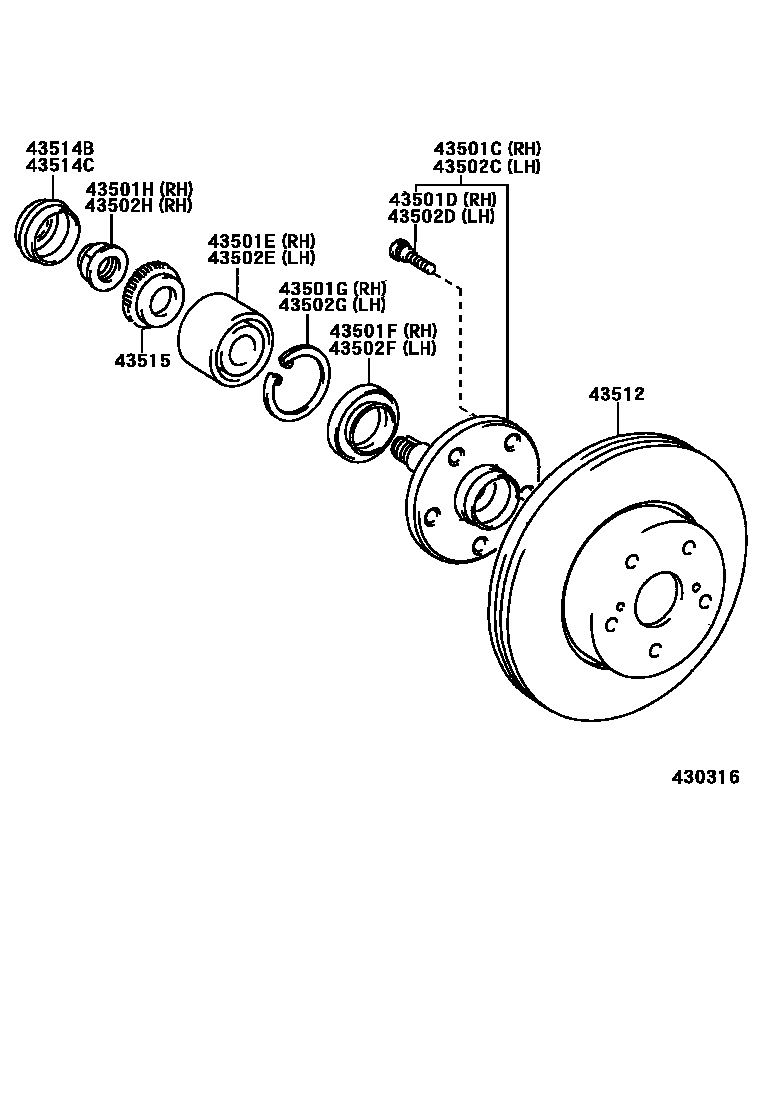

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-24011iUZZ30199104-199108

main43502-30140iJZZ31,UZZ30199108

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iUZZ30199104-199108

main90942-02070×5iJZZ31,UZZ30199108

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-35034iJZZ31,UZZ30199104-199310

main90903-63006iJZZ31,UZZ30199310

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50008iJZZ31,UZZ30199104

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001iJZZ31,UZZ30199104

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-24005iJZZ31,UZZ30199104

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-24011iUZZ30199104-199108

main43502-30140iJZZ31,UZZ30199108

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iUZZ30199104-199108

main90942-02070×5iJZZ31,UZZ30199108

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-35034iJZZ31,UZZ30199104-199310

main90903-63006iJZZ31,UZZ30199310

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50008iJZZ31,UZZ30199104

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001iJZZ31,UZZ30199104

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-24005iJZZ31,UZZ30199104

43512DISC, FRONT

main43512-24041×2iJZZ31199108-199808

main43512-24051×2iUZZ30199104-199808

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-24010iJZZ31,UZZ30199104

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-24010iJZZ31,UZZ30199104

43515ROTOR, SKID CONTROL, FRONT

main43515-24010×2iJZZ31,UZZ30199104

16 parts on this diagram · 1 diagram in section
