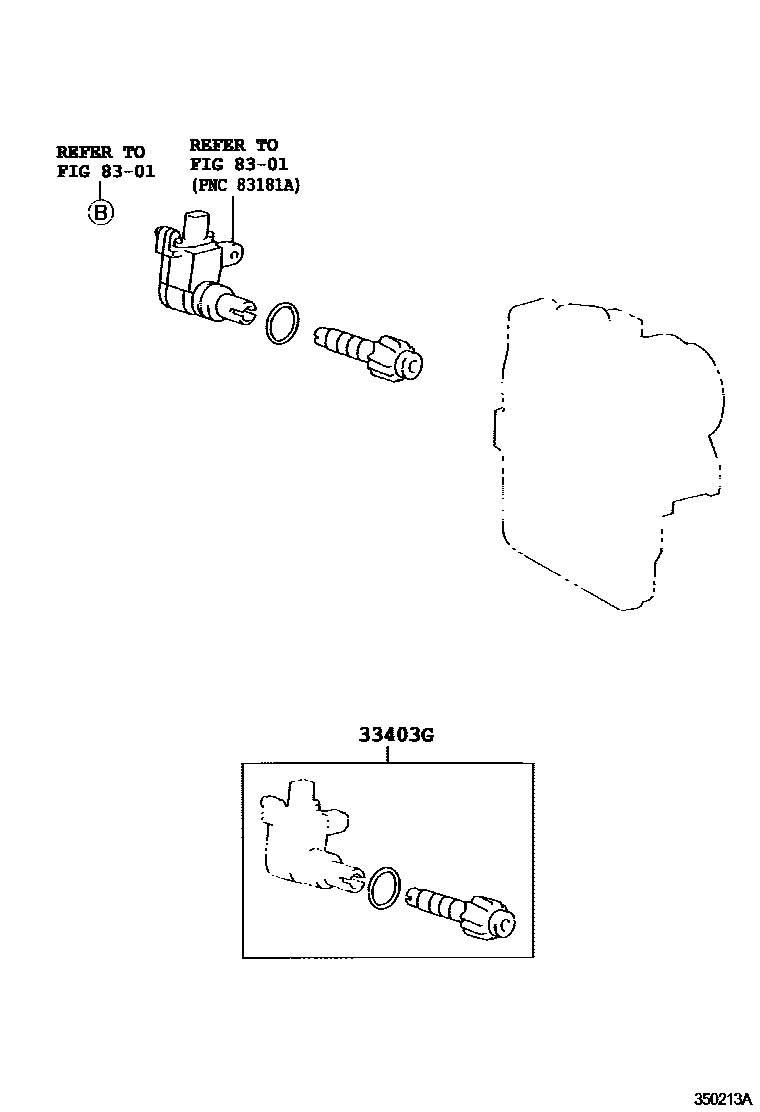

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E 0002 1A340E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29215iJZZ31..4FC199108-199401

N=21,MARK 21:6

main33482-39415iJZZ31..4FC199401-199709

N=20,MARK 20:6

main33482-59025iUZZ30199104-199709

N=18,MARK 18:6

8301METER

→ Go to FIG 83-01

2 parts on this diagram · 2 diagrams in section
